1401-0030
Model: 1401RS

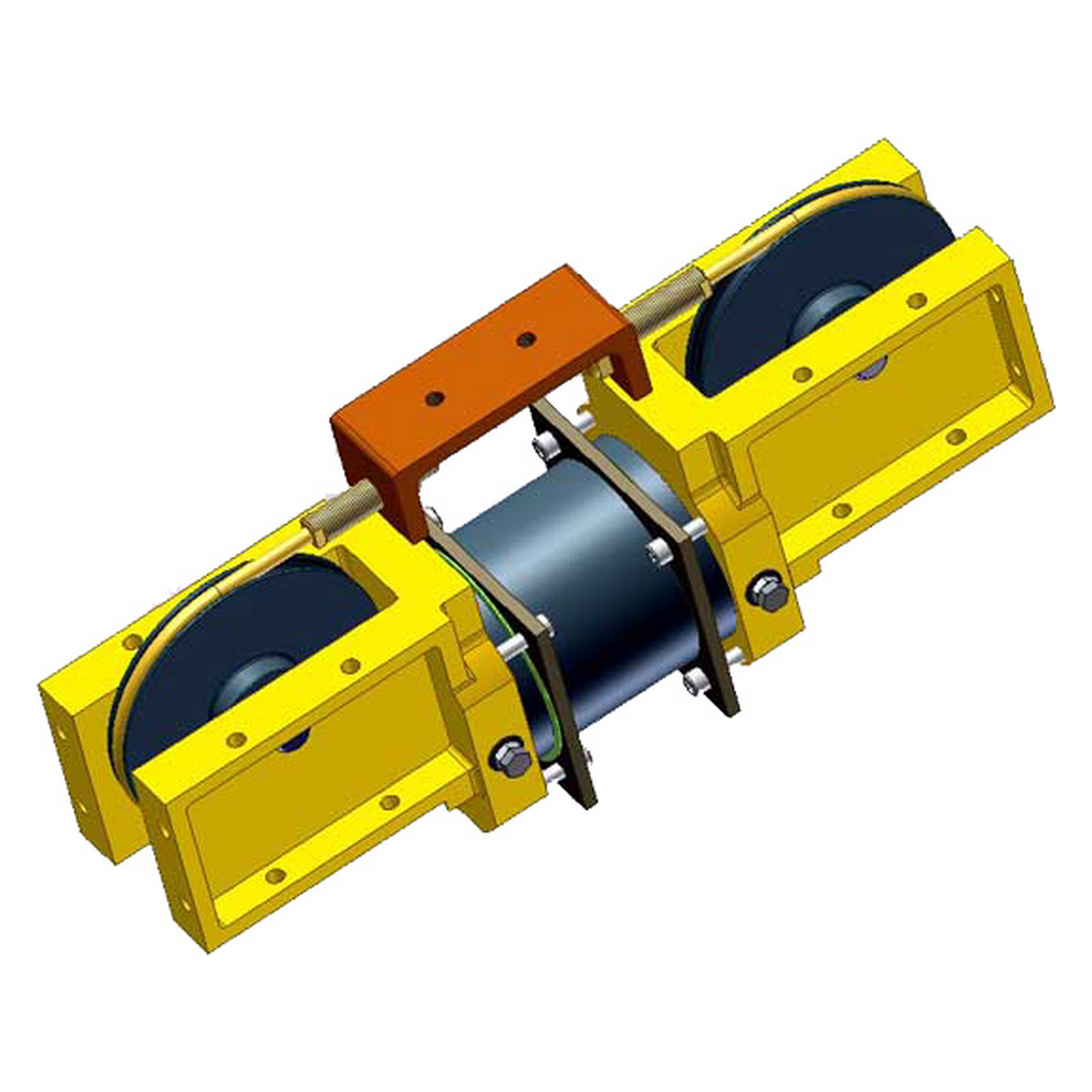

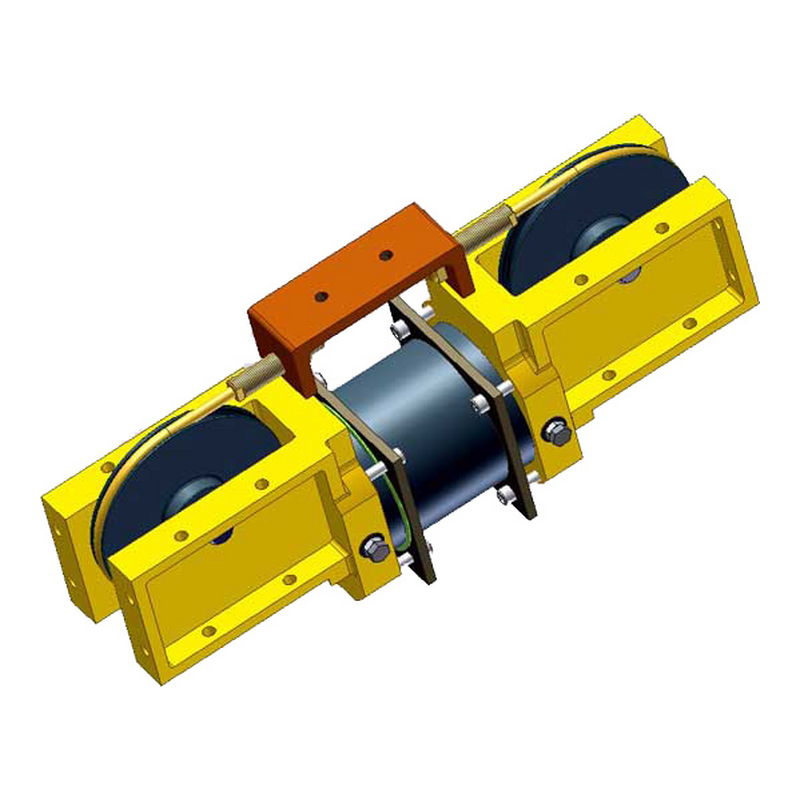

Double Acting Cable Cylinder with power stroke in both directions, 4.0 inch bore w/ (2) normally open reed switches.
- Maximum pressure: 100 PSI
- Operating temperature range: 20º to 140º F.
- Adjustable cushions
- Mounting interchangeable with T-O-M Brand Model CC40
Attributes
| Model # | 1401RS |
| Bore, in. | 4.0 |
| Eff. Area, in.sq | 12.49 |
| Force@100 PSI, lbs. | 1249 |
| Option(s) | Reed Switches |
