1707-00AB-01.50

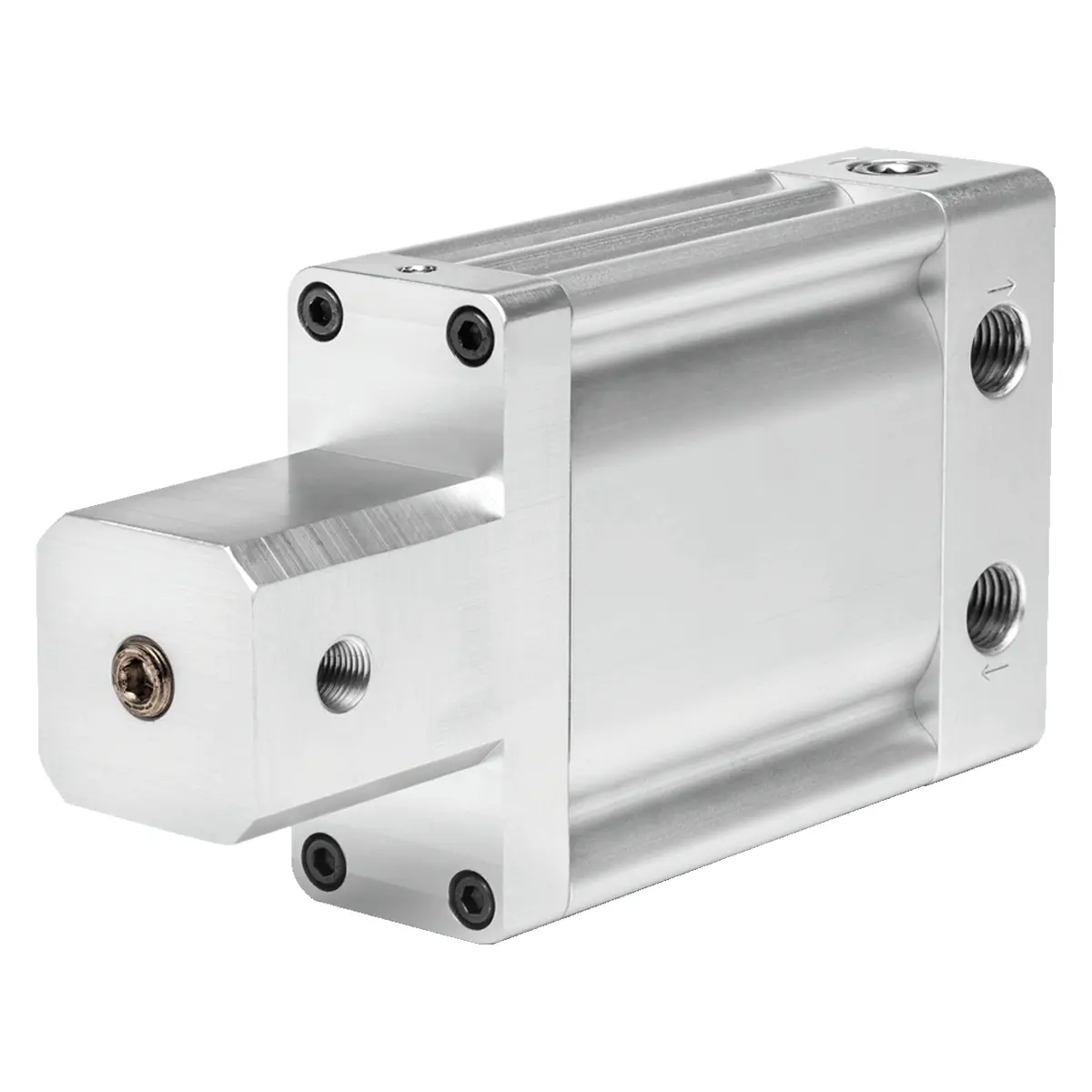

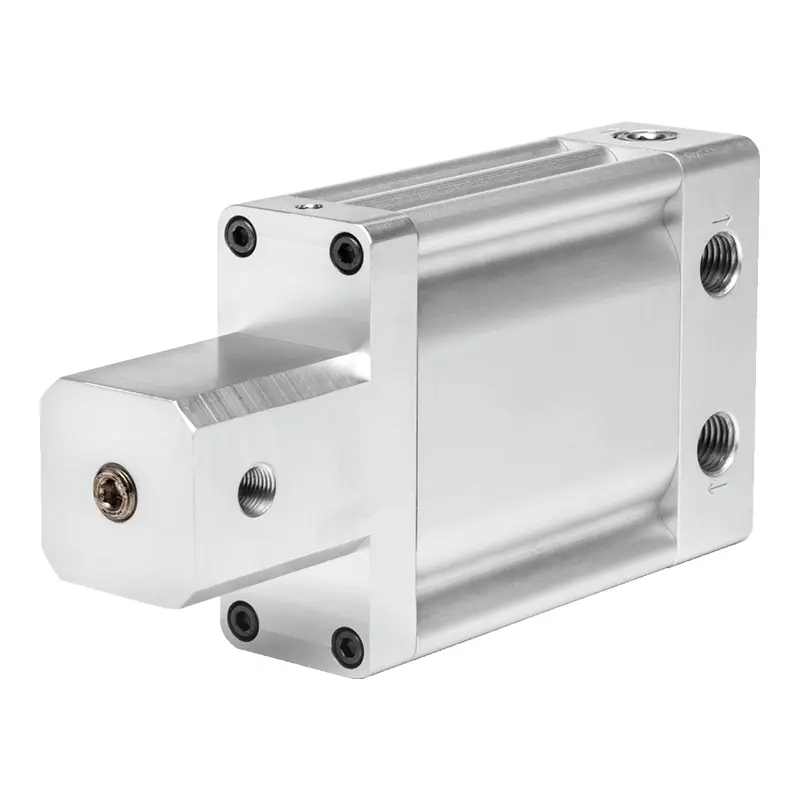

Model: OVLBOOST™ 44 - 1.50 in. Stroke Air/Oil Intensifier, Single End Side Porting, 7.8:1 Ratio
ATTRIBUTES:
- 7.8:1 RATIO
- 100 PSI MAX AIR PRESSURE
- SINGLE END SIDE PORTING
- PNEUMATIC DUAL ACTING
- 5/8 DIA. CHROME HYDRAULIC ROD
- 1.5 INCH STROKE
- .460 CU-IN HYDRAULIC DISPLACEMENT
Estimated Lead-Time: 5-7 business days ARO @ Qty < 4 pcs.
Attributes
| Model | OVB44AB1.5 |
| Description | Intensifier |
| Hyd. Fluid Displacement | .460 cu.in. / Stroke |
| Max Input Pressure | 100 psi |
| Max Output Pressure | 780 psi |
| Port Location | Side |
| Seals | Buna-N |
| Stroke (in.) | 1.50 |
