4006-0055
Model: FS580SO

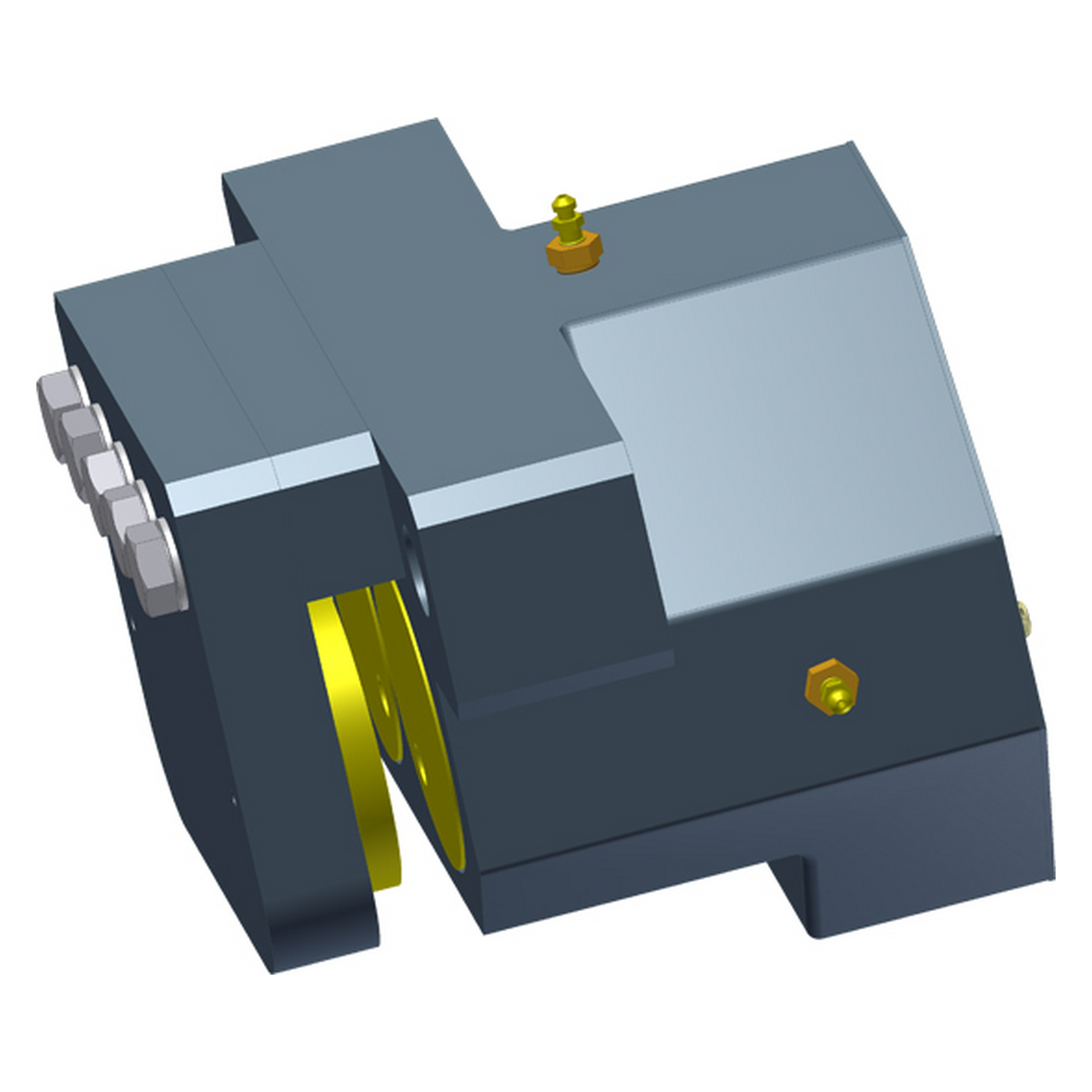

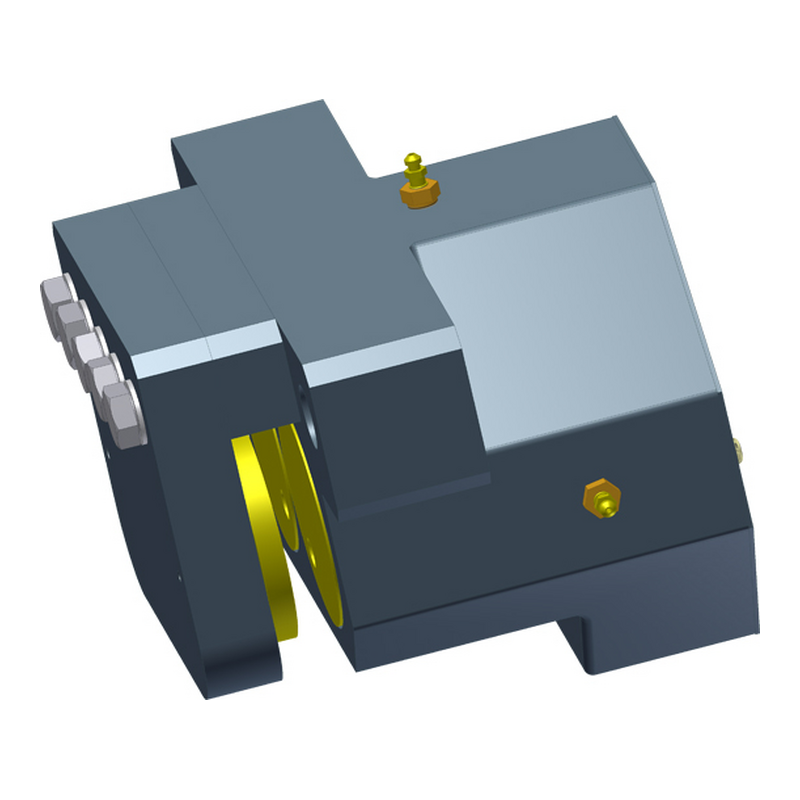

580 Series, Dual Bore, Hydraulic Spring Applied Single Acting Caliper Disc Brake. Sized for 1.0 inch Thick Brake Disc.
- Cast Aluminum Construction
- Hardcoated Housings
- 625 PSI Release Pressure
- 1000 PSI Maximum Pressure
- Dual Bore, Dual Belleville Disc Spring Stack
- Fits on Brake Discs from 16 inch Diameter and Larger
- .45 coefficient of friction #951023
- Buna N Seals
- Non-Asbestos Friction Material
- 6,419 lb. Maximum Tangential Force
- 83,659 in. lb. Braking Torque using 30 inch Diameter Brake Disc
- 14,264 lb. Clamping Force
| Additional Info | Dual Piston. Spring Applied 625 PSI Release |
| Description | Single Acting, Floating Mount. Use Fixed Disc |
| Disc Thick. (in.) | 1.0 |
| Model # | FS580SO |
| Tangential Force | 6419 lbf, 28,565 N |
