FS581
Dual Bore Hydraulic Spring Applied Brake
Salient Characteristics
- 1500 PSI release pressure | Single Acting Dual Belleville Disc Spring Stack | 6,419 lb. Tangential Force at zero friction pad wear | 14,264 lb. of Clamping Force | 83,659 in. lbs. F. braking torque using 30-inch disc diameter at maximum tangential force | 28.12 sq. in. total friction pad area | Sized for brake discs ranging from 16-inch diameter to unlimited.
Engineering note: Spring applied brakes are intended for use as an emergency stop or static holding device. It is not suggested to use in continuous slip applications as torque capacity is directly related to friction pad wear. Consult Factory.
Click image to enlarge

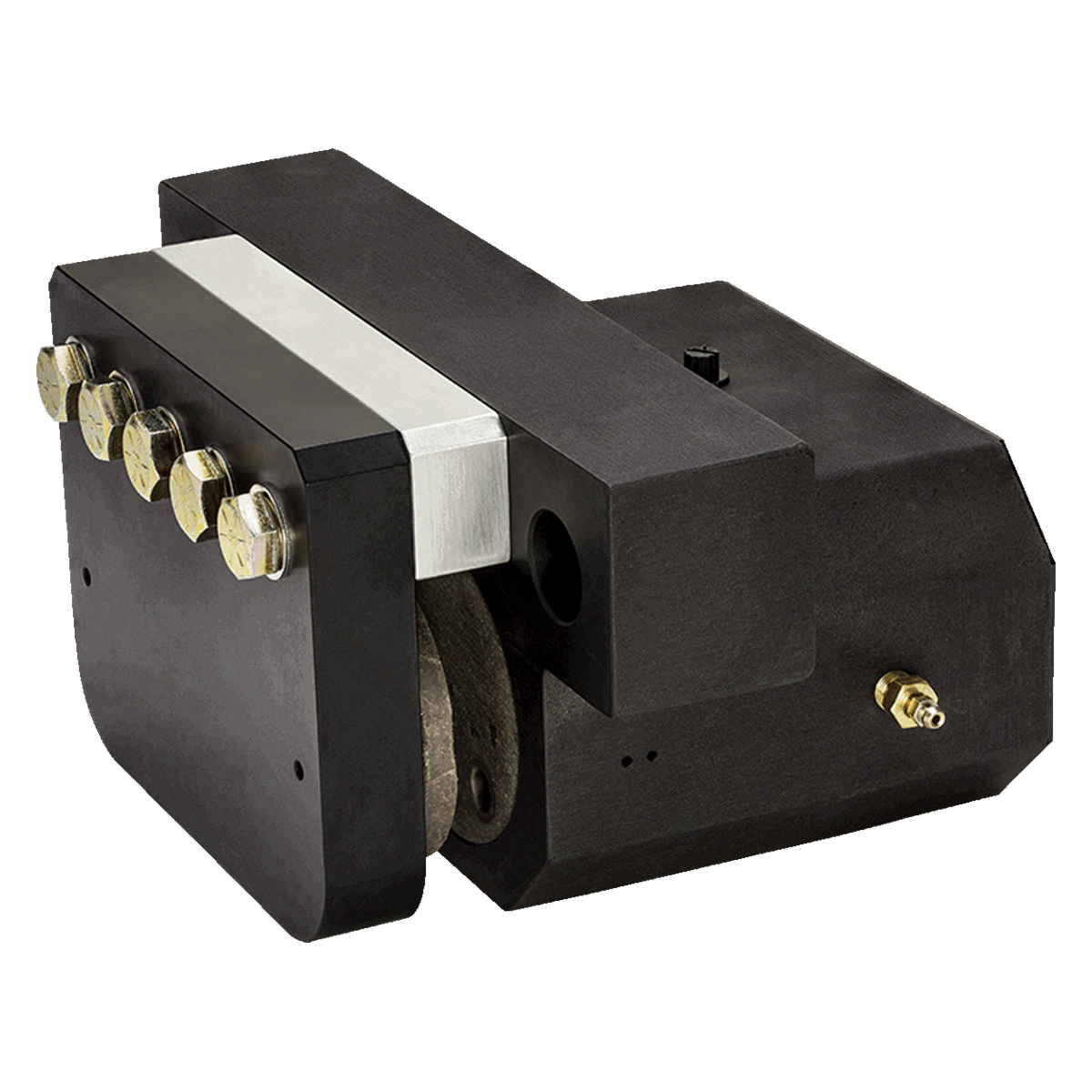

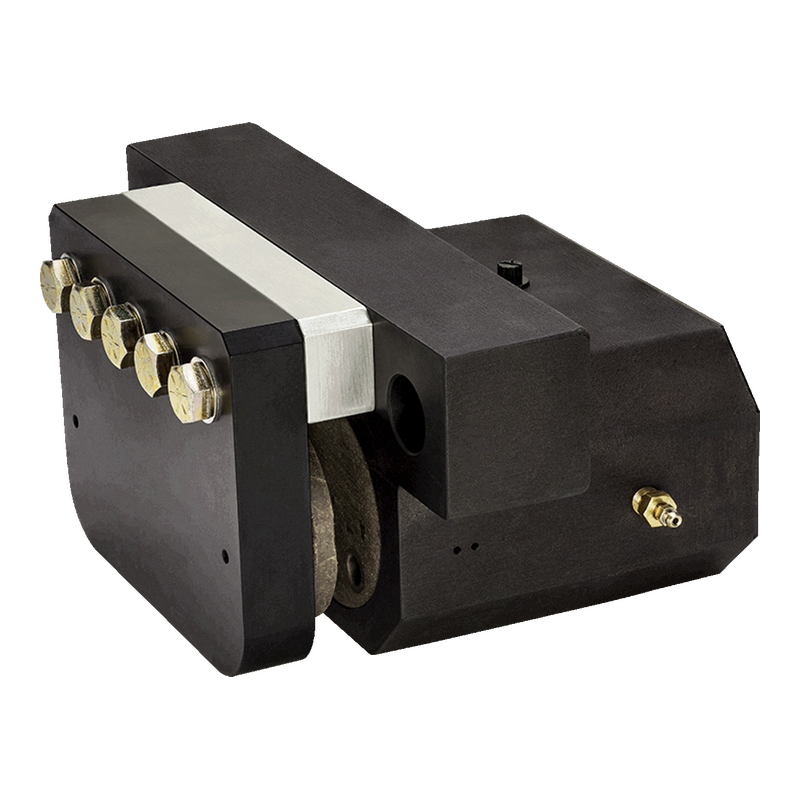

FS581S Dual Bore Series
Product # | Model # | Description | Additional Info | Disc Thick. (in.) | Tangential Force | Unit Weight (lb.)/(kg.) | |
---|---|---|---|---|---|---|---|
4006-0058 | FS581SB | Single Acting, Floating Mount. Use Fixed Disc | Dual Piston. Spring Applied 1500 PSI Release | 1/4 | 6419 lbf, 28,565 N | 27.8 / 12.64 | |
4006-0059 | FS581SL | Single Acting, Floating Mount. Use Fixed Disc | Dual Piston. Spring Applied 1500 PSI Release | 3/8 | 6419 lbf, 28,565 N | 27.8 / 12.64 | |
4006-0060 | FS581SE | Single Acting, Floating Mount. Use Fixed Disc | Dual Piston. Spring Applied 1500 PSI Release | 1/2 | 6419 lbf, 28,565 N | 27.8 / 12.64 | |
4006-0061 | FS581SJ | Single Acting, Floating Mount. Use Fixed Disc | Dual Piston. Spring Applied 1500 PSI Release | 5/8 | 6419 lbf, 28,565 N | 27.8 / 12.64 | |
4006-0062 | FS581ST | Single Acting, Floating Mount. Use Fixed Disc | Dual Piston. Spring Applied 1500 PSI Release | 3/4 | 6419 lbf, 28,565 N | 27.8 / 12.64 | |
4006-0063 | FS581SO | Single Acting, Floating Mount. Use Fixed Disc | Dual Piston. Spring Applied 1500 PSI Release | 1.0 | 6419 lbf, 28,565 N | 28.2 / 12.82 | |
4006-0064 | FS581SQ | Single Acting, Floating Mount. Use Fixed Disc | Dual Piston. Spring Applied 1500 PSI Release | 1-1/8 | 6419 lbf, 28,565 N | 28.2 / 12.82 |
