Model: M200BF

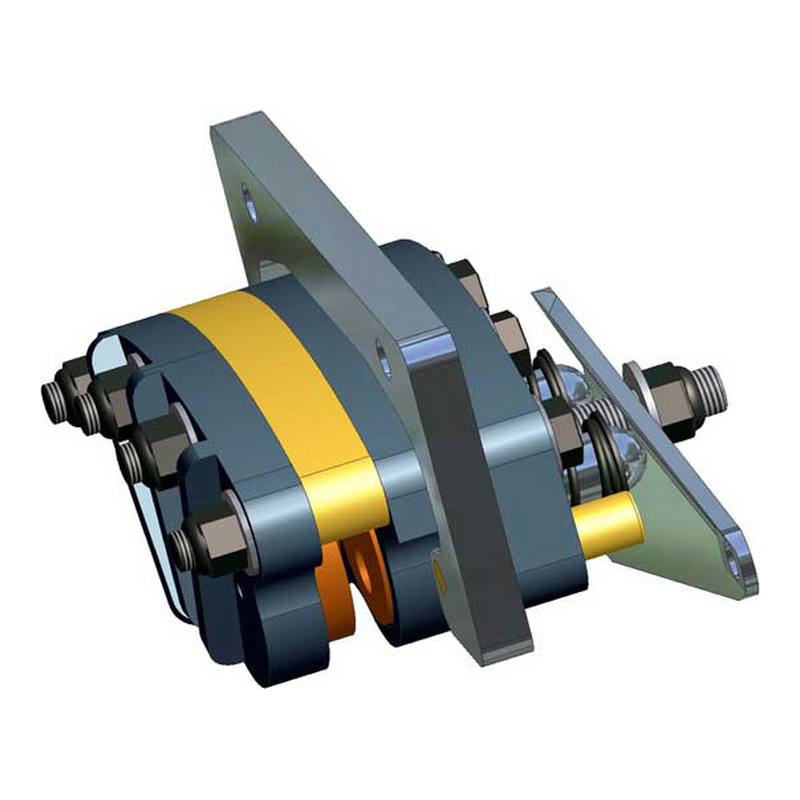

200 series, mechanical single acting caliper disc brake w/ floating bracket, sized for 1/4 inch thick brake disc.

  • Aluminum Construction
  • Hardcoated
  • Fits on Brake Discs up to 16 inches
  • Adjustable Nut for Pad Wear
  • Replaceable Friction Pads (WCB p/n 4000-1052)
  • Non-Asbestos Friction Material
  • Dynamic torque (inch/lb) 7.45 x Lever Force (lb.) x braking radius

Cam Lever Travel Data:

  • Gap between friction pad faces and disc when new = .048" total.
  • Angular movement of lever required to actuate brake when new = 7º 30'.
  • Maximum axial movement without intermediate adjustment = .387".
  • .208" total wear allowed before adjustment of each side.
  • Power Factor: M38F and M47F Series 1X, 200 Series 3.5X


DescriptionSingle Acting, Floating Mount. Use Fixed Disc
Additional InfoDual Spring Retractable Pistons
Disc Thick. (in.)1/4
Lever Force (lb.)580
Max. Disc Diameter, in.16
Housing MaterialAluminum, Hardcoated
Bolt TypeGrade 8 Zinc Plated
Lever/CamStamped, heat treated one piece lever/cam
Total Pad Area8.00 sq. in.
Wearable Friction Material1.66 cu. in.
