4004-0134

Model: M47MA

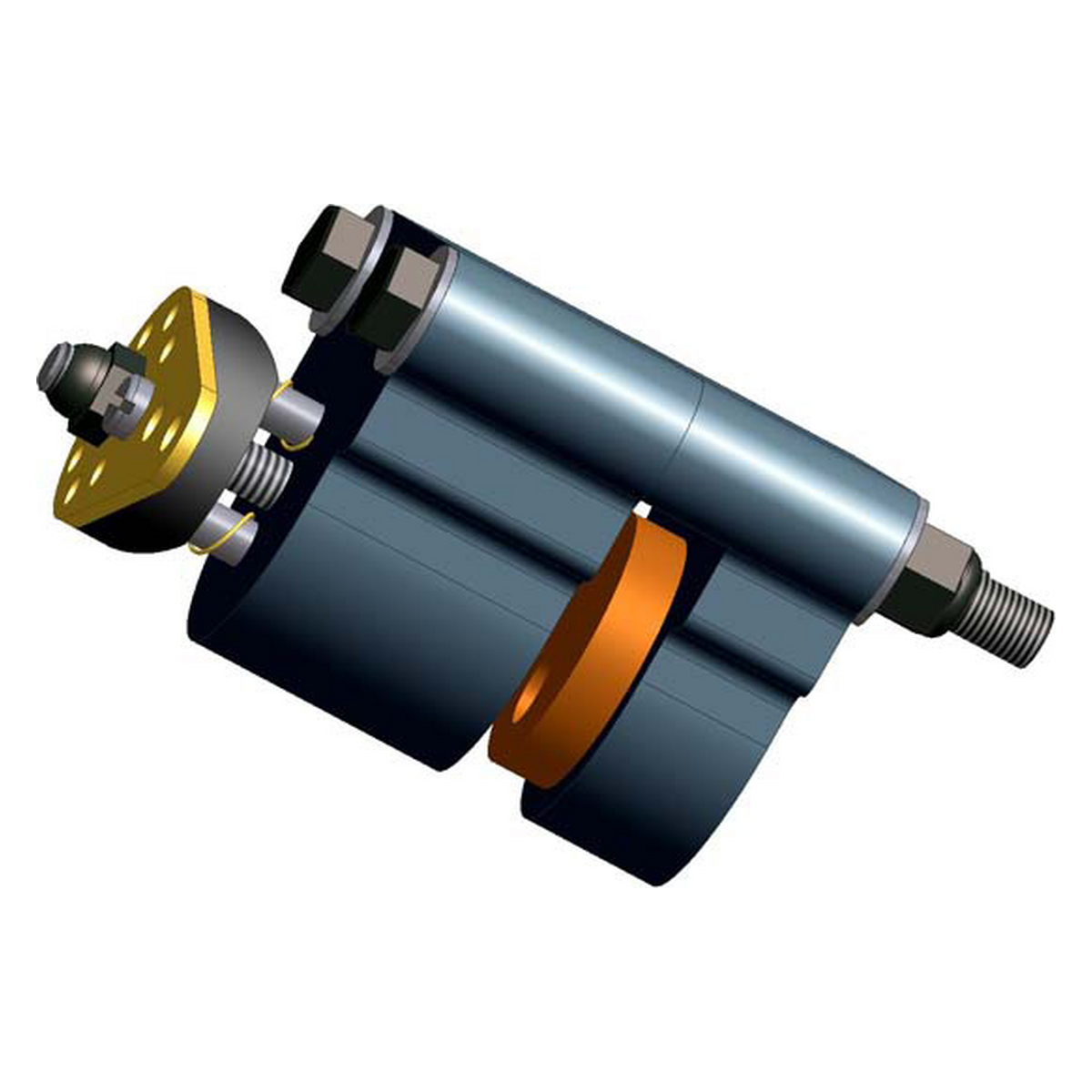

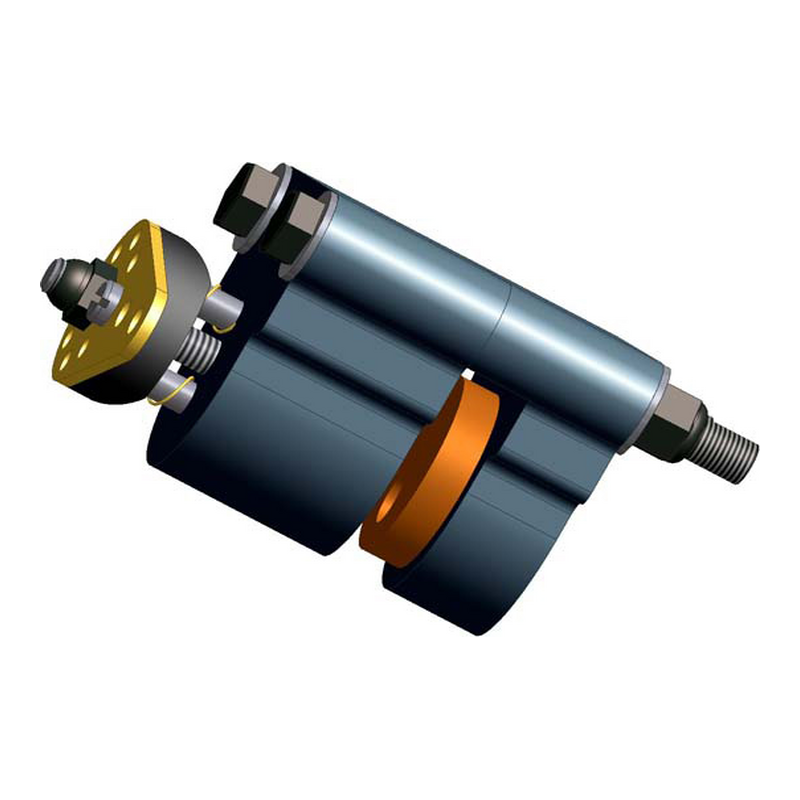

47 series, mechanical single acting caliper disc brake sized for 5/32 inch thick brake disc.

  • Aluminum Construction
  • Hardcoated
  • Fits on Brake Discs with Unlimited Diameter
  • Adjustable Nut for Pad Wear
  • Replaceable Friction Pads (WCB p/n 4000-1052)
  • Non-Asbestos Friction Material
  • Dynamic torque (inch/lb) 2.69 x Lever Force (lb.) x braking radius

Cam Lever Travel Data:

  • 15º maximum lever travel when friction pads are new and with 1/32" gap on each side of disc.
  • Periodic tightening of lock nut will reduce travel of lever and will allow 1/4" wear on each friction pad.
  • 90º maximum lever travel after 3/16" wear on each friction pad and without intermediate tightening of lock nut.
  • Power Factor: M38F and M47F Series 1X, 200 Series 3.5X

Attributes

Model # M47MA
Description Single Acting, Fixed Mount. Use Floating Disc
Additional Info Single Spring Retractable Piston
Bolt Type Grade 8 Zinc Plated
Disc Thick. (in.) 5/32
Housing Material Aluminum, Hardcoated
Lever Force (lb.) 450
Lever/Cam Machined V-Notch Cam
Max. Disc Diameter, in. Unlimited
Total Pad Area 4.00 sq. in.
Wearable Friction Material 0.83 cu. in.
