4004-0190

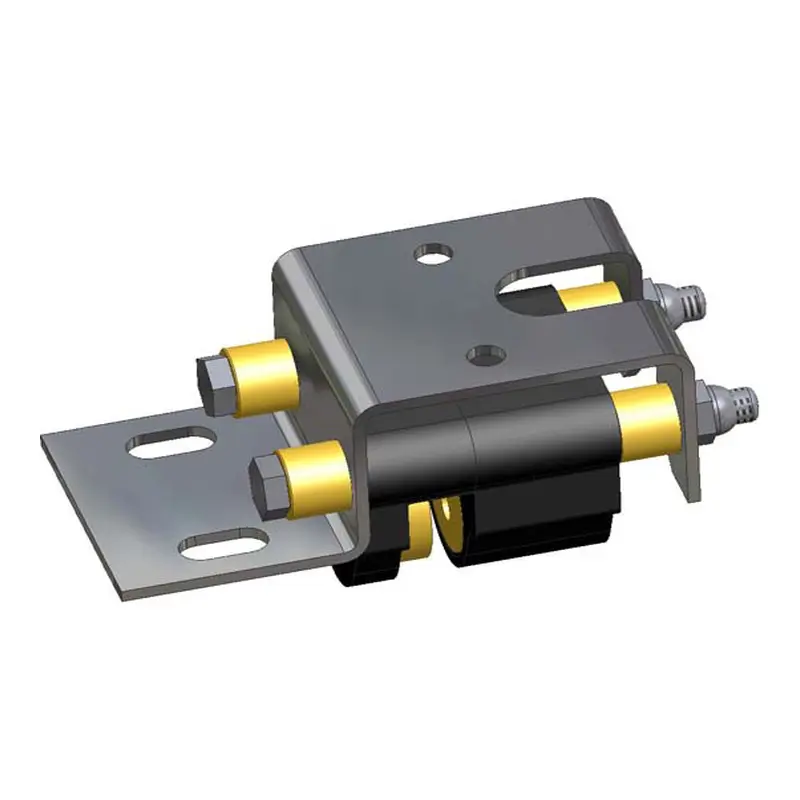

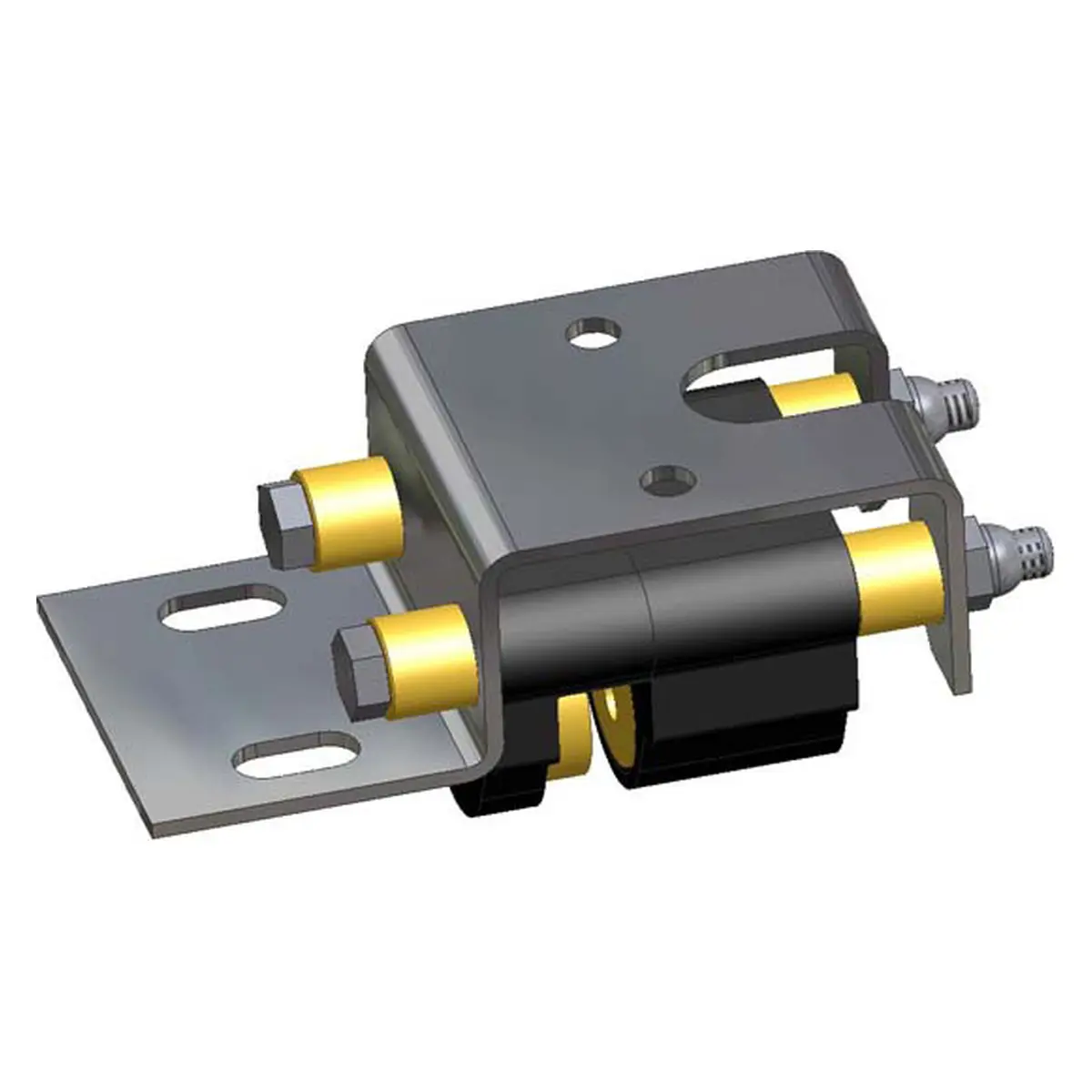

Model: P38SAF w/ Extended Floating Bracket
38 series, pneumatic single acting caliper disc brake w/ extended floating bracket sized for 5/32 inch thick brake disc.
- Aluminum Construction
- Hardcoated
- Fits on Brake Discs with Unlimited Diameter
- Replaceable Friction Pads (WCB p/n 4000-1054)
- Dynamic torque (inch/lb): 70 lbf per 100 psi x braking radius
- Power Factor: 38 Series 1X, 47 Series 2X, 200 Series 4X
Attributes
| Description | Single Acting, Floating Mount. Use Fixed Disc |
| Additional Info | Single Non-Retractable Piston |
| Disc Thick. (in.) | 5/32 |
| Fluid Type | Air |
| Max. Pressure, PSI | 200 |
| Seals | Buna-N |
| Wearable Friction Material | 0.46 cu. in. |
| Piston Dia. | 1.125 in. |
| Total Pad Area | 2.0 sq. in. |
| Fluid Displacement | 0.029 cu. in. |
