4004-0888
Model: P47SAFHC

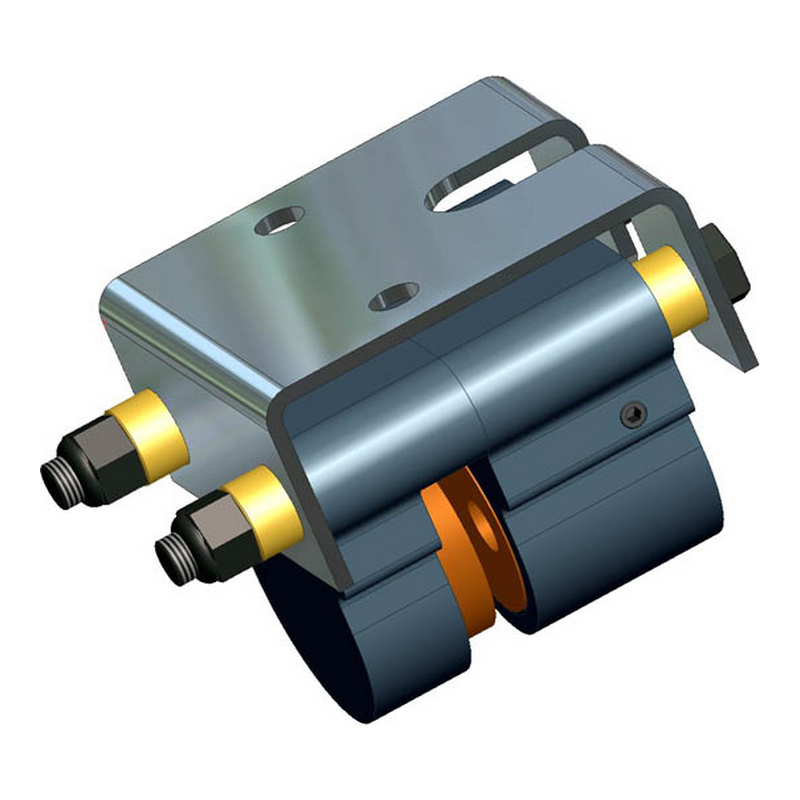

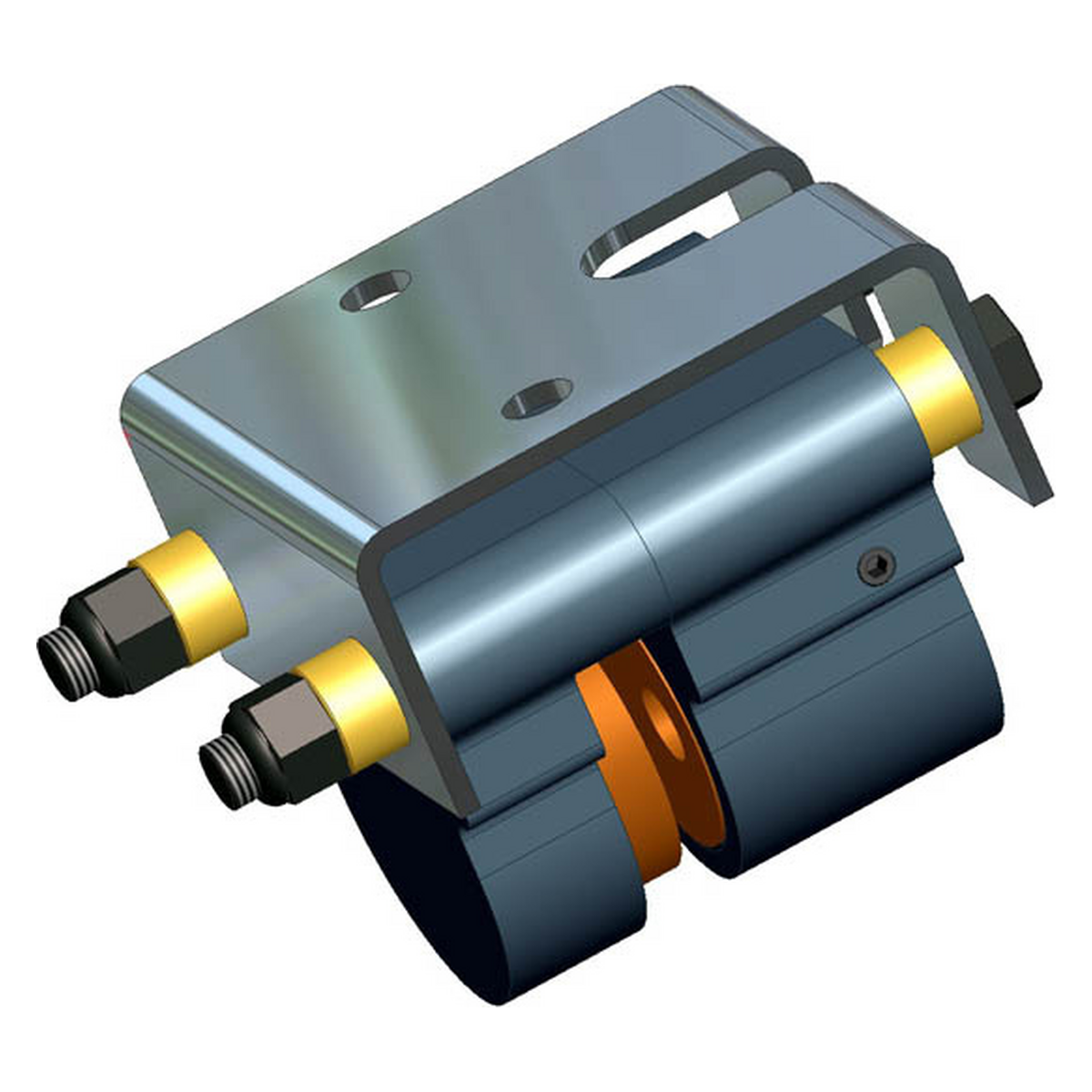

47 series, pneumatic single acting caliper disc brake w/ floating bracket sized for 5/32 inch thick brake disc.
- Aluminum Construction
- Hardcoated
- Fits on Brake Discs with Unlimited Diameter
- High-Coefficient Friction Pads (WCB p/n 4000-1565)
- Dynamic torque (inch/lb): 144 lbf per 100 psi x braking radius
| Additional Info | Single Non-Retractable Piston |
| Description | Single Acting, Floating Mount. Use Fixed Disc |
| Disc Thick. (in.) | 5/32 |
| Fluid Displacement | 0.062 cu. in. |
| Fluid Type | Air |
| Max. Pressure, PSI | 200 |
| Model # | P47SAFHC |
| Piston Dia. | 1.625 in. |
| Seals | Buna-N |
| Total Pad Area | 4.00 sq. in. |
| Wearable Friction Material | 0.83 cu. in. |
