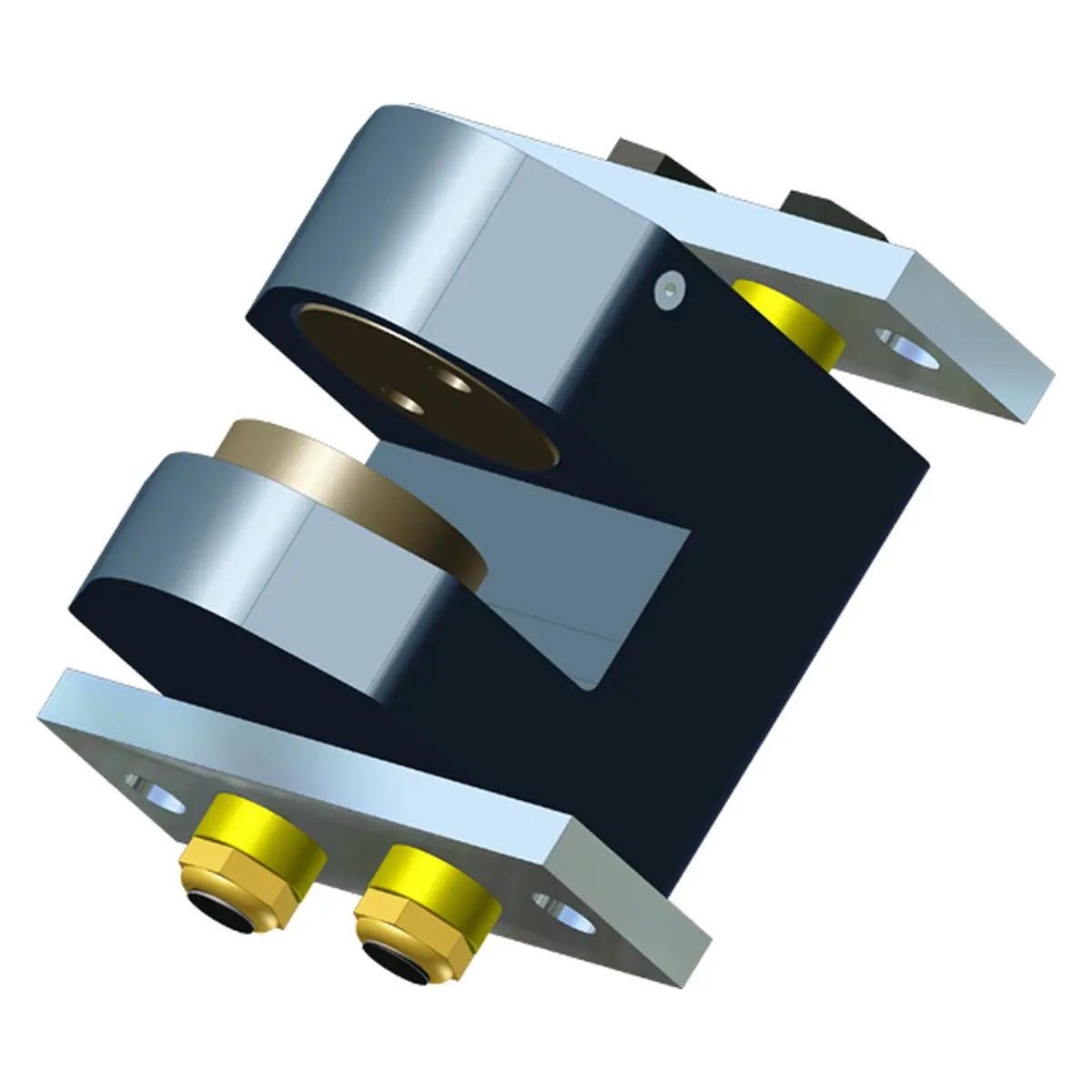

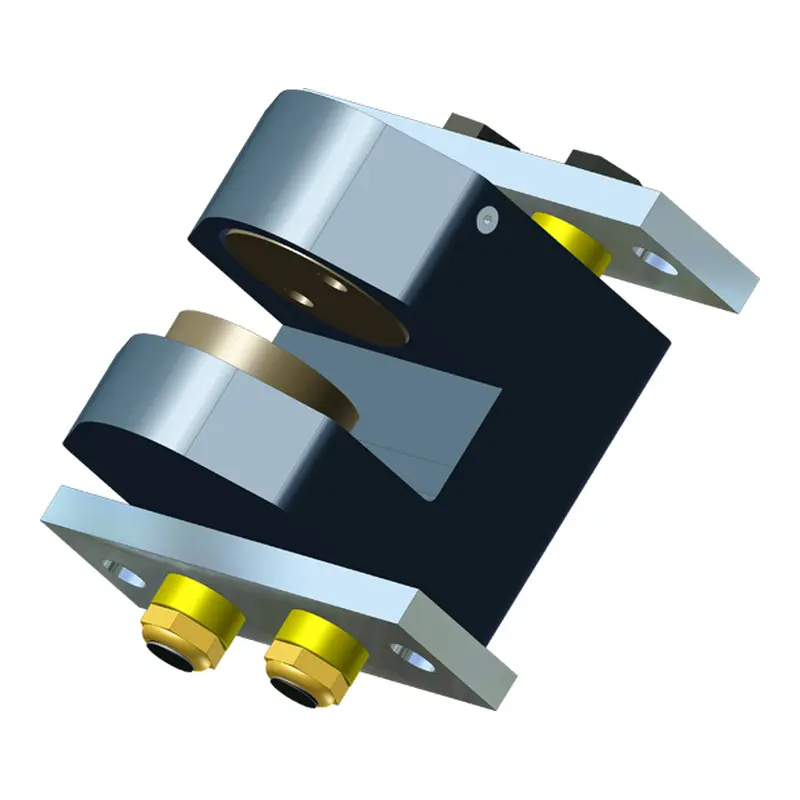

4251-0030
Model: P491SOF
491 series, pneumatic single acting caliper disc brake w/ float plates, sized for 1.0 inch thick brake disc.
- Aluminum Construction
- Hardcoated
- Fits on Brake Discs with Unlimited Diameter
- Replaceable Friction Pads (WCB p/n 4000-1014)
- Dynamic torque (inch/lb): 353.5 lbf per 100 psi x braking radius
- Power Factor: 491 Series 5X, 38 Series 1X, 47 Series 2X, 200 Series 4X, 962 Series 10X
Attributes
| Model # | P491SOF |
| Description | Single Acting, Floating Mount. Use Fixed Disc |
| Additional Info | Single Non-Retractable Piston |
| Disc Thick. (in.) | 1.0 |
| Fluid Type | Air |
| Max. Pressure, PSI | 200 |
| Piston Dia. | 2.5 In. |
| Seals | Buna-N |
| Total Pad Area | 9.14 sq. in. |
| Wearable Friction Material | 3.80 cu. in. |
