4005-0146

Model: PFS200OFUL-EP

200 extended friction pad series, pneumatic spring applied, single acting caliper disc brake sized for 1.0 inch thick brake disc.

  • 23.89 sq. in. total pad area
  • 7.72 cu. in. wearable material
  • 85 PSI Retractable
  • Aluminum Construction
  • Hardcoated
  • Dual Belleville Disc Spring Stacks
  • Available W.C. Branham Brake Discs: 12" and 16" Diameters
  • Fits on Brake Discs from 12" to Unlimited Diameter
  • Replaceable Friction Pads
  • Non-Asbestos Friction Material
  • .45 Coefficient of Friction
  • 929 lb. Maximum Tangential Force
  • 2065 lb. Maximum Clamping Force
  • 13,129 in. lb. F using 30 inch Disc Diameter
Additional Info Dual Pistons. Spring Applied 85 PSI Release
Description Single Acting, Floating Mount. Use Fixed Disc
Disc Thick. (in.) 1.0
Model # PFS200OFUL-EP
Tangential Force 929 lbf, (4132 N)

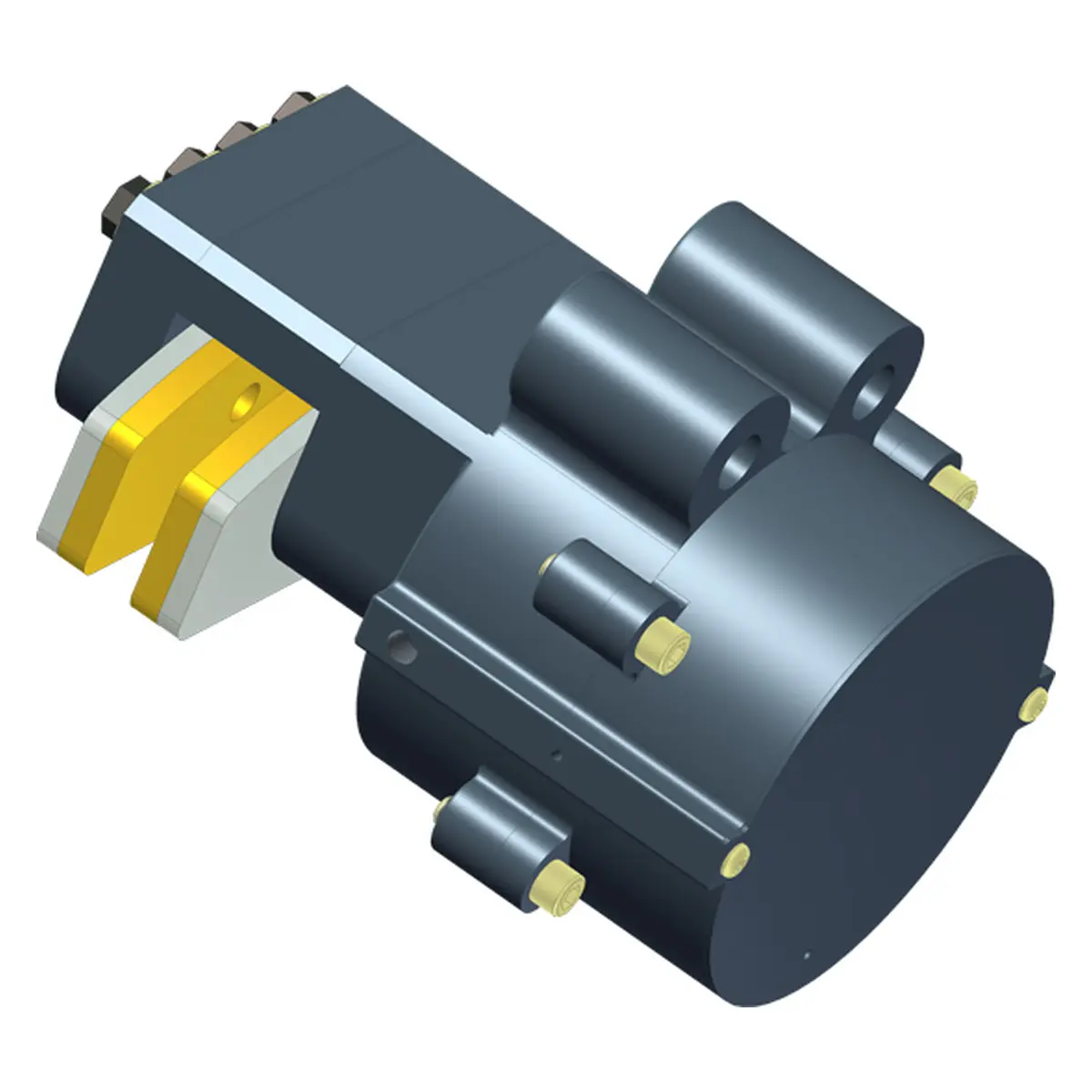

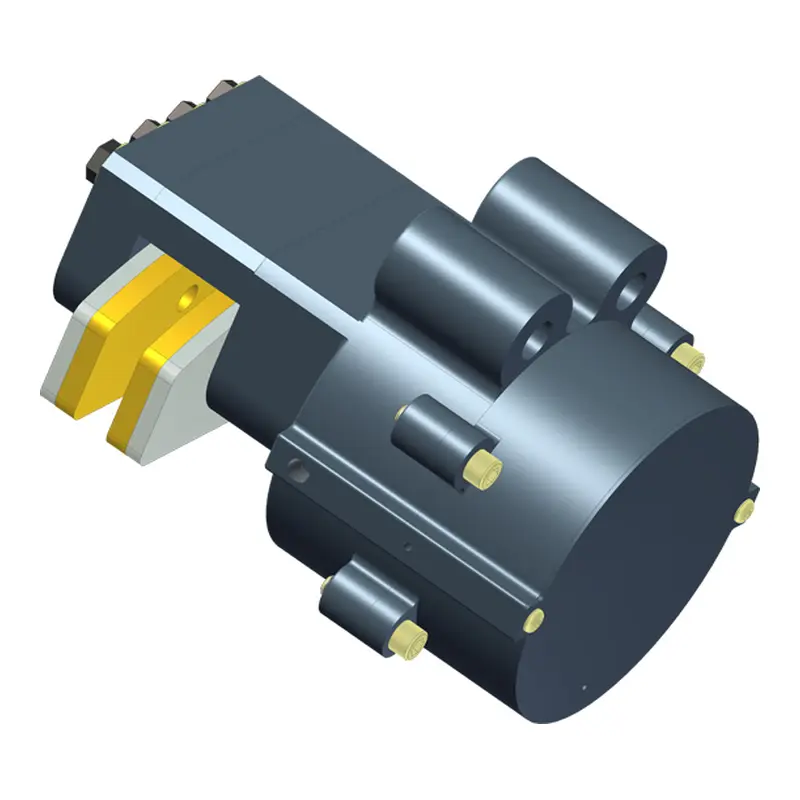

Click image to enlarge
