4ICAS101:1LHA.500B.500 Include-A-Shaft Mini Gearbox

Attributes | Quote | Downloads 4ICAS101:1LHA.500B.500

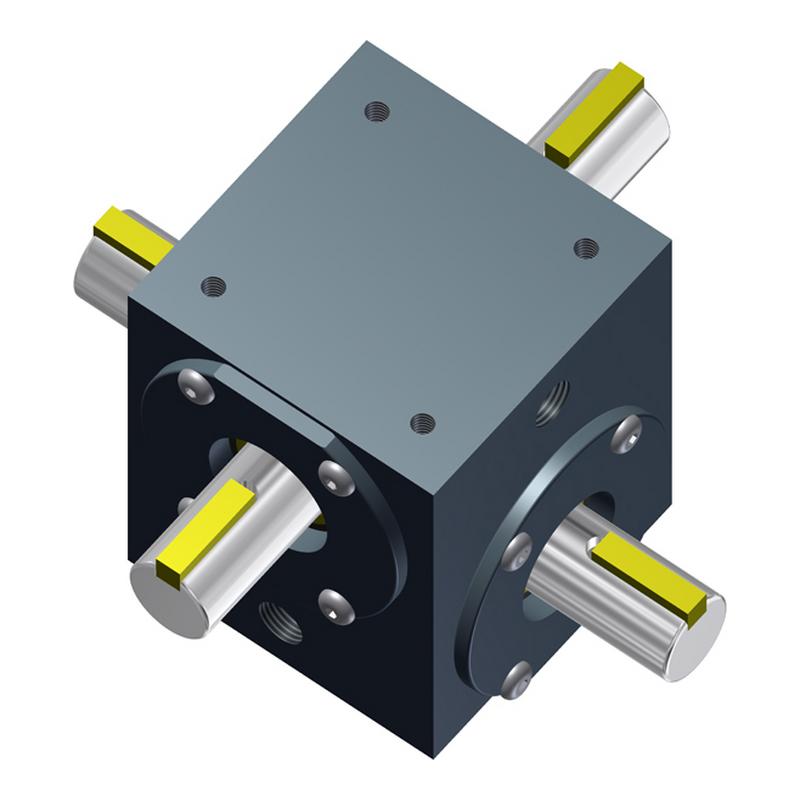

Include-A-Shaft® Series 10 Mini Right Angle Gearbox, 4-Way, 1:1 Ratio, Left Hand Rotation, 'A' Bore .500 in. x 'B' Bore .500 in.

  • 1" shaft centers
  • One piece 4140 heat treated 45º helical gear and shaft combinations
  • Heavy duty sealed ball bearings
  • Left hand rotation
  • Hardcoated housing
  • Speeds to 1800 RPM
  • O-Ring sealed gear case
  • Machined aluminum construction
  • Keys included


Ratio 1:1
Rotation Left Hand
# of Shafts 4-Way
Shaft Dia. (in.) .500
Max RPM 1800
Max Hand Torque 132 in. lb.
Shaft Center Dist., (in.) 1.0
Mounting Type Flush
Mounting (8) 10-32 mounting holes
Key Size 1/8 x 1/16

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote


Dimension View (459KB JPG)
Dimension Print (198KB PDF)
DWG Cad File (530KB DWG)
DXF Cad File (1.33MB DXF)
STEP Cad File (497KB STP)
