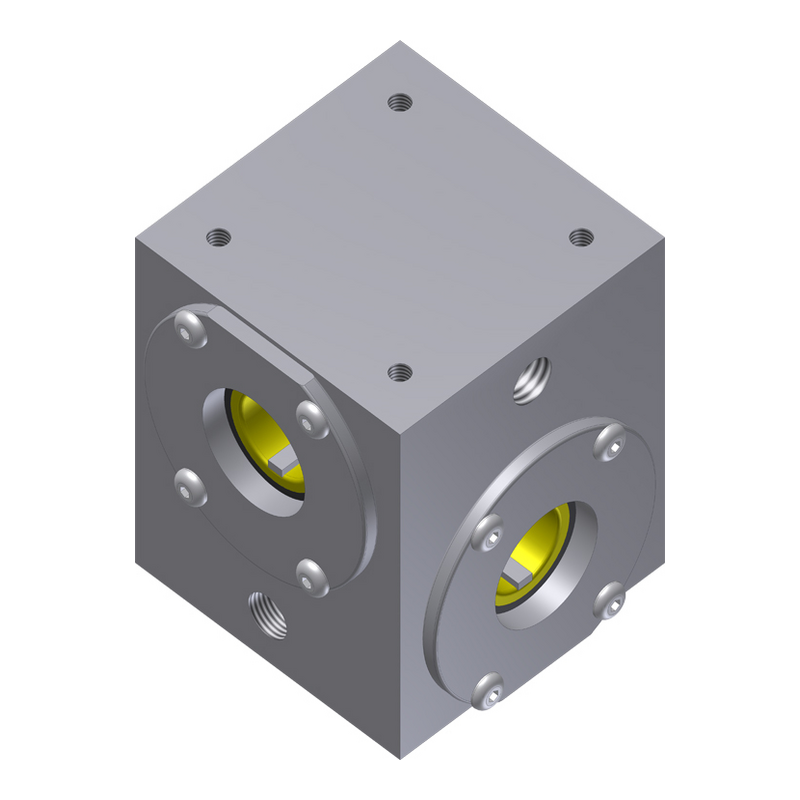

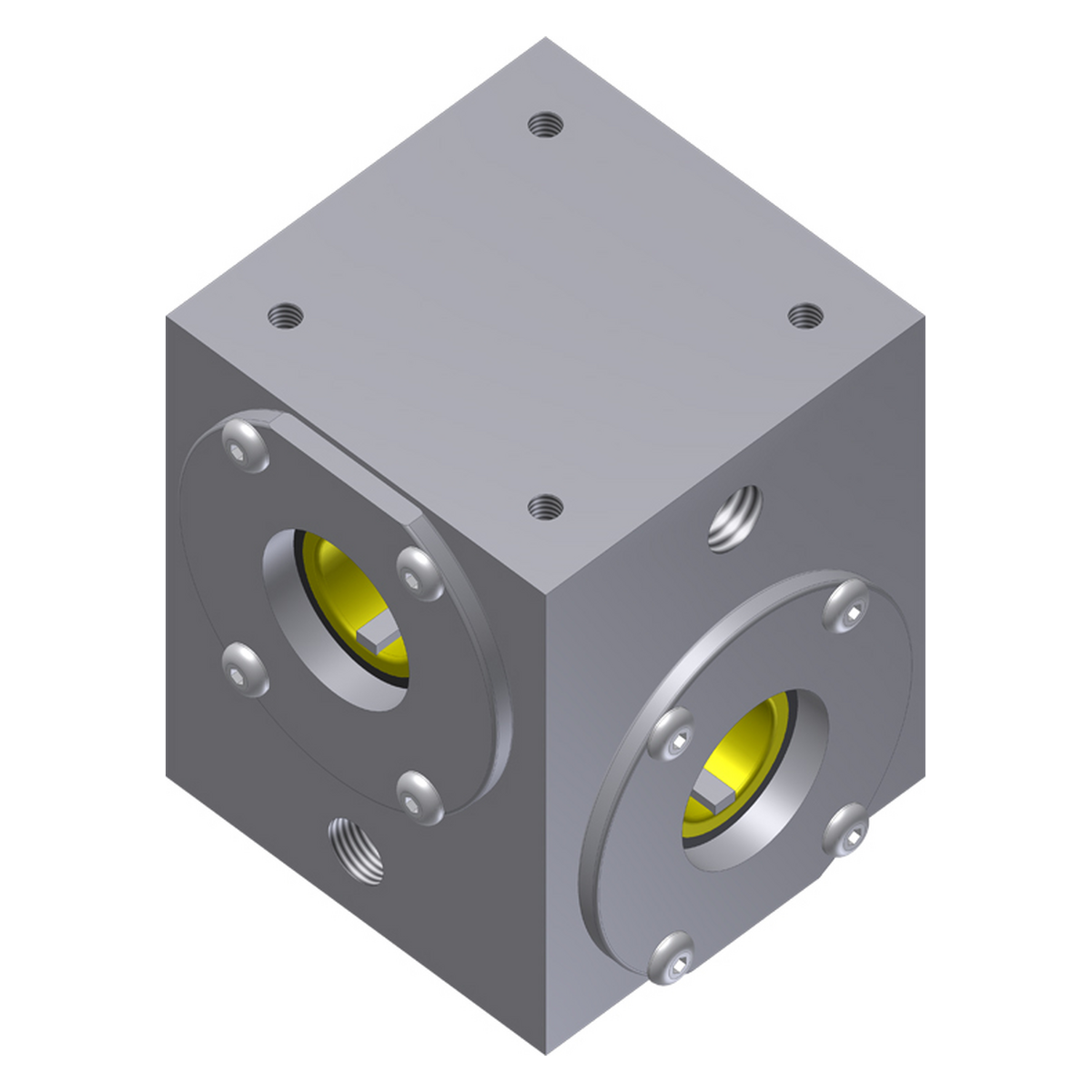

Stainless Steel Insert-A-Shaft® Series Mini Right Angle Gearbox, 1:1 Ratio, Right Hand Rotation, 'A' Bore .500 in. x 'B' Bore .500 in.

  • Compact, 1 inch Bore Center Distance
  • Sealed, Leak Proof Gearcase
  • 304 Stainless Steel Gearcase, Bearing Caps and Keys
  • Stainless Steel Fasteners
  • 8620 Heat Treated Case Hardened Gears
  • (4) Stainless Steel R16 Sealed Ball Bearings
  • Pre-Lubricated w/Magnalube®-G GR2 HTEP
  • Accrolube® Food Grade 2 Optional. Specify when ordering.
  • Stainless Shaft Keys (2) Included
