4304-0282

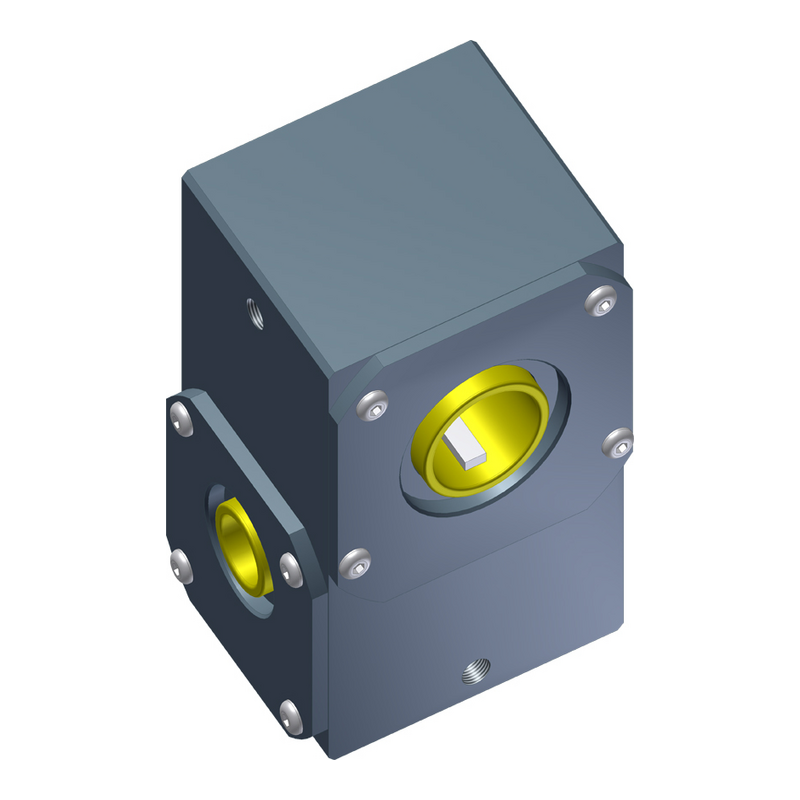

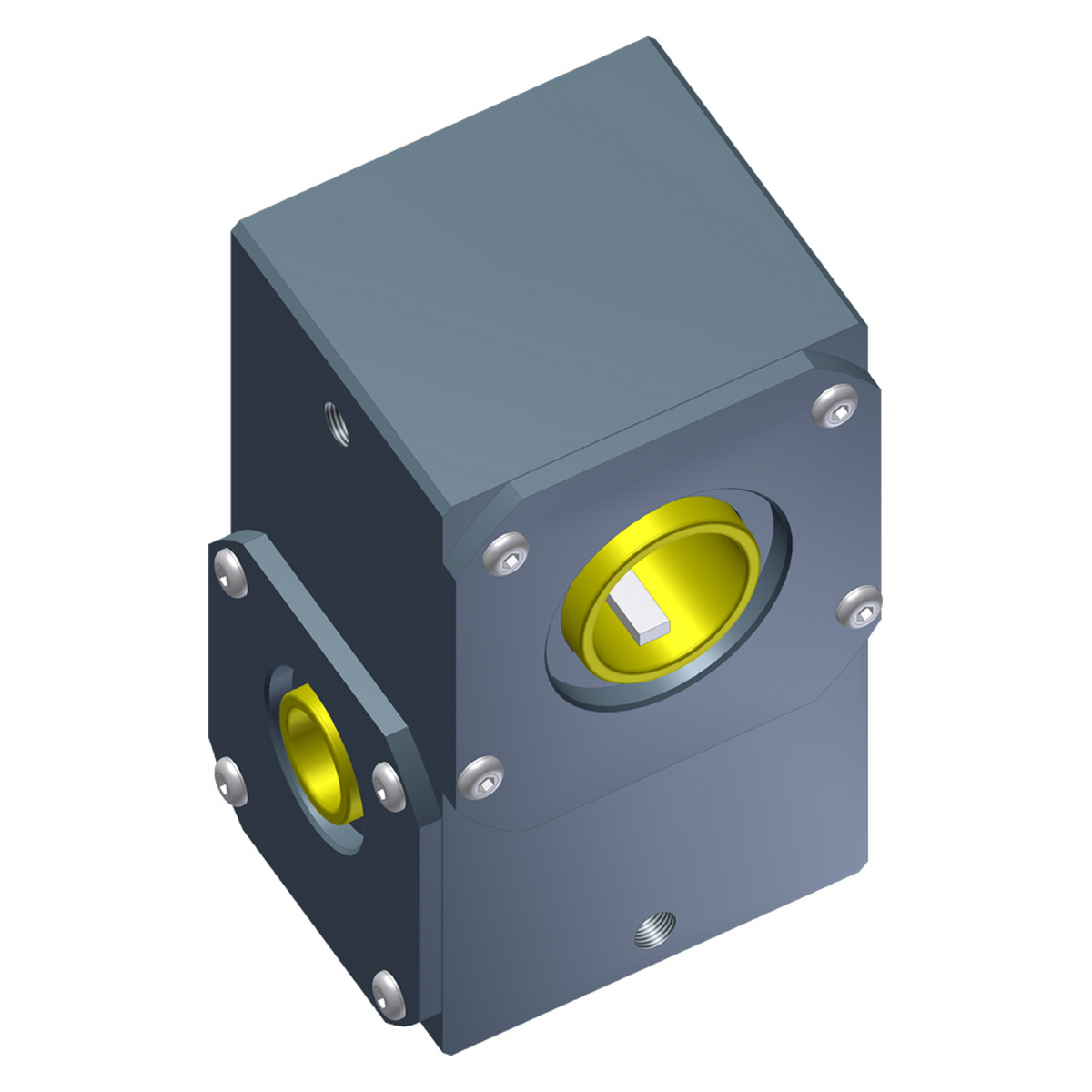

Insert-A-Shaft® Series 22 Right Angle Gearbox, 2:1 Ratio, Right Hand Rotation, 'A' Bore .625 in. x 'B' Bore .625 in.

  • Sealed, Leak Proof Gearcase
  • Cast Aluminum Construction
  • Hardcoated
  • 8620 Heat Treated Case Hardened Gears
  • Heavy Duty Sealed Ball Bearings
  • Pre-Lubricated w/Magnalube®-G GR2 HTEP
  • (2) Keys Included
