4304-0536

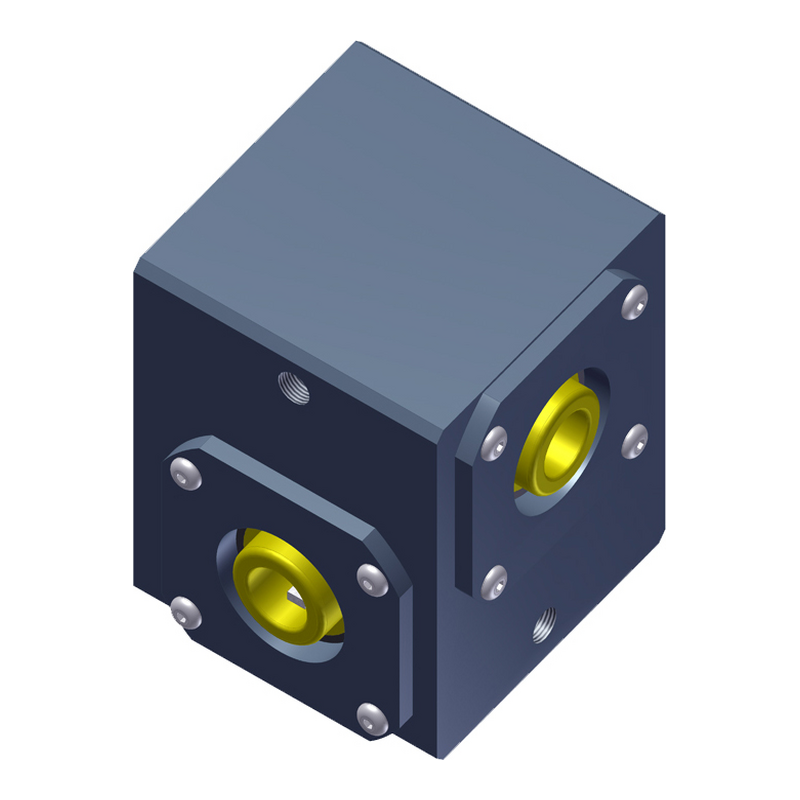

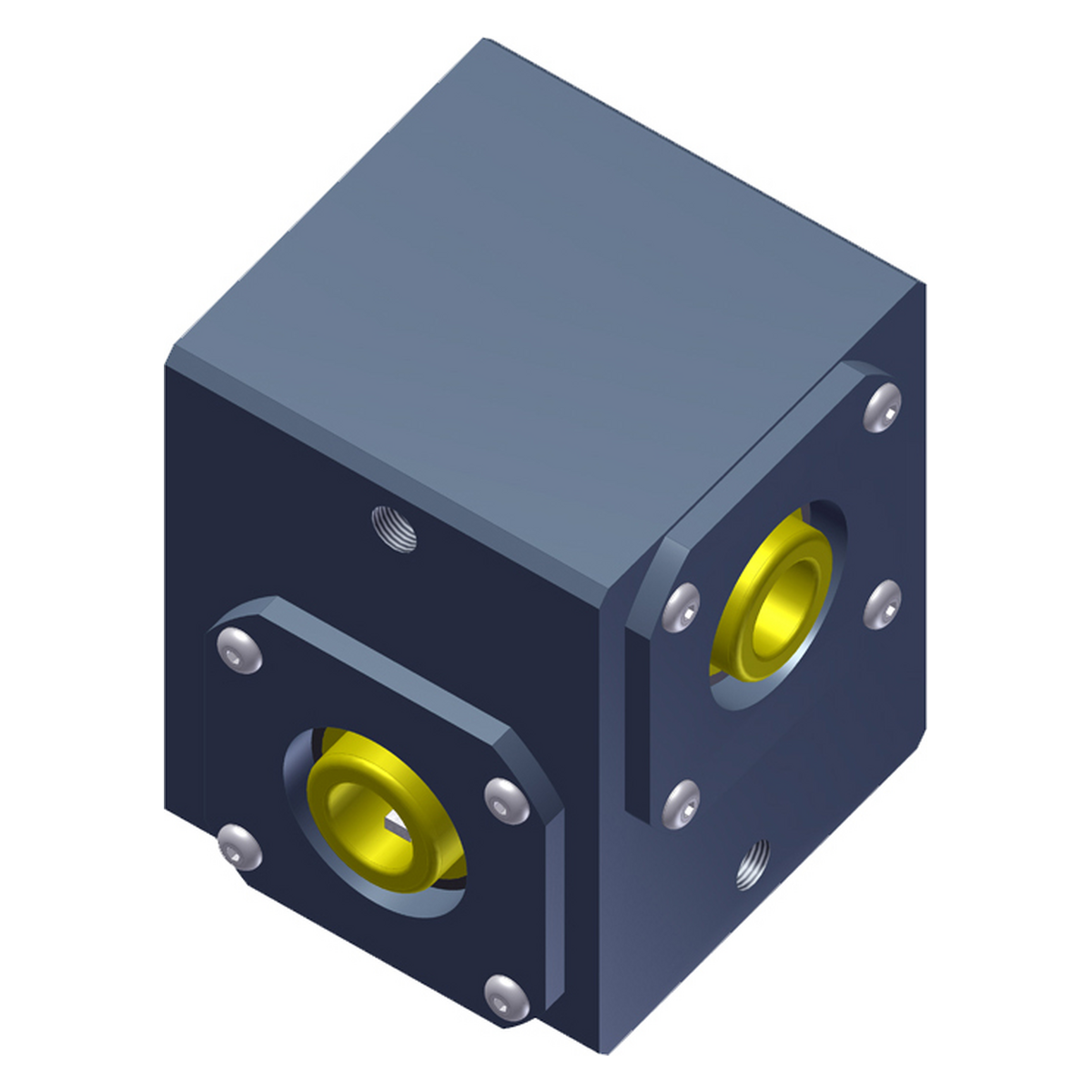

Insert-A-Shaft® Series 15 Right Angle Gearbox, 1:1 Ratio, Right Hand Rotation, 'A' Bore .500 in. x 'B' Bore .625 in.

  • Mid Size, 1.5 inch Bore Center Distance
  • Sealed, Leak Proof Gearcase
  • Aluminum Construction
  • Hardcoated
  • 8620 Heat Treated Case Hardened Gears
  • (4) R16 Double Sealed Ball Bearings
  • Pre-Lubricated w/Magnalube®-G GR2 HTEP
  • (2) Keys Included
