4304-0548

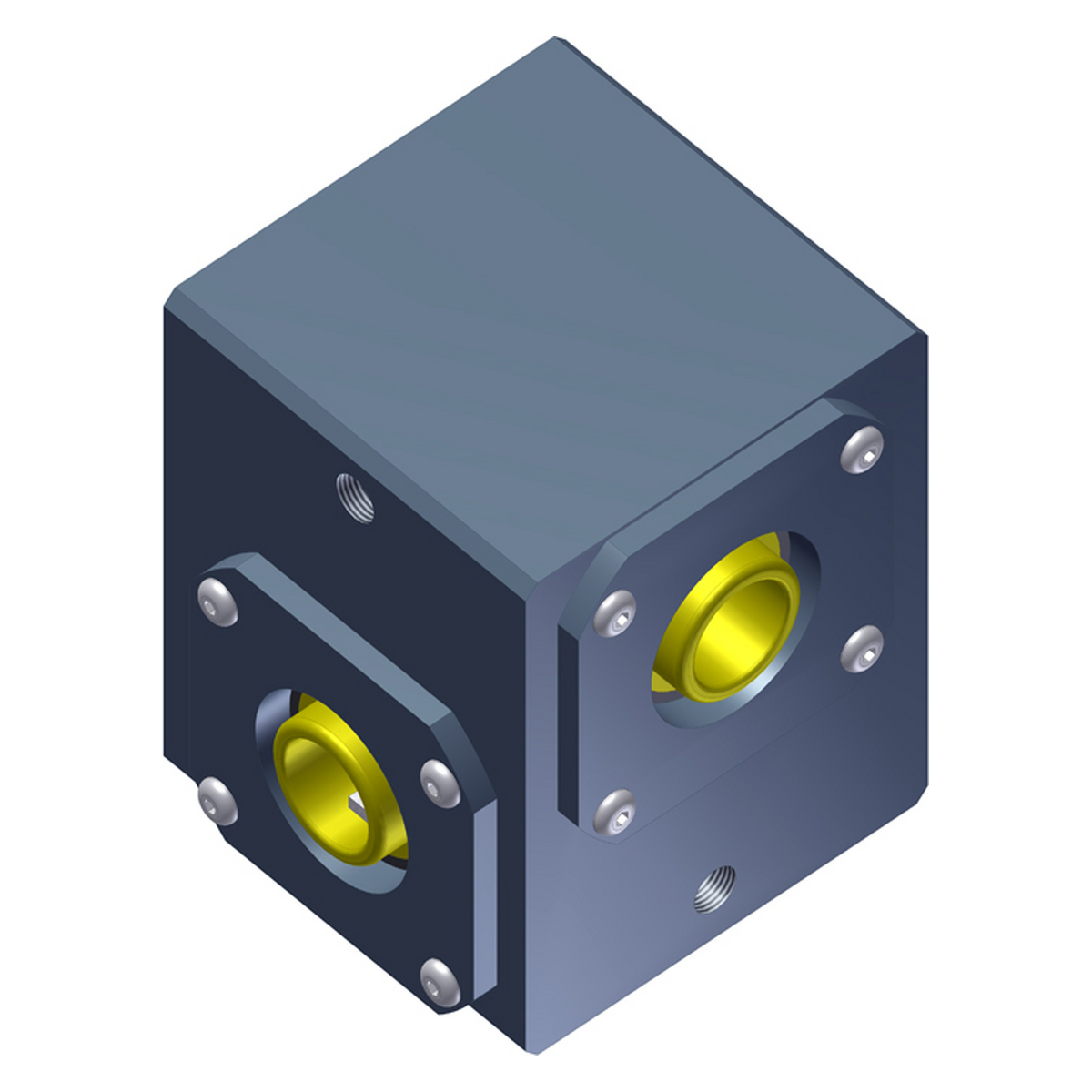

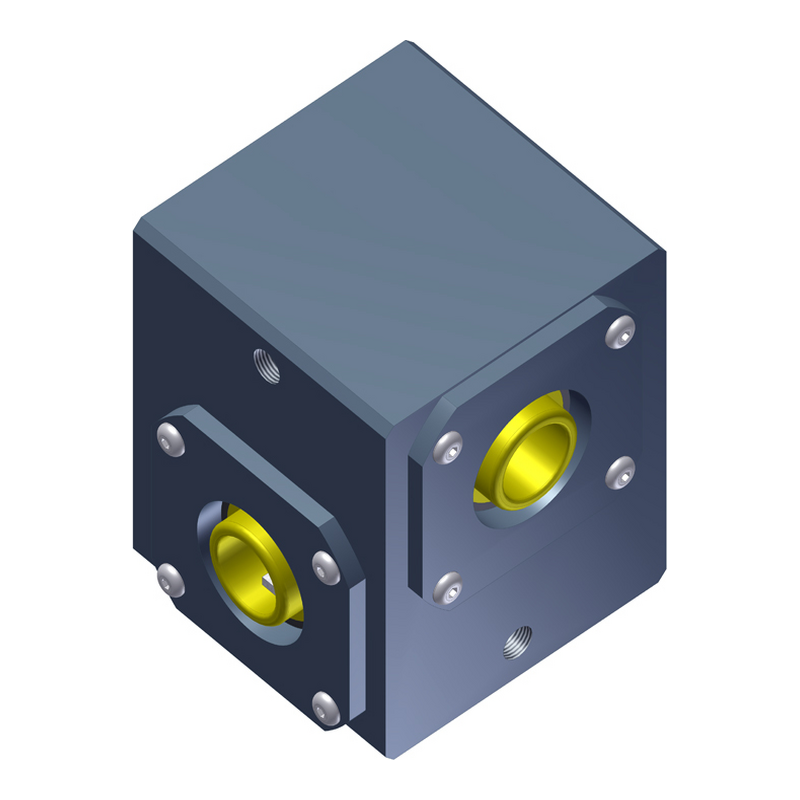

Insert-A-Shaft® Series 15 Right Angle Gearbox, 1:1 Ratio, Right Hand Rotation, 'A' Bore .750 in. x 'B' Bore .750 in.
- Mid Size, 1.5 inch Bore Center Distance
- Sealed, Leak Proof Gearcase
- Aluminum Construction
- Hardcoated
- 8620 Heat Treated Case Hardened Gears
- (4) R16 Double Sealed Ball Bearings
- Pre-Lubricated w/Magnalube®-G GR2 HTEP
- (2) Keys Included
Click image to enlarge
