4304-0592

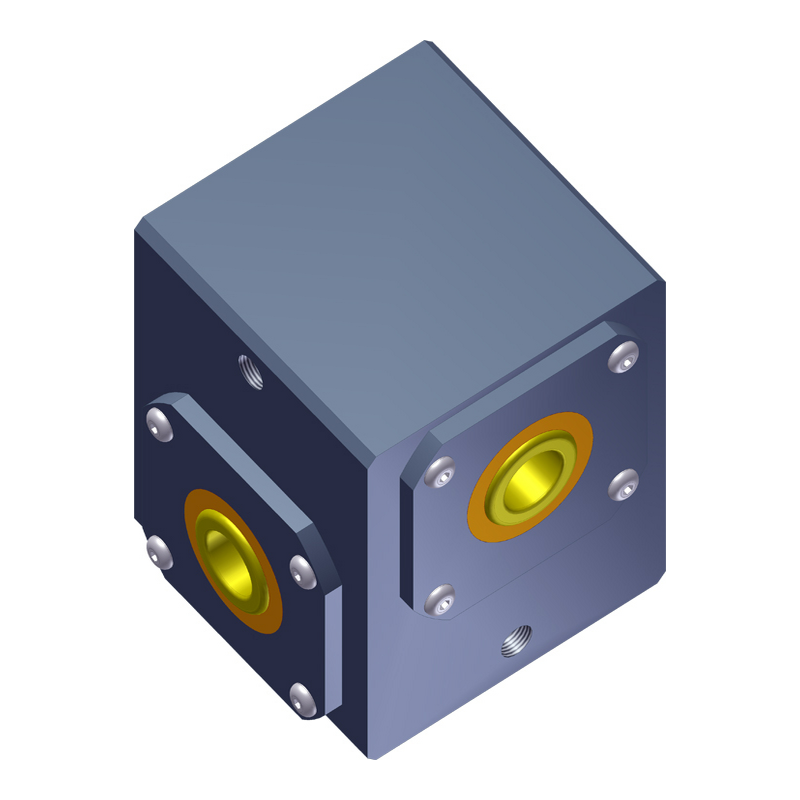

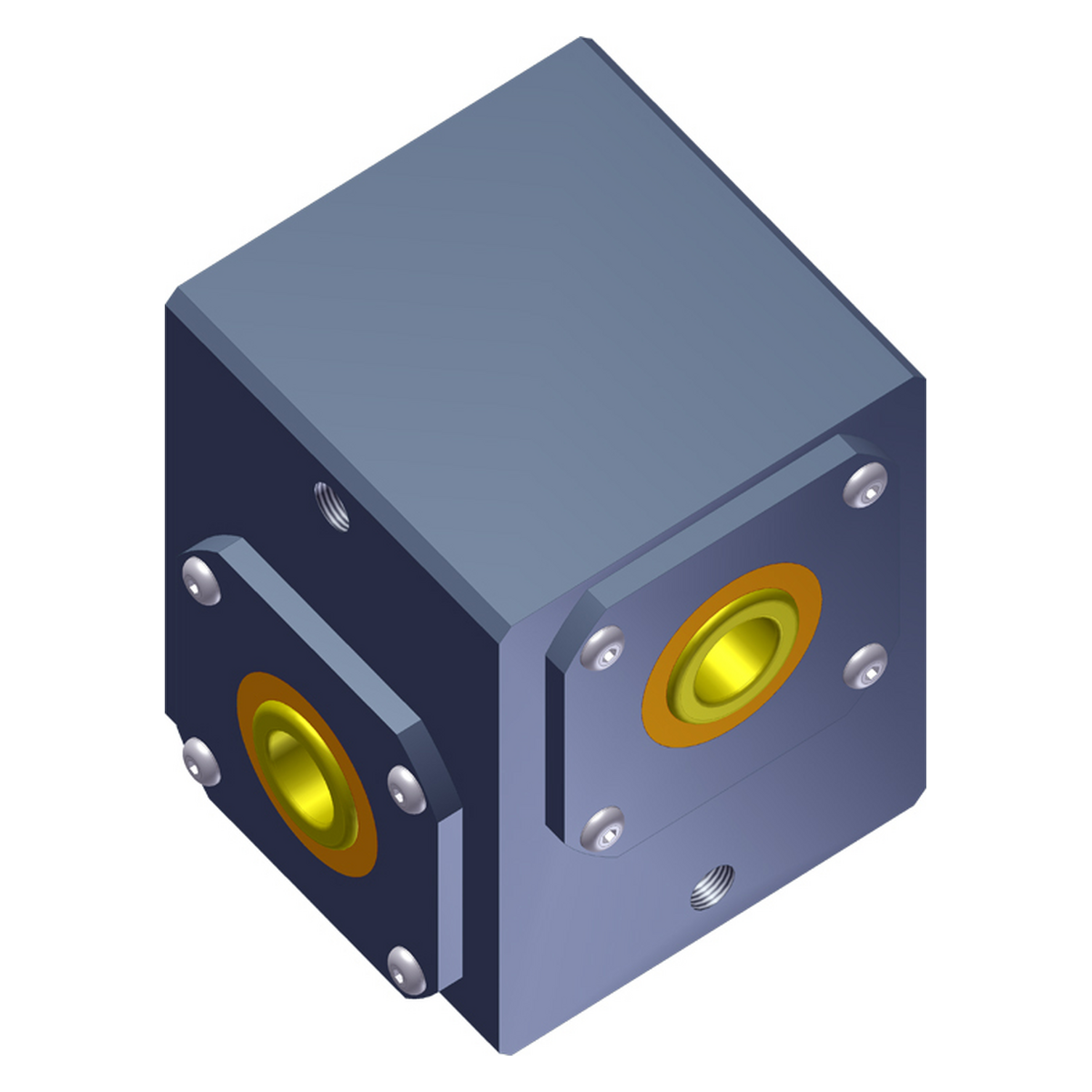

Insert-A-Shaft® Series 15 Right Angle Gearbox with Continuous Recirculating Lubricant (CRL), 1:1 Ratio, Flush Mount, Right Hand Rotation, 'A' Bore .750 in. x 'B' Bore .750 in.

  • Mid Size, 1.5 inch Bore Center Distance
  • Designed for High Cycle, Continuous Duty
  • Pre-Lubricated w/Lubriplate 1500 Grade 00
  • 4 Ea. Heavy Duty R16 Double Sealed Ball Bearings
  • 4 Ea. Spring Loaded Shaft Seals
  • Sealed, Leak Proof Gearcase
  • Cast Aluminum Construction
  • Hardcoated
  • 8620 Heat Treated Case Hardened 15 Tooth Gears
  • (2) Keys Included
