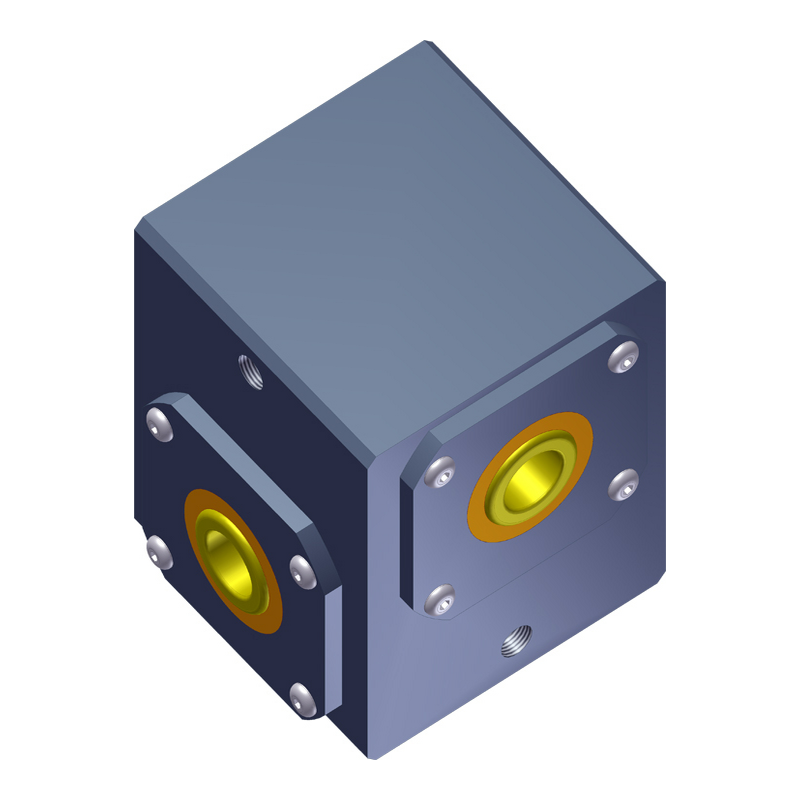

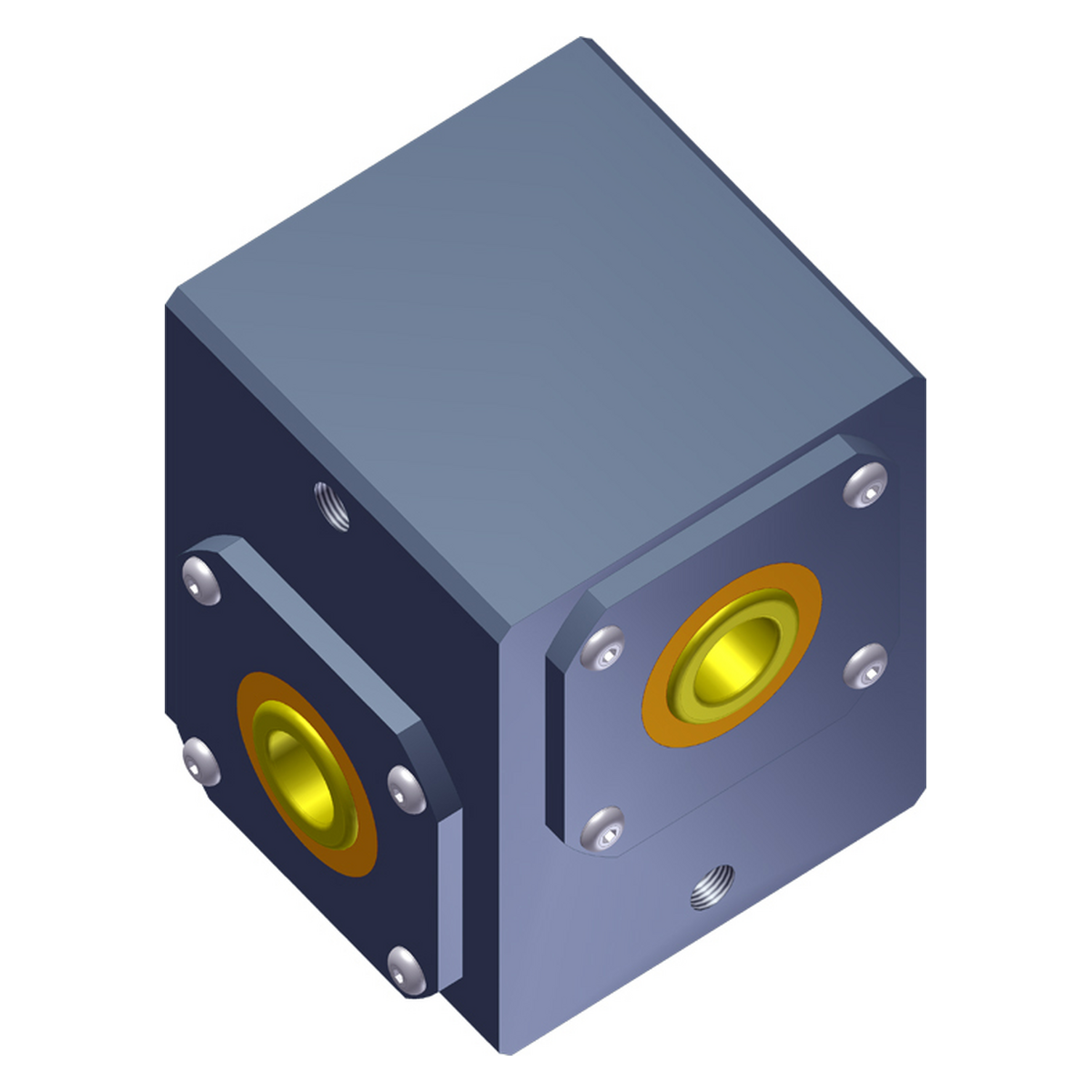

Insert-A-Shaft® Series 15 Right Angle Gearbox with Continuous Recirculating Lubricant (CRL™), 1:1 Ratio, Flush Mount, Right Hand Rotation, 'A' Bore .500 in. x 'B' Bore .500 in.
- Mid Size, 1.5 inch Bore Center Distance
- Designed for High Cycle, Continuous Duty
- Pre-Lubricated w/Lubriplate 1500 Grade 00
- 4 Ea. Heavy Duty R16 Double Sealed Ball Bearings
- 4 Ea. Spring Loaded Shaft Seals
- Sealed, Leak Proof Gearcase
- Cast Aluminum Construction
- 8620 Heat Treated Case Hardened 15 Tooth Gears
- (2) Keys Included
