4304-0729

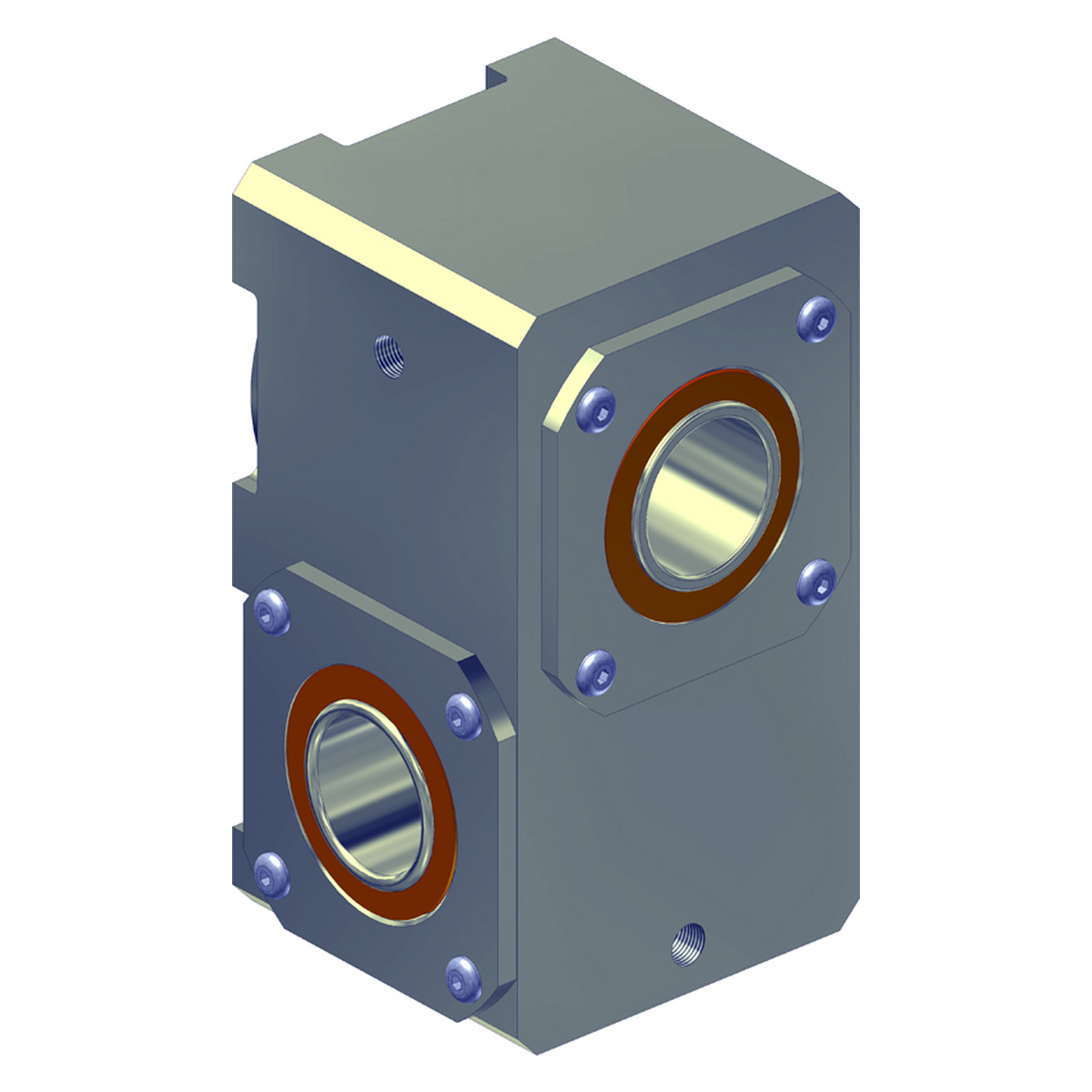

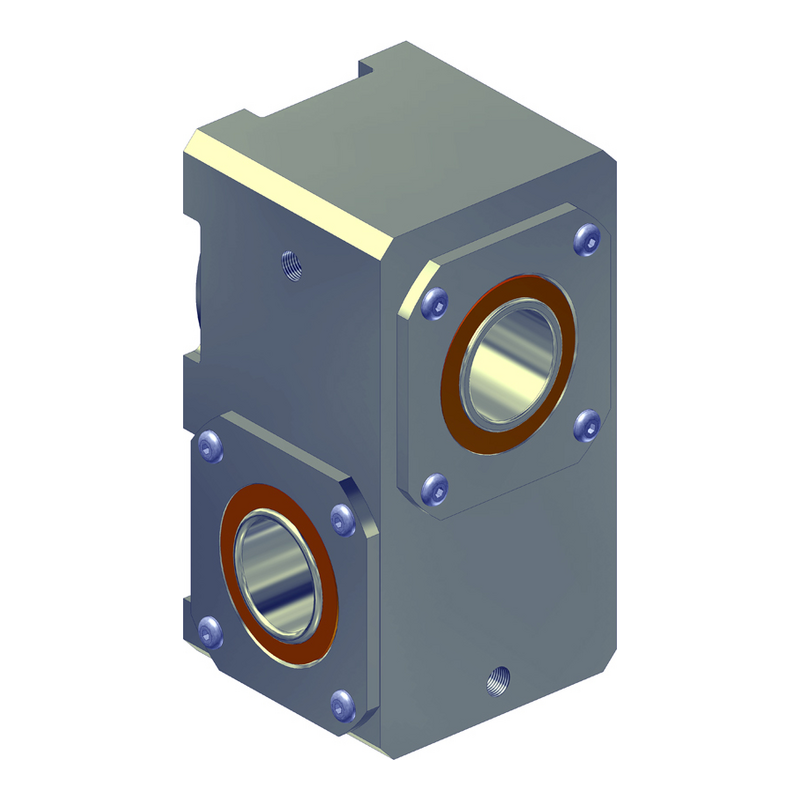

Wash Down, Continuous Recirculating Lubricant (CRL) Right Angle Gearbox, Base Mount, 1:1 Ratio, Left Hand Rotation, 'A' Bore .625 in. x 'B' Bore .625 in.
- High Cycle, Continuous Duty
- 4 Ea. Heavy Duty R24 Double Sealed Ball Bearings
- 4 Ea. Spring Loaded Shaft Seals
- Sealed, Leak Proof Gearcase
- Speeds to 1200 RPM
- Electro Nickel Plated Gearcase, Bearing Caps, Shafts & Keys
- Stainless Steel Fasteners
- 8620 Heat Treated Case Hardened Gears
- Pre-Lubricated Lubriplate 1500 Grade 00
