4304-0770

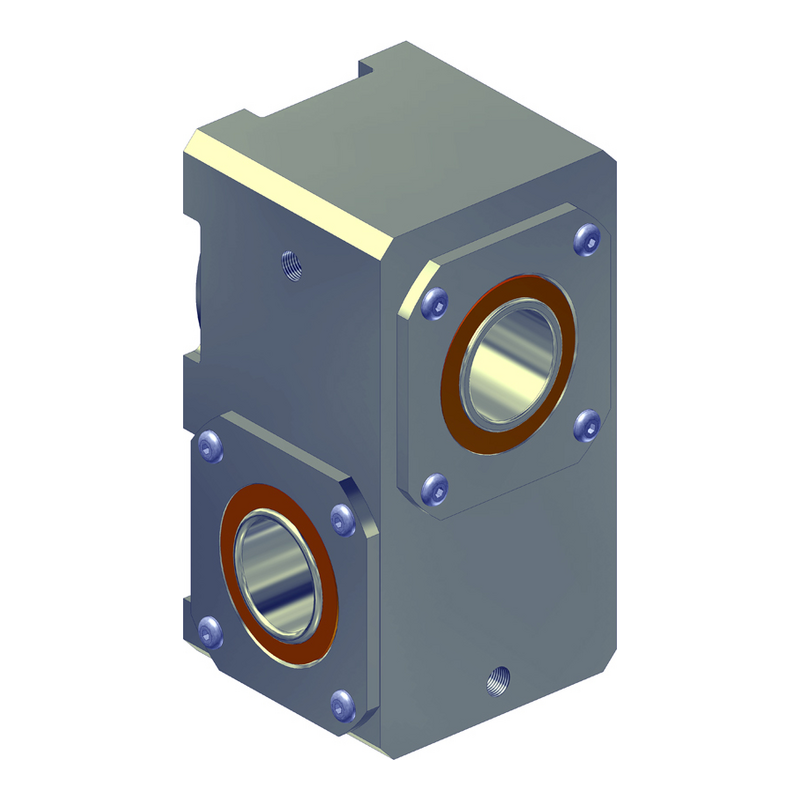

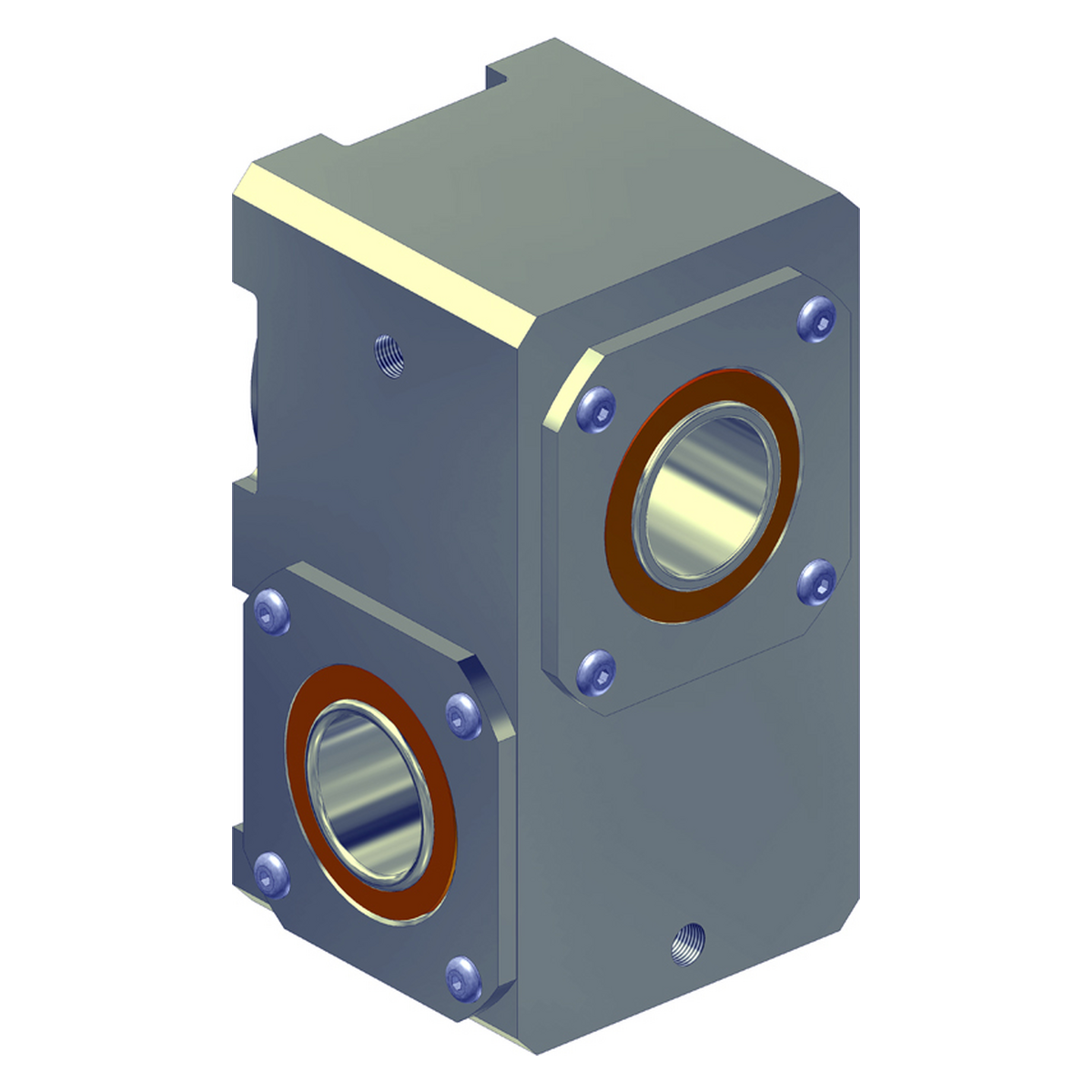

Stainless Steel, Continuous Recirculating Lubricant (CRL) Series 25 Right Angle Gearbox, Base Mount, 1:1 Ratio, Right Hand Rotation, 'A' Bore 1.25 in. x 'B' Bore 1.25 in.

  • High Cycle, Continuous Duty
  • 304 Stainless Gearcase
  • 304 Stainless Caps, Shafts & Keys
  • Stainless Steel Fasteners
  • 4 Ea. Heavy Duty R24 Stainless Double Sealed Ball Bearings
  • 4 Ea. Spring Loaded Shaft Seals
  • Sealed, Leak Proof Gearcase
  • Speeds to 1200 RPM
  • 8620 Heat Treated Case Hardened Gears
  • Pre-Lubricated Lubriplate 1500 Grade 00
