4304-0839

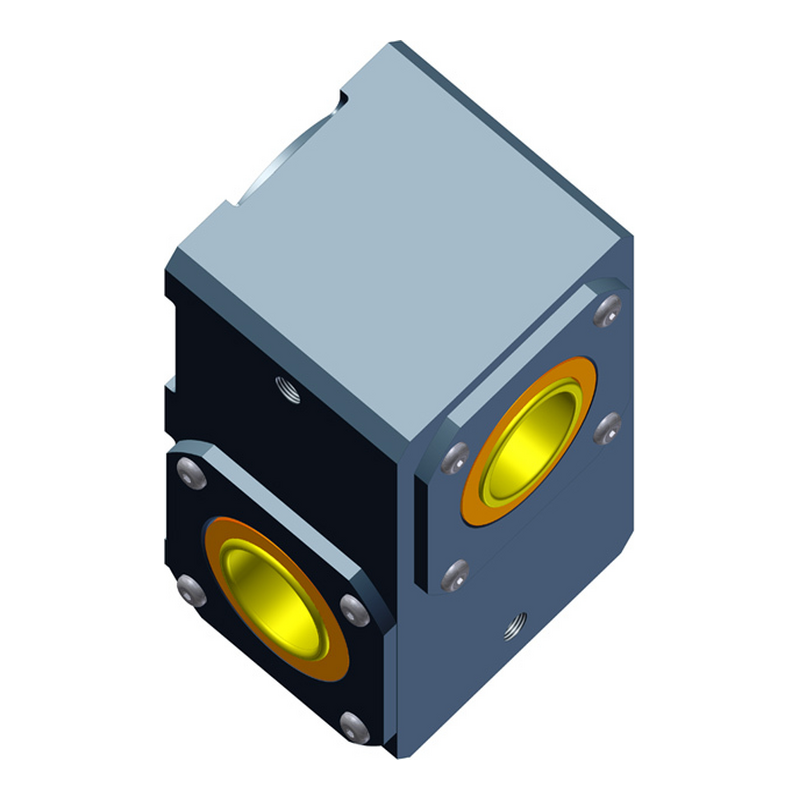

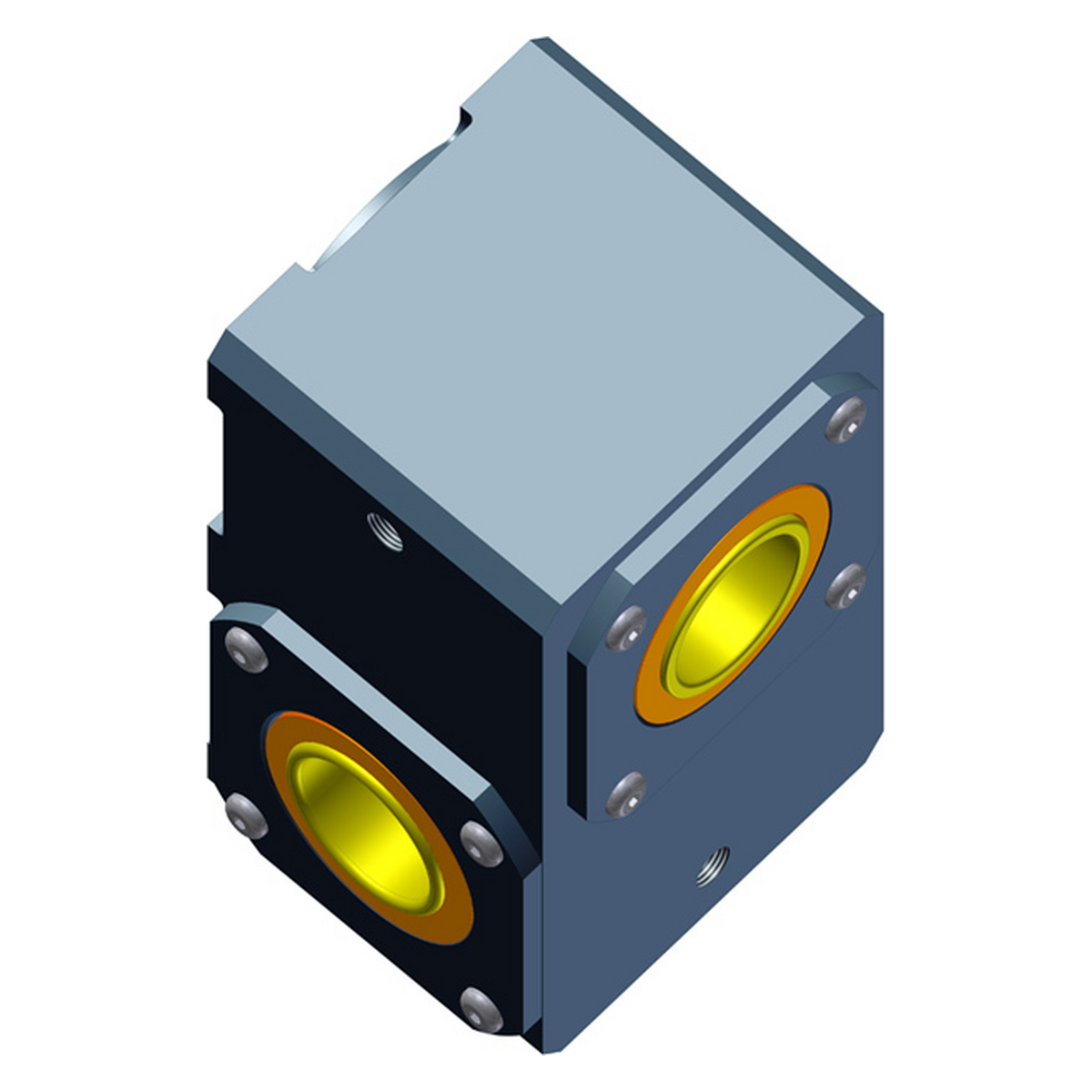

Glide Right with Continuous Recirculating Lubricant (CRL) is Mounting and Centerline Dimension Interchangeable with T-O-M Brand S-R Gearboxes. 1:1 Ratio, Base Mount, Left Hand Rotation, 'A' Bore 1.00 in. x 'B' Bore 1.00 in.

  • High Cycle, Continuous Duty
  • 4 Ea. Heavy Duty R24 Double Sealed Ball Bearings
  • 4 Ea. Spring Loaded Shaft Seals
  • Sealed, Leak Proof Gearcase
  • Cast Aluminum Construction
  • Hardcoated
  • 8620 Heat Treated Case Hardened Gears
  • Pre-Lubricated w/Lubriplate 1500
  • (2) Keys Included
  • T-O-M Brand S-R Model No. 0227-0400 Crossover
