4304-0906

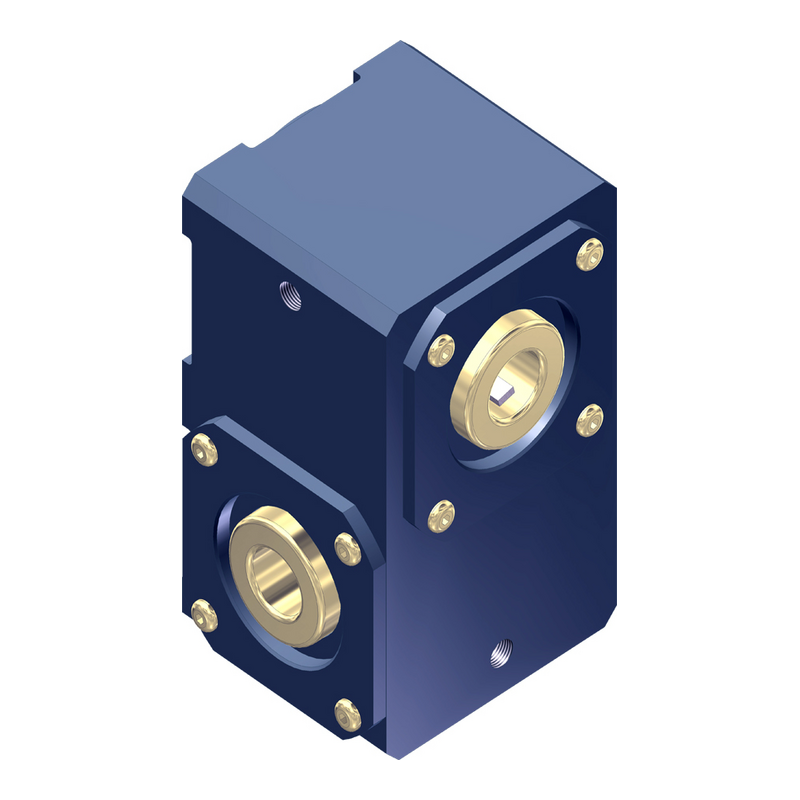

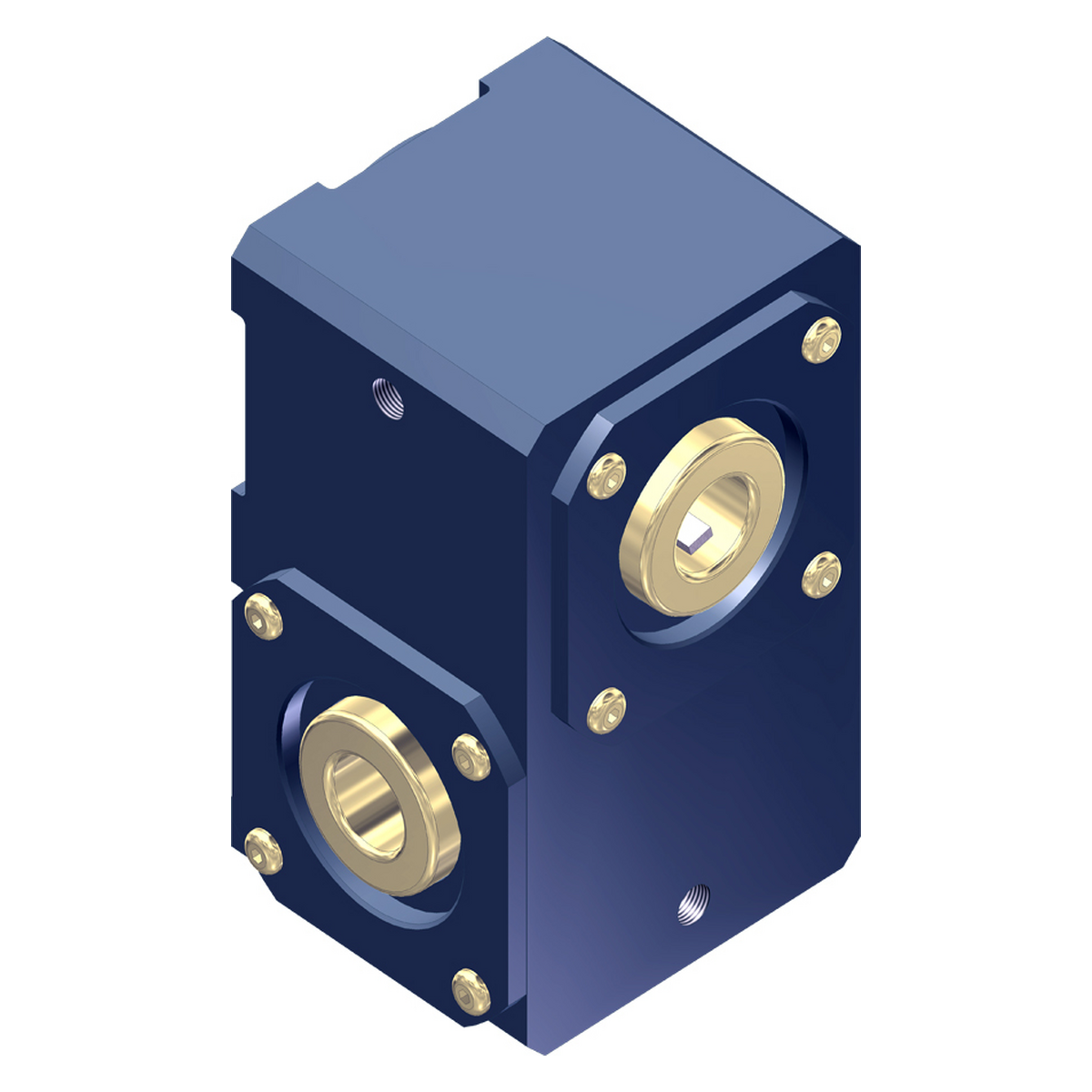

Glide Right Gearbox. 1:1 Ratio, Base Mount, Right Hand Rotation, 'A' Bore 25mm x 'B' Bore 25mm.

  • 4 Ea. Heavy Duty R24 Double Sealed Ball Bearings
  • Sealed, Leak Proof Gearcase
  • Cast Aluminum Construction
  • Hardcoated
  • 8620 Heat Treated Case Hardened Gears
  • Lube & Breather Ports with Fittings
  • Pre-Lubricated w/Magnalube®-G GR2 HTEP
  • (2) Keys Included
  • T-O-M Brand S-R Model No. 0226-0410 Crossover
$656.92
Click image to enlarge

Downloads

Need Something Specific?

Expecting to find something that isn't here? We'd be happy to help. Just reach out through our contact form and let us know what you need.

Submit a Request

Configure Your CAD File
