4306-0007

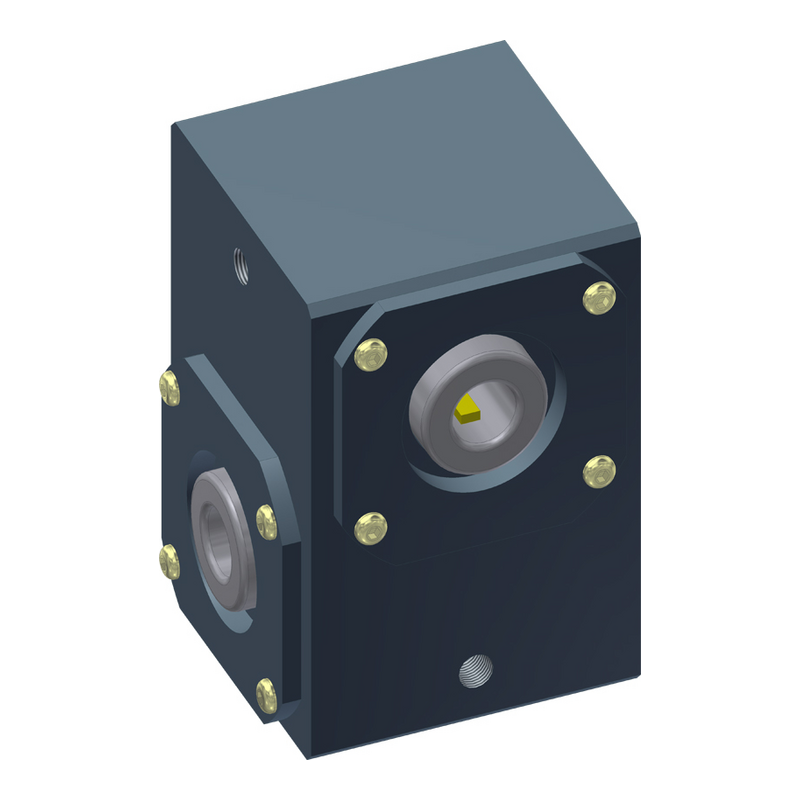

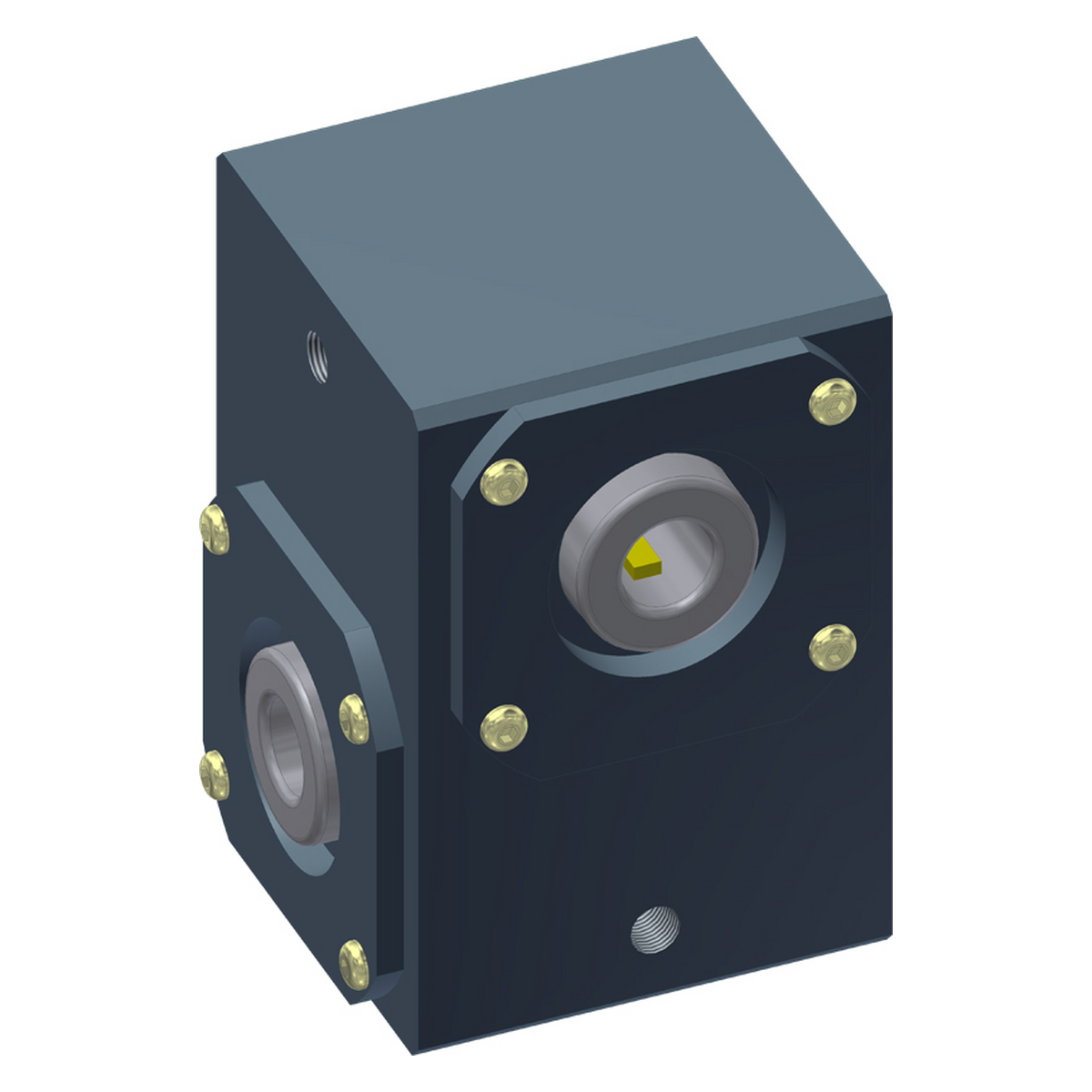

Insert-A-Shaft® Series 20 Right Angle Gearbox, 1:1 Ratio, Left Hand Rotation, 'A' Bore 1.00 in. x 'B' Bore 1.00 in.

  • 2.0 inch Bore Center Line Distance
  • (4) R20 Double Sealed Ball Bearings
  • Sealed, Leak Proof Gearcase
  • Aluminum Construction
  • Hardcoated
  • 8620 Heat Treated Case Hardened 20 Tooth Gears
  • Pre-Lubricated w/Magnalube®-G GR2 HTEP
  • (2) Keys Included
Click image to enlarge

Configure Your CAD File
