4306-0023

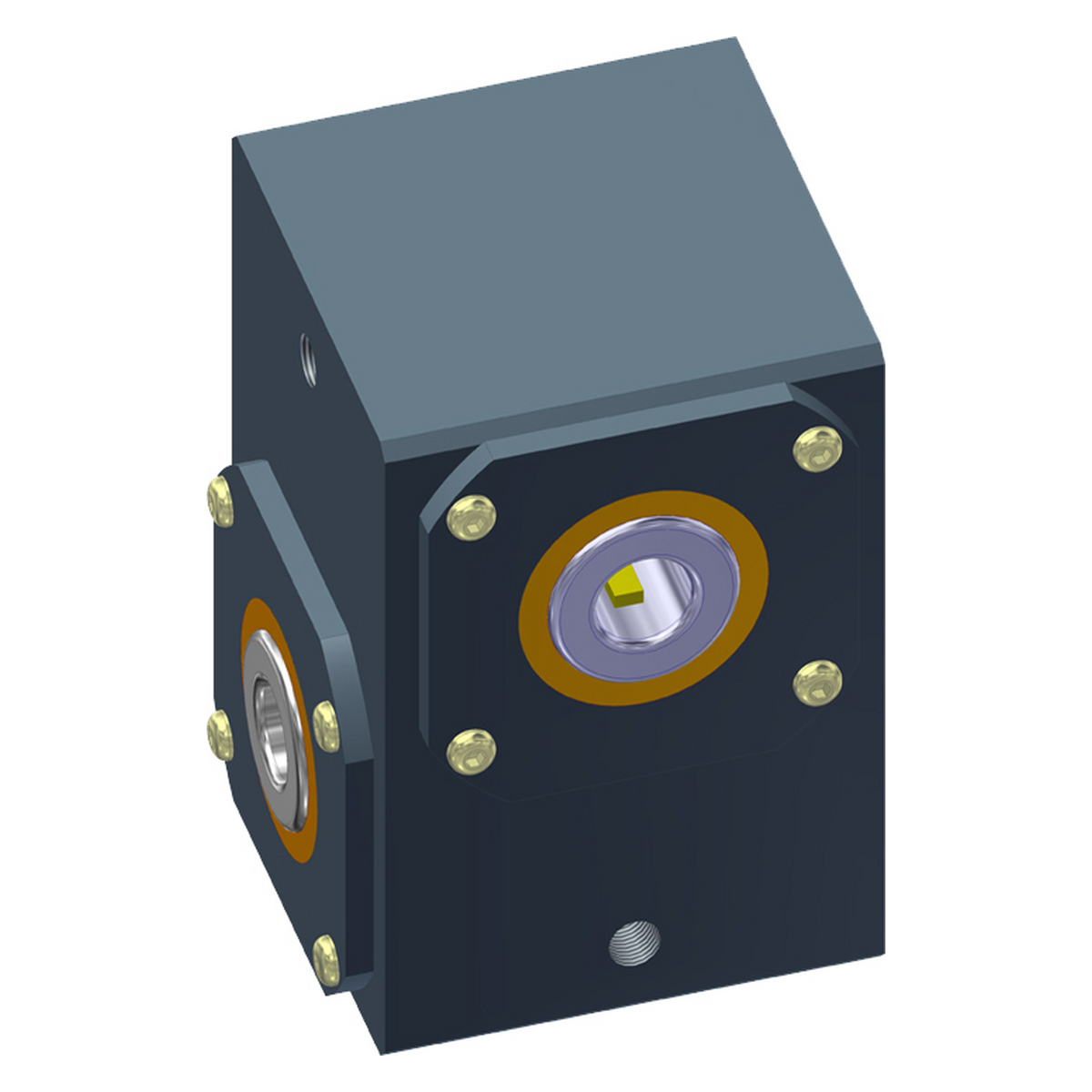

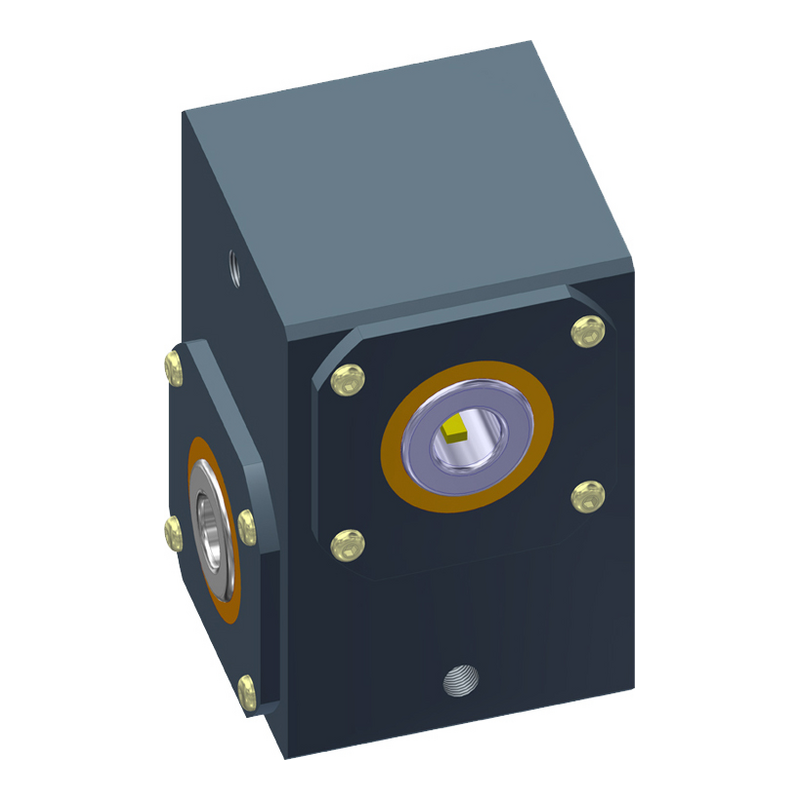

Insert-A-Shaft^® Series 20 Right Angle Gearbox with Continuous Recirculating Lubricant (CRL^™), 1:1 Ratio, Flush Mount, Left Hand Rotation, 'A' Bore .750 in. x 'B' Bore .750 in.

• 2.0 inch Bore Center Line Distance
• Designed for High Cycle, Continuous Duty
• Pre-Lubricated w/Lubriplate 1500 Grade 00
• 4 Ea. Heavy Duty R20 Double Sealed Ball Bearings
• 8620 Heat Treated Case Hardened 20 Tooth Gears
• 4 Ea. Spring Loaded Shaft Seals
• Sealed, Leak Proof Gearcase
• Cast Aluminum Construction
• Hardcoated
• (2) Keys Included

Pre-Production at this time. Consult factory for availability. 3D STEP CAD files available for ALL gearboxes. Please tell us your desired product number(s).
