4306-0035

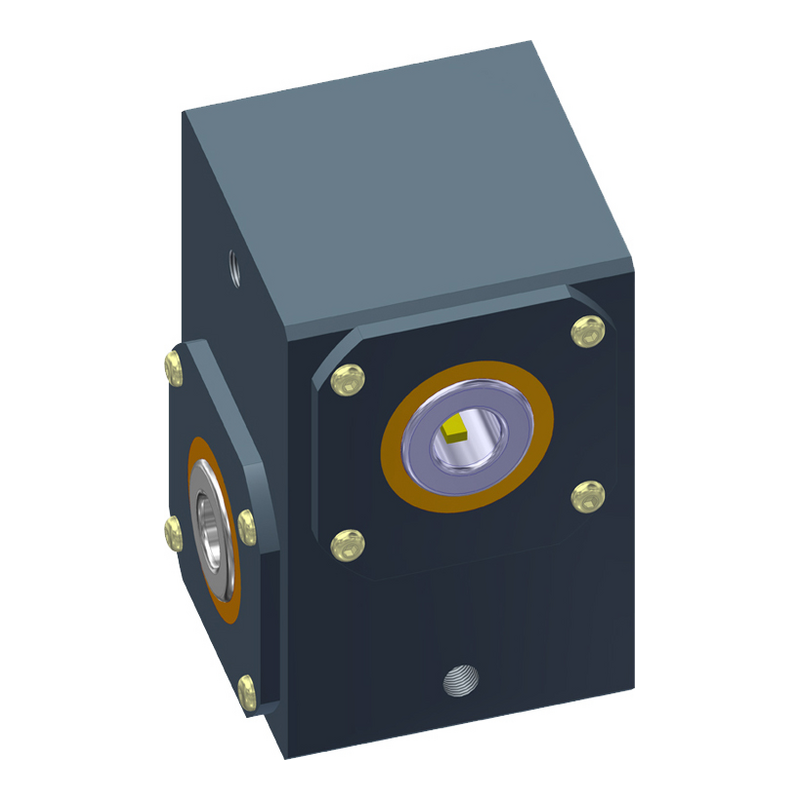

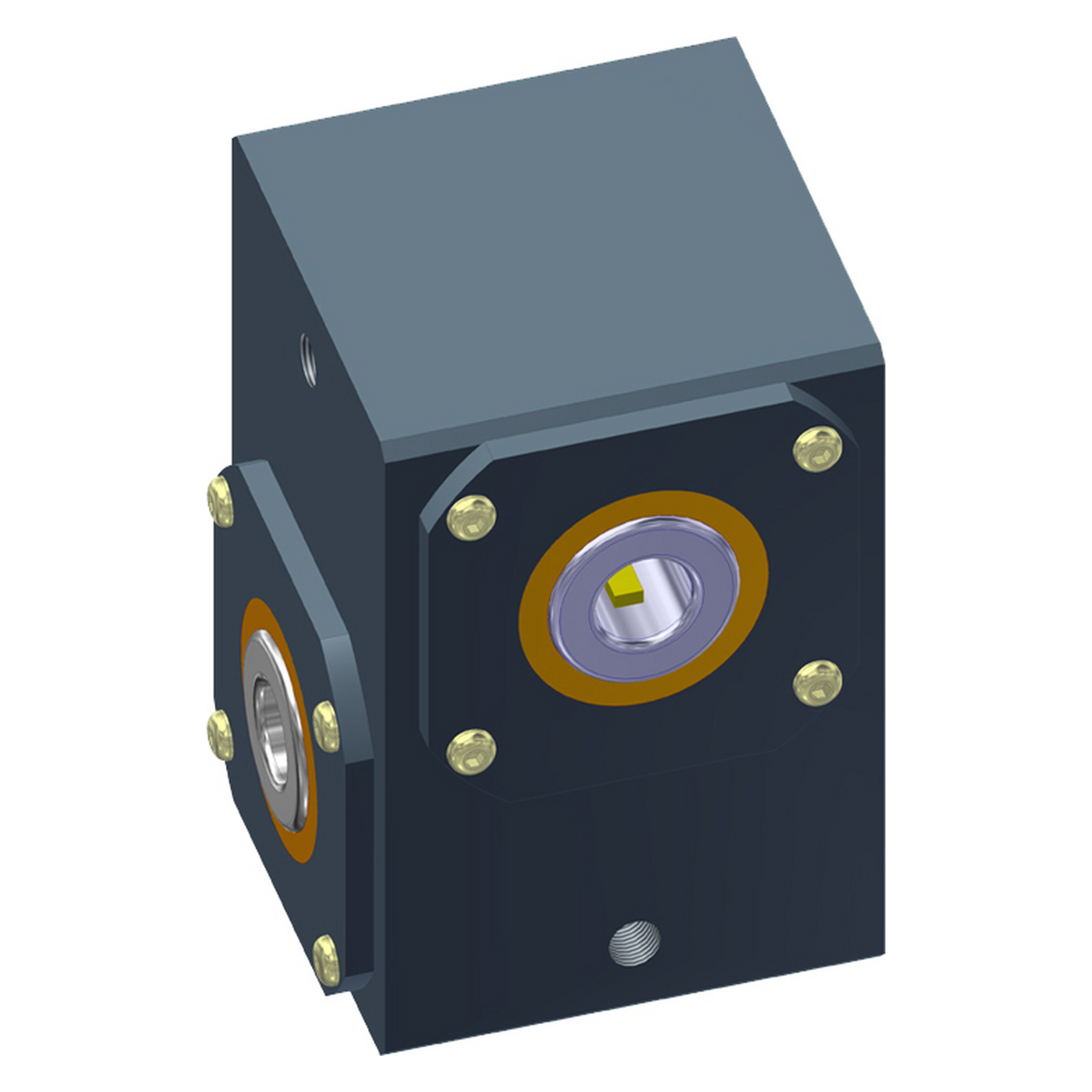

Insert-A-Shaft® Series 20 Right Angle Gearbox with Continuous Recirculating Lubricant (CRL), 1:1 Ratio, Flush Mount, Left Hand Rotation, 'A' Bore 1.00 in. x 'B' Bore .625 in.

  • 2.0 inch Bore Center Line Distance
  • Designed for High Cycle, Continuous Duty
  • Pre-Lubricated w/Lubriplate 1500 Grade 00
  • 4 Ea. Heavy Duty R20 Double Sealed Ball Bearings
  • 8620 Heat Treated Case Hardened 20 Tooth Gears
  • 4 Ea. Spring Loaded Shaft Seals
  • Sealed, Leak Proof Gearcase
  • Cast Aluminum Construction
  • Hardcoated
  • (2) Keys Included

Pre-Production at this time. Consult factory for availability. 3D STEP CAD files available for ALL gearboxes. Please tell us your desired product number(s).
