4306-0635

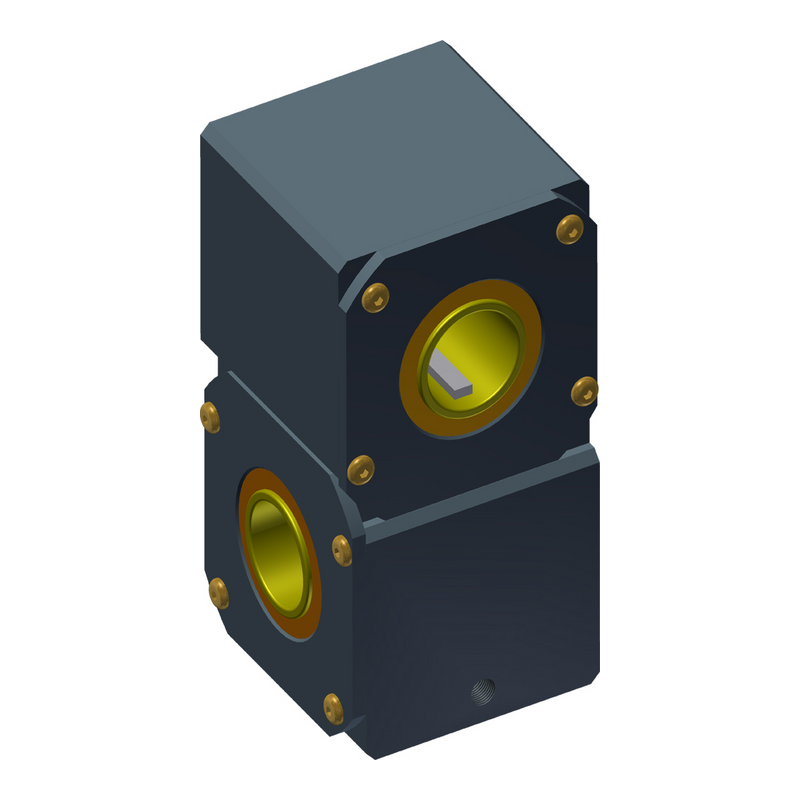

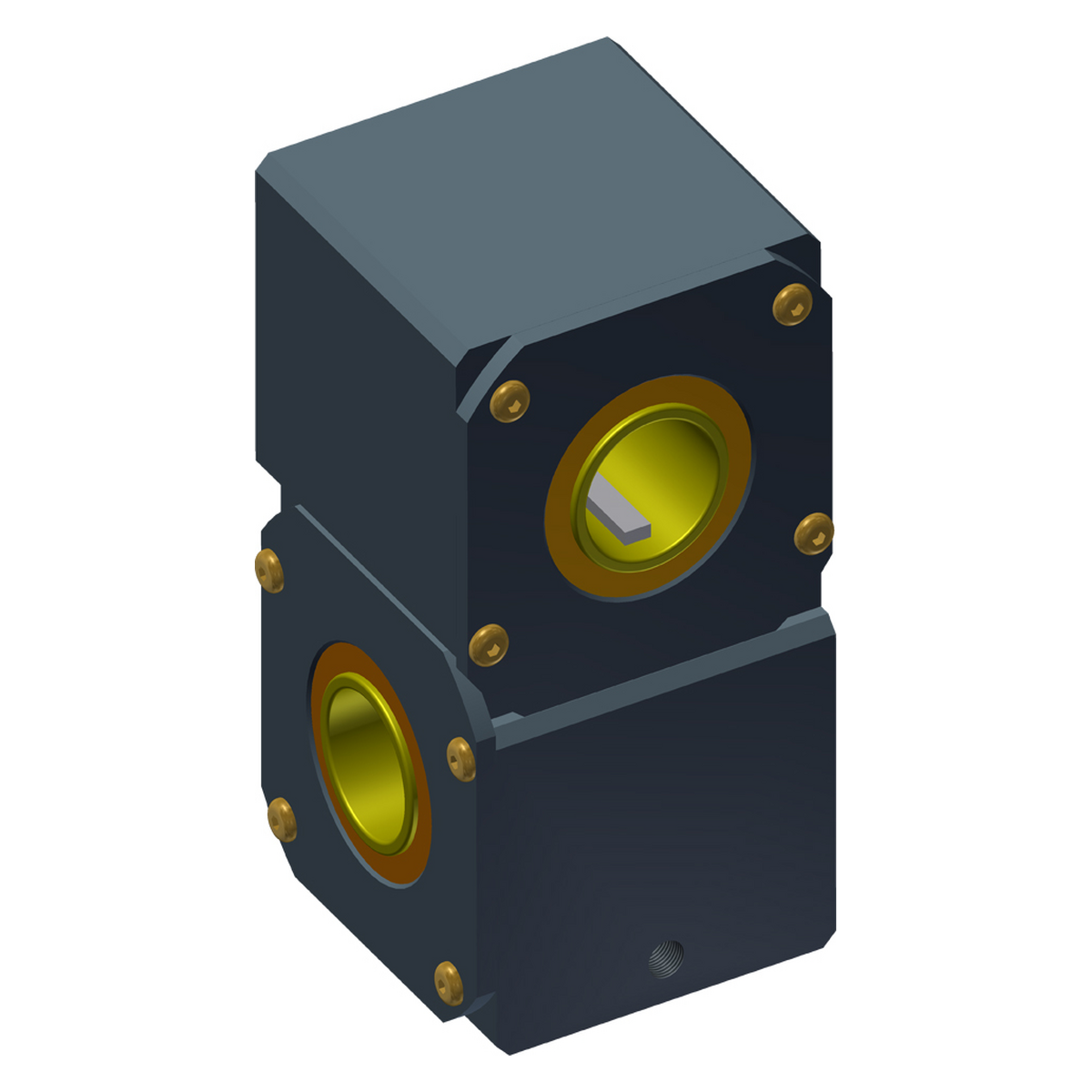

Insert-A-Shaft® Series 30 Right Angle Gearbox with Continuous Recirculating Lubricant (CRL), 1:1 Ratio, Standard Mount, Left Hand Rotation, 'A' Bore 1.25 in. x 'B' Bore 1.00 in.

  • 3.0 in. Bore Center Line Distance
  • High Cycle, Continuous Duty
  • 4 Ea. Heavy Duty R24 Double Sealed Ball Bearings
  • 4 Ea. Spring Loaded Shaft Seals
  • Sealed, Leak Proof Gearcase
  • Cast Aluminum Construction
  • Hardcoated
  • 8620 Heat Treated Case Hardened Gears
  • Pre-Lubricated w/Lubriplate 1500
  • (2) Keys Included

Pre-Production at this time. Consult factory for availability.
