4306-0641

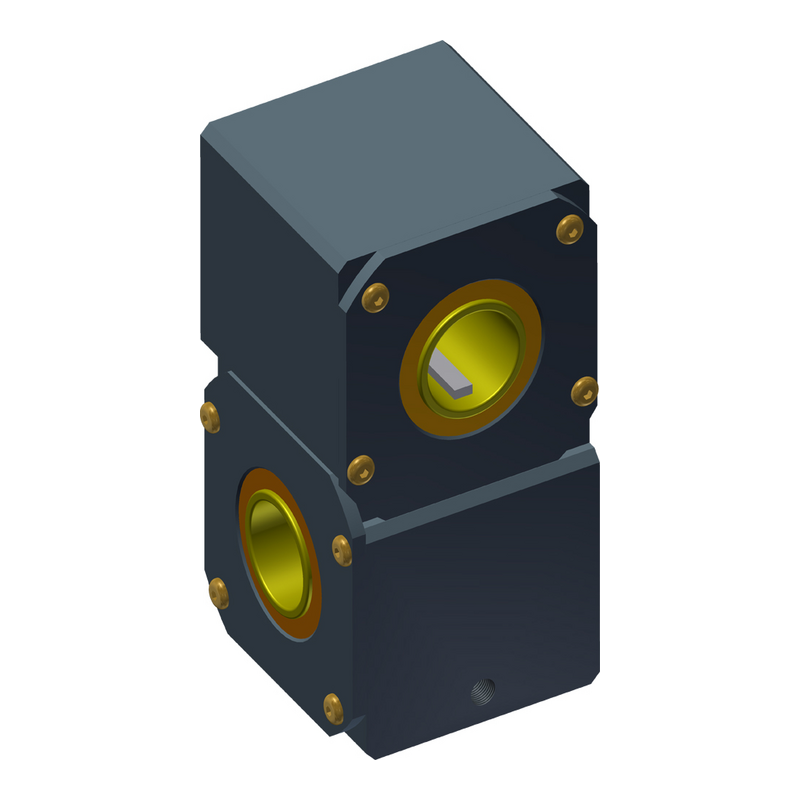

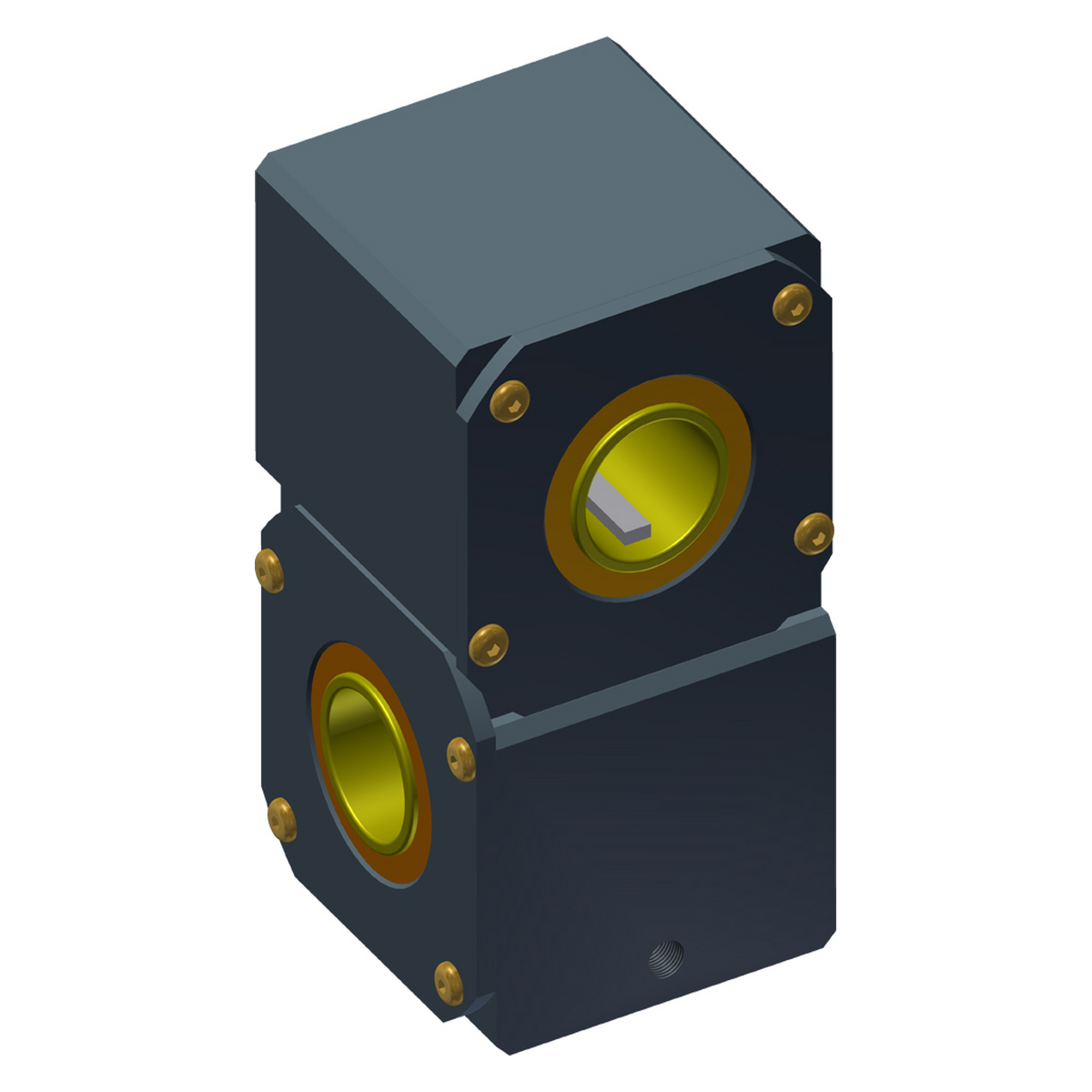

Insert-A-Shaft^® Series 30 Right Angle Gearbox with Continuous Recirculating Lubricant (CRL^™), 1:1 Ratio, Standard Mount, Left Hand Rotation, 'A' Bore 1.00 in. x 'B' Bore 1.00 in.

• 3.0 in. Bore Center Line Distance
• High Cycle, Continuous Duty
• 4 Ea. Heavy Duty R24 Double Sealed Ball Bearings
• 4 Ea. Spring Loaded Shaft Seals
• Sealed, Leak Proof Gearcase
• Cast Aluminum Construction
• Hardcoated
• 8620 Heat Treated Case Hardened Gears
• Pre-Lubricated w/Lubriplate 1500
• (2) Keys Included

Pre-Production at this time. Consult factory for availability.
