4306-0657

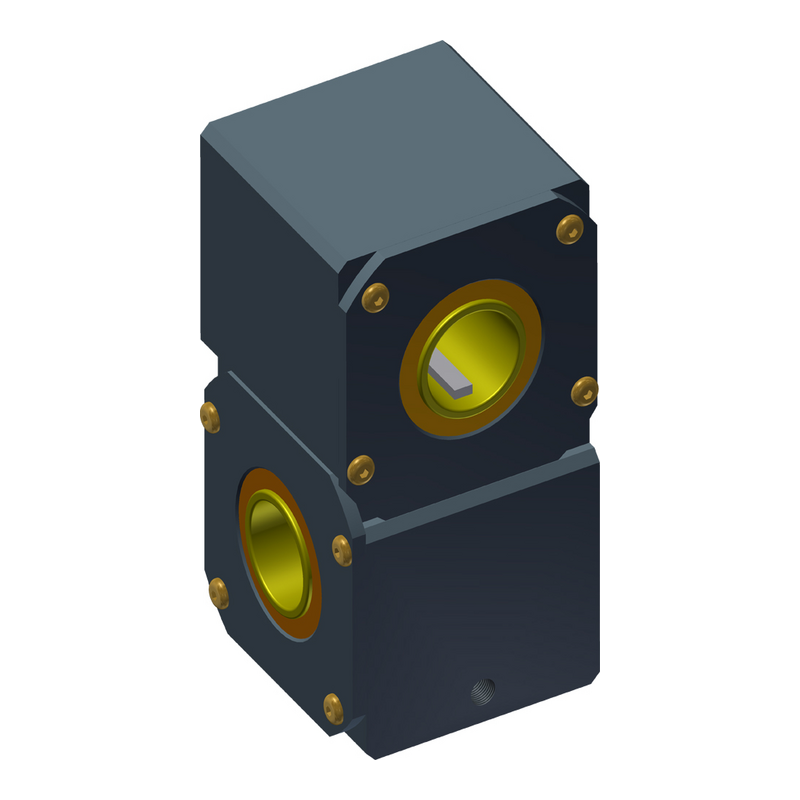

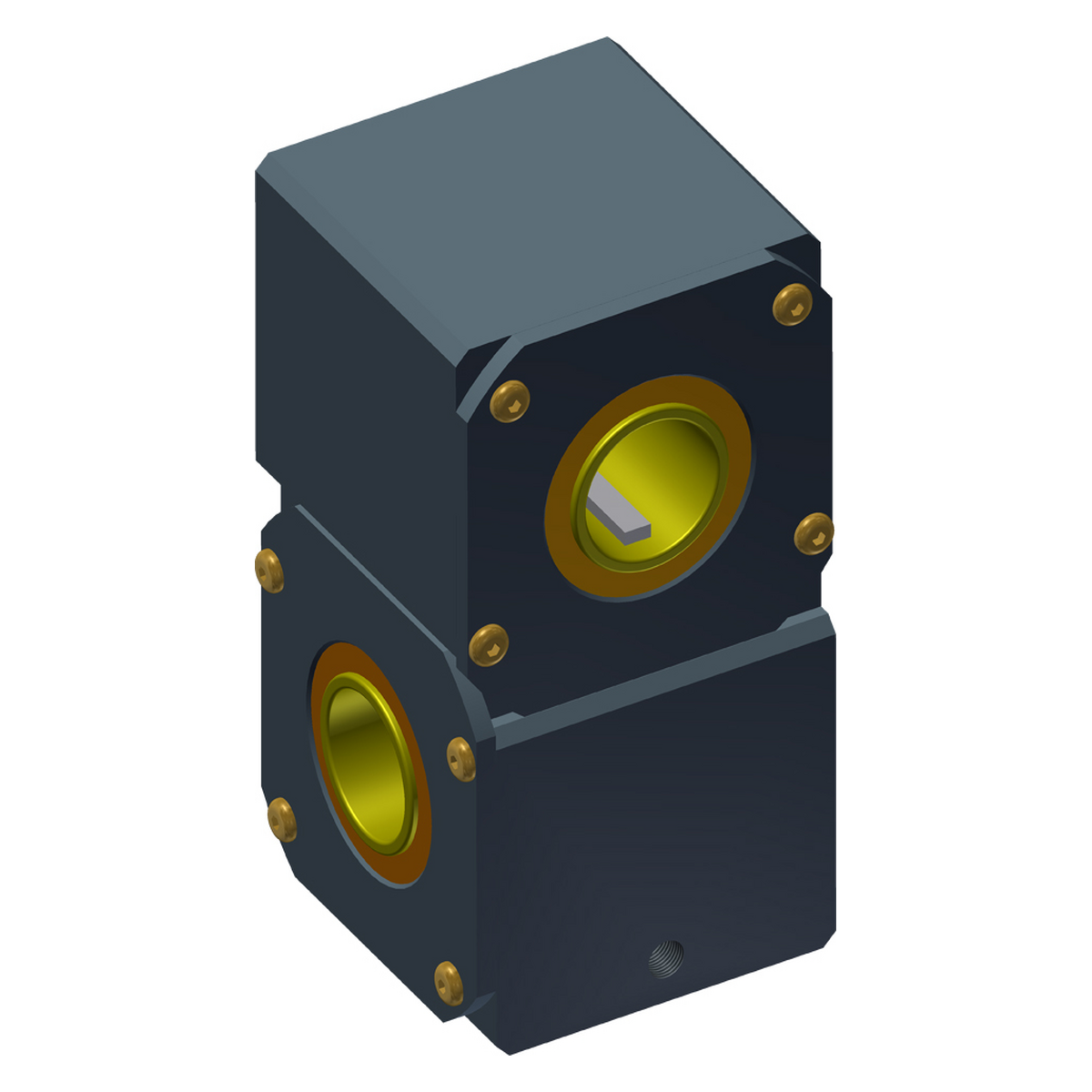

Insert-A-Shaft^® Series 30 Metric Right Angle Gearbox with Continuous Recirculating Lubricant (CRL^™), 1:1 Ratio, Standard Mount, Left Hand Rotation, 'A' Bore 30mm x 'B' Bore 20mm

• 76.2mm (3.0 in.) Bore Center Line Distance
• High Cycle, Continuous Duty
• 4 Ea. Heavy Duty R24 Double Sealed Ball Bearings
• 4 Ea. Spring Loaded Shaft Seals
• Sealed, Leak Proof Gearcase
• Cast Aluminum Construction
• Hardcoated
• 8620 Heat Treated Case Hardened Gears
• Pre-Lubricated w/Lubriplate 1500
• (2) Keys Included

Pre-Production at this time. Consult factory for availability.
