PDM025.015.GS.M

Name: W.C. Branham Inc.
Address: 398 Troy St, River Falls, WI, 54022, US
Telephone: 715-426-2000
Price range: $

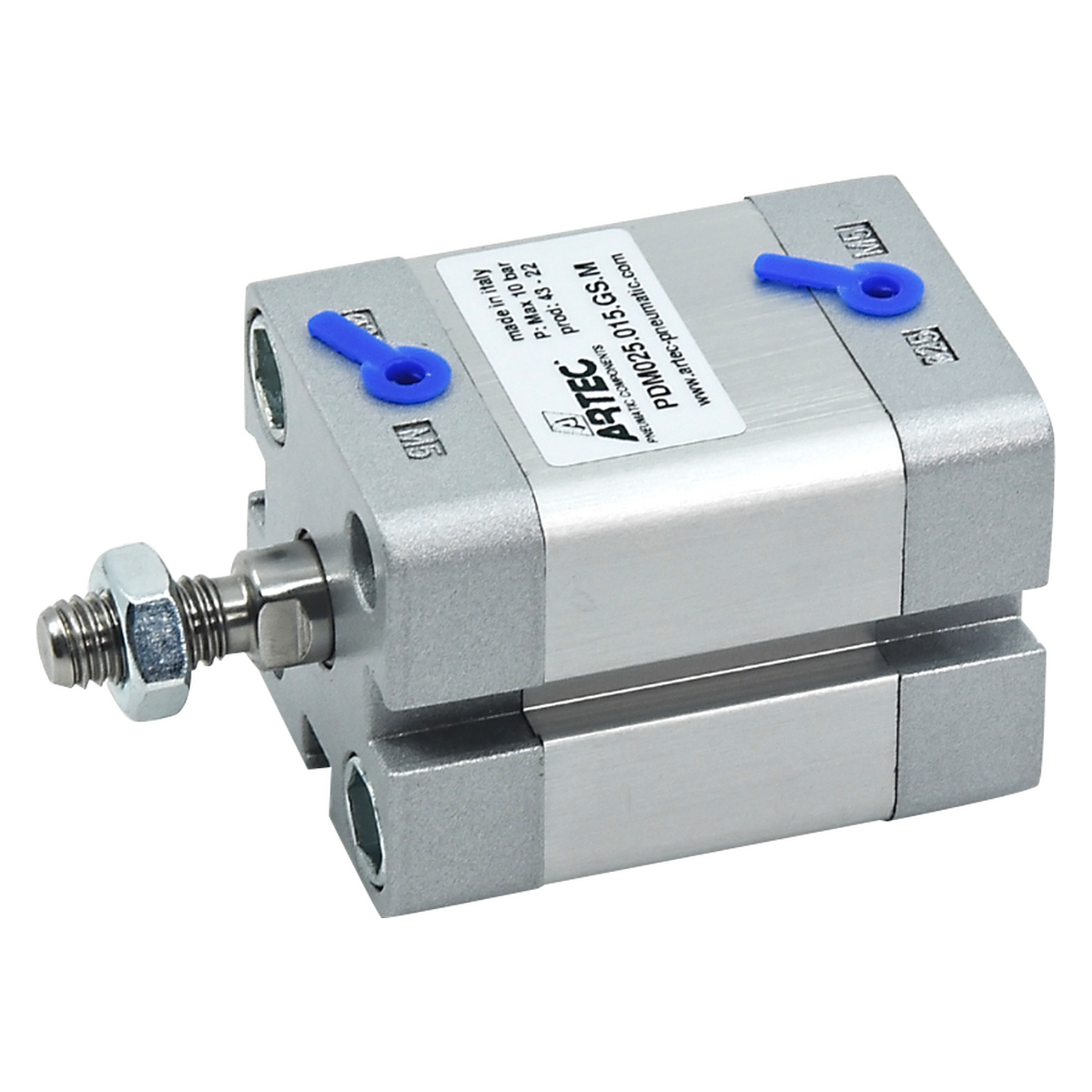

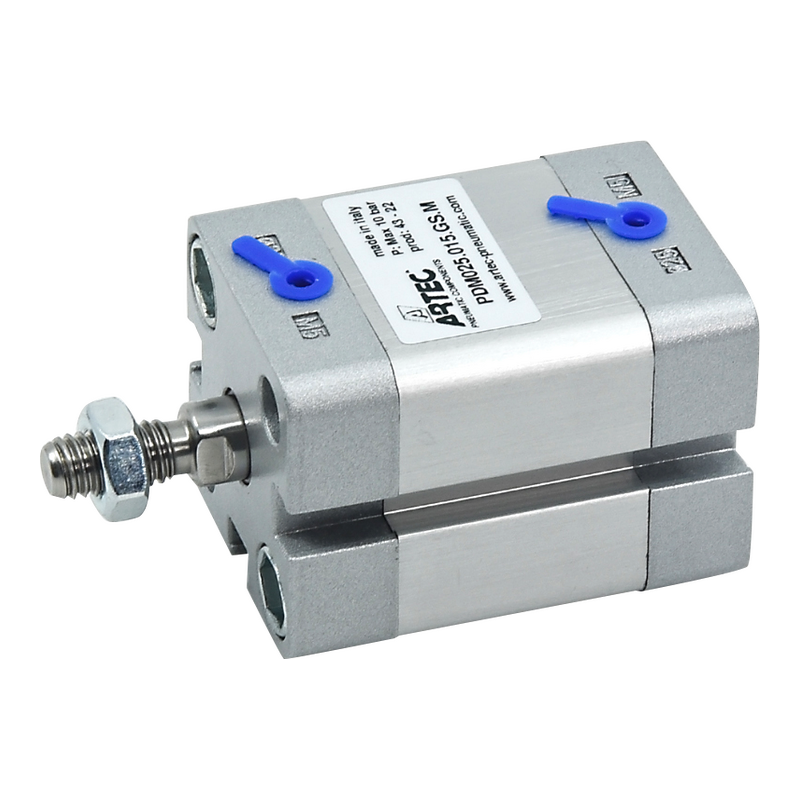

ARTEC ISO21287 CYL DAM MLE RD 25MM BORE, 15MM STK

Cylinder Type	Rod
Cylinder Style	ISO 21287
Actuation	Double
Bore Diameter (mm)	25
Stroke Length (mm)	15
Body Construction	Anodized Aluminum
Rod Diameter (mm)	10
Rod Type	Metric Single
Rod Thread	Male Fine
Rod Material	AISI 303 Stainless Steel Hard Chrome Plated
Rod Anti-Rotation	No
Mounting Style	Thru
Seal Material	NBR
Rod Seal	PU Polyurethane
Rod Bearing	Steel + PTFE
Port Thread	Metric
Port location	Top
Sensor Magnet	Yes
Brand	ARTEC®
Cushions	Fixed
Made in Italy	Yes
Port Size	M5
Pressure Maximum (bar)	10
Rod Thread Size	M8

$47.14
