PDM032.015.GS.M

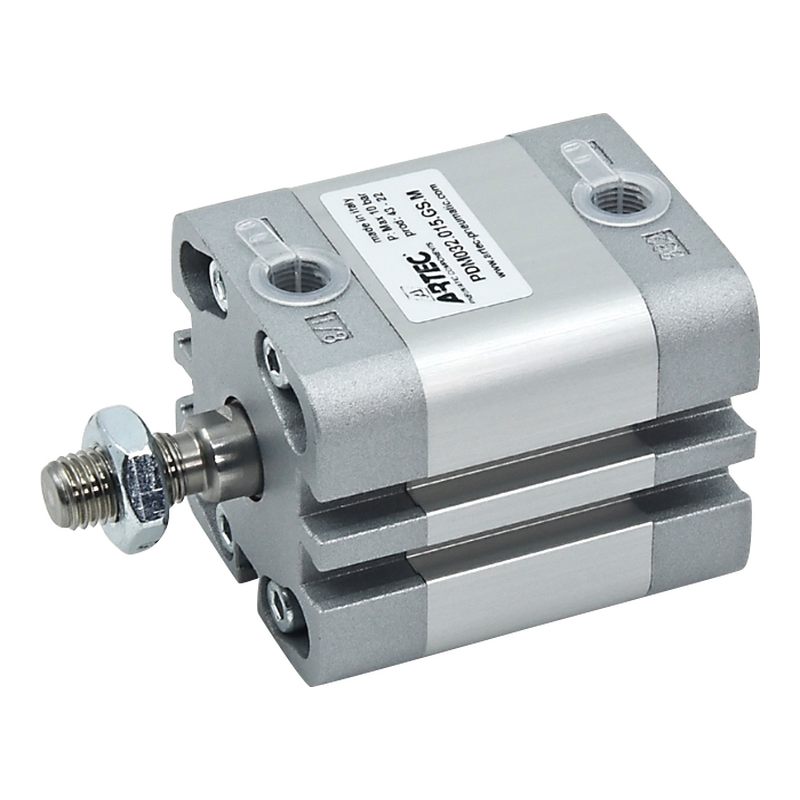

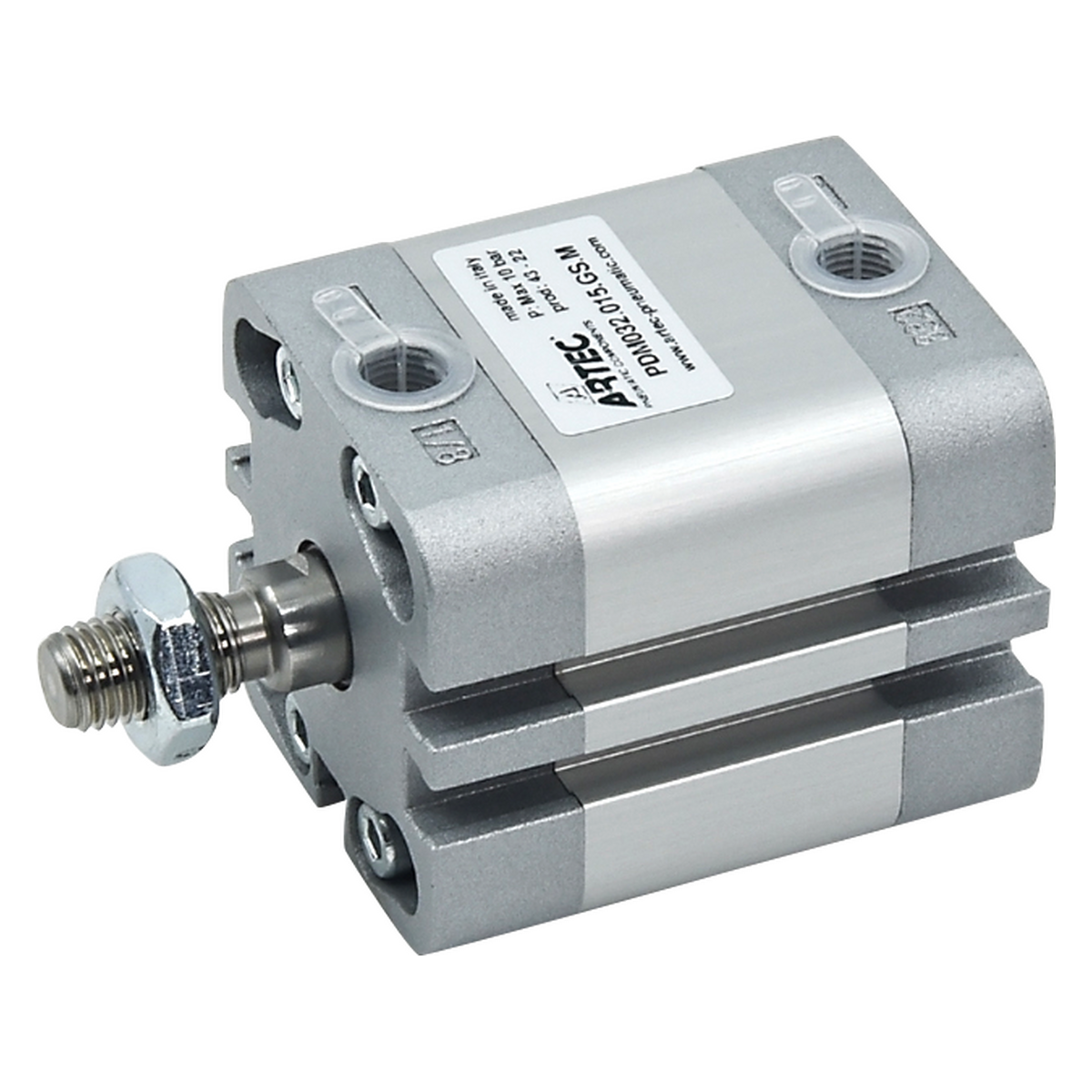

ARTEC ISO21287 CYL DAM MLE RD 32MM BORE, 15MM STK
Attributes
| Actuation | Double |
| Bore, mm. | 32 |
| ISO Standard | 21287 |
| Magnet | Yes |
| Port Size | G1/8" |
| Rod Dia., mm. | 12 |
| Rod Thread | Male - M10x1.25 |
| Seals | Std Parker |
| Stroke, mm. | 15 |
