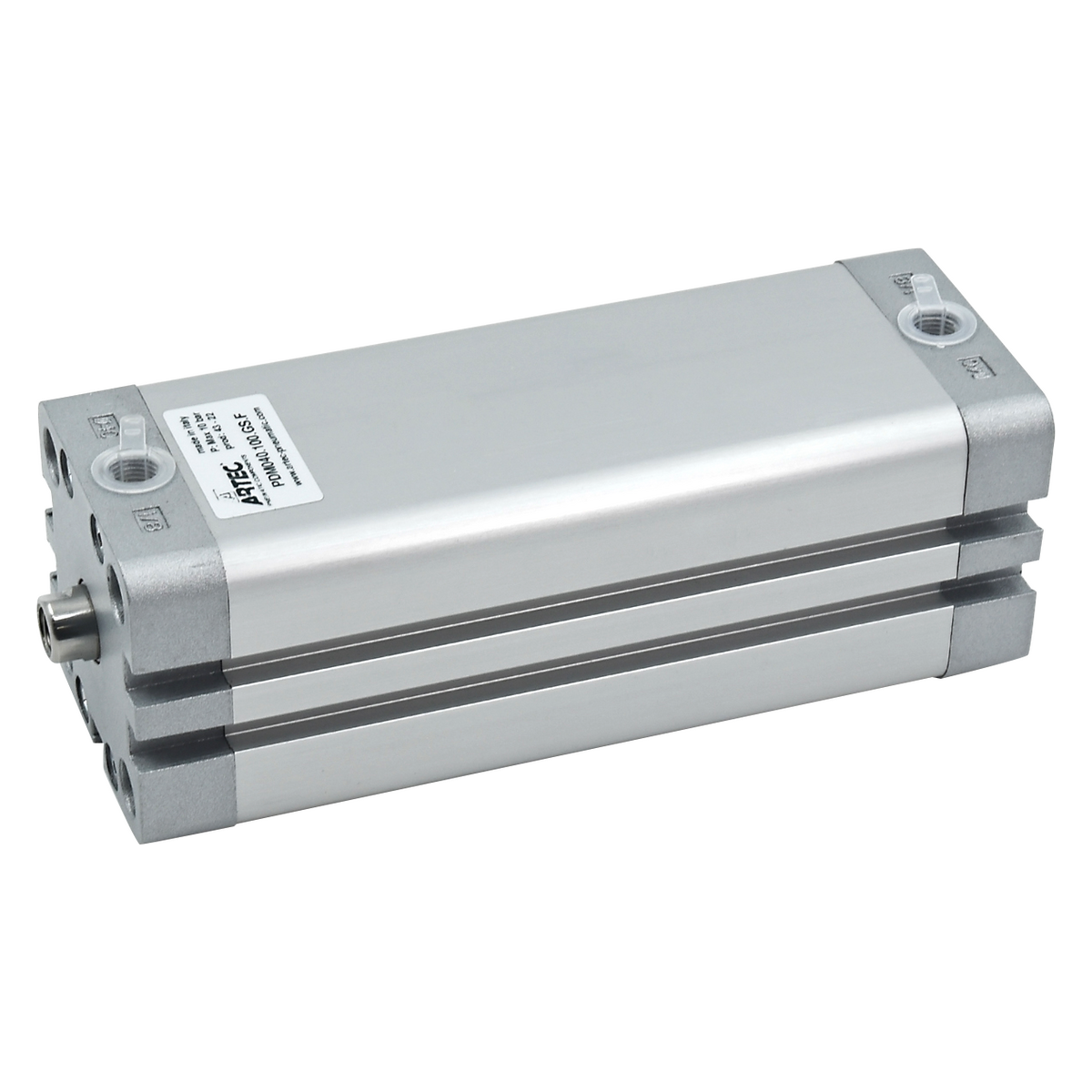

PDM040.100.GS.F
ARTEC ISO21287 CYL DAM FMLE RD 40MM BORE, 100MM SK
| Cylinder Type | Rod |
| Cylinder Style | ISO 21287 |
| Actuation | Double |
| Bore Diameter (mm) | 40 |
| Stroke Length (mm) | 100 |
| Body Construction | Anodized Aluminum |
| Rod Diameter (mm) | 12 |
| Rod Type | Metric Single |
| Rod Thread | Female Fine |
| Rod Material | AISI 303 Stainless Steel Hard Chrome Plated |
| Rod Anti-Rotation | No |
| Mounting Style | Thru |
| Seal Material | NBR |
| Rod Seal | PU Polyurethane |
| Rod Bearing | Steel + PTFE |
| Port Thread | Metric |
| Port location | Top |
| Sensor Magnet | Yes |
| Brand | ARTEC® |
| Cushions | Fixed |
| Made in Italy | Yes |
| Port Size | G1/8 |
| Pressure Maximum (bar) | 10 |
| Rod Thread Size | M8 |
