PDM050.020.GS.M

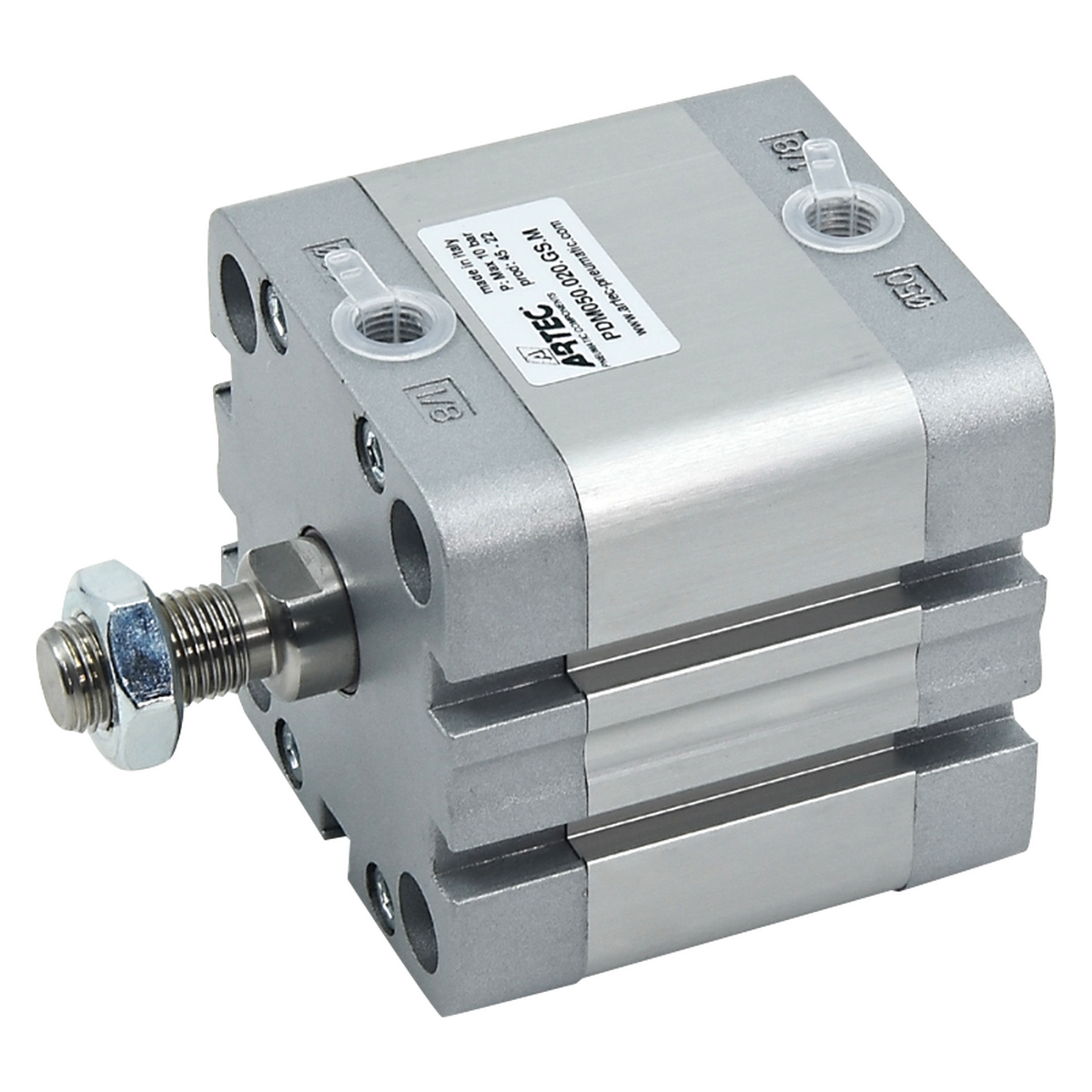

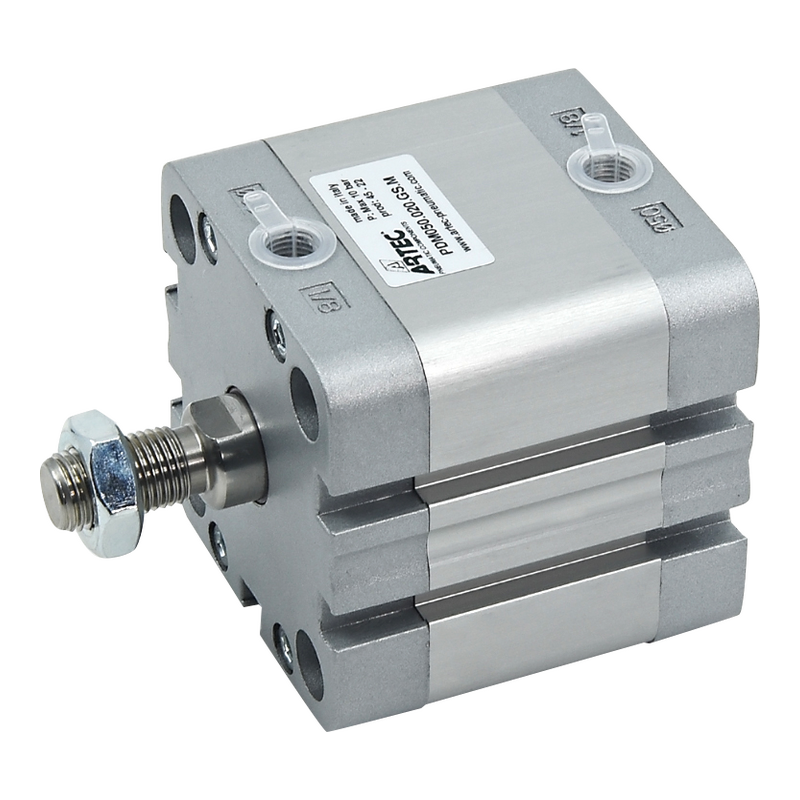

ARTEC ISO21287 CYL DAM MLE RD 50MM BORE, 20MM STK
| Cylinder Type | Rod |
| Cylinder Style | ISO 21287 |
| Actuation | Double |
| Bore Diameter (mm) | 50 |
| Stroke Length (mm) | 20 |
| Body Construction | Anodized Aluminum |
| Rod Diameter (mm) | 16 |
| Rod Type | Metric Single |
| Rod Thread | Male Fine |
| Rod Material | AISI 303 Stainless Steel Hard Chrome Plated |
| Rod Anti-Rotation | No |
| Mounting Style | Thru |
| Seal Material | NBR |
| Rod Seal | PU Polyurethane |
| Rod Bearing | Steel + PTFE |
| Port Thread | Metric |
| Port location | Top |
| Sensor Magnet | Yes |
| Brand | ARTEC® |
| Cushions | Fixed |
| Made in Italy | Yes |
| Port Size | G1/8 |
| Pressure Maximum (bar) | 10 |
| Rod Thread Size | M12X1.25 |
