PDM050.040.GS.M
ARTEC ISO21287 CYL DAM MLE RD 50MM BORE, 40MM STK
Attributes
| Actuation | Double |
| Bore, mm. | 50 |
| ISO Standard | 21287 |
| Magnet | Yes |
| Port Size | G1/8" |
| Rod Dia., mm. | 16 |
| Rod Thread | Male - M12x1.15 |
| Seals | Std Parker |
| Stroke, mm. | 40 |

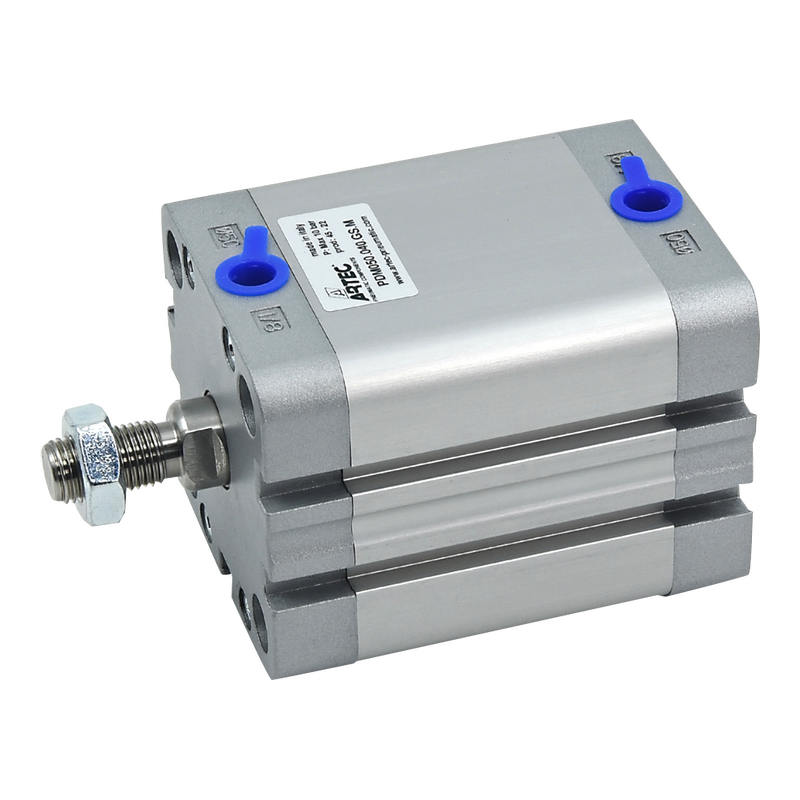

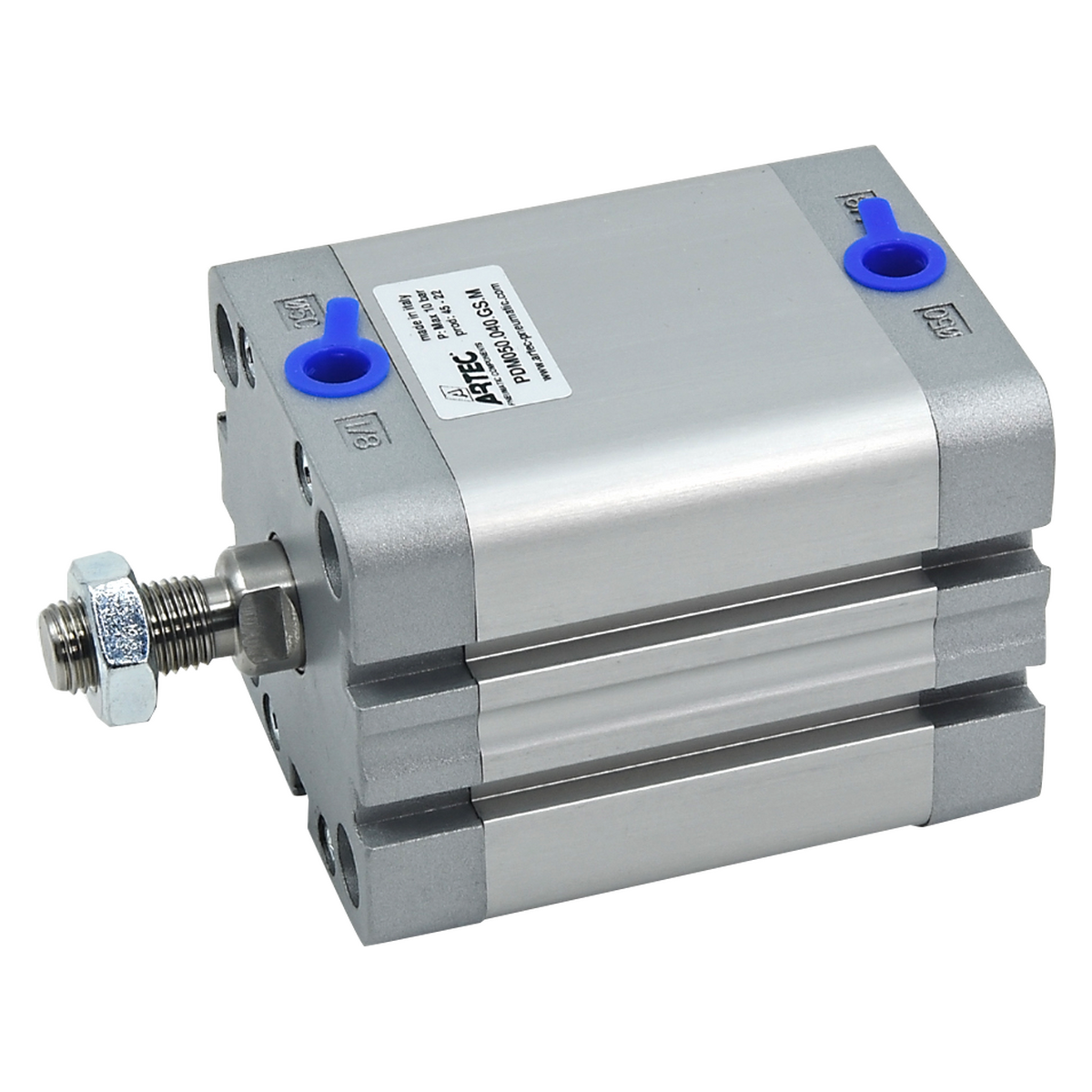

Click image to enlarge
