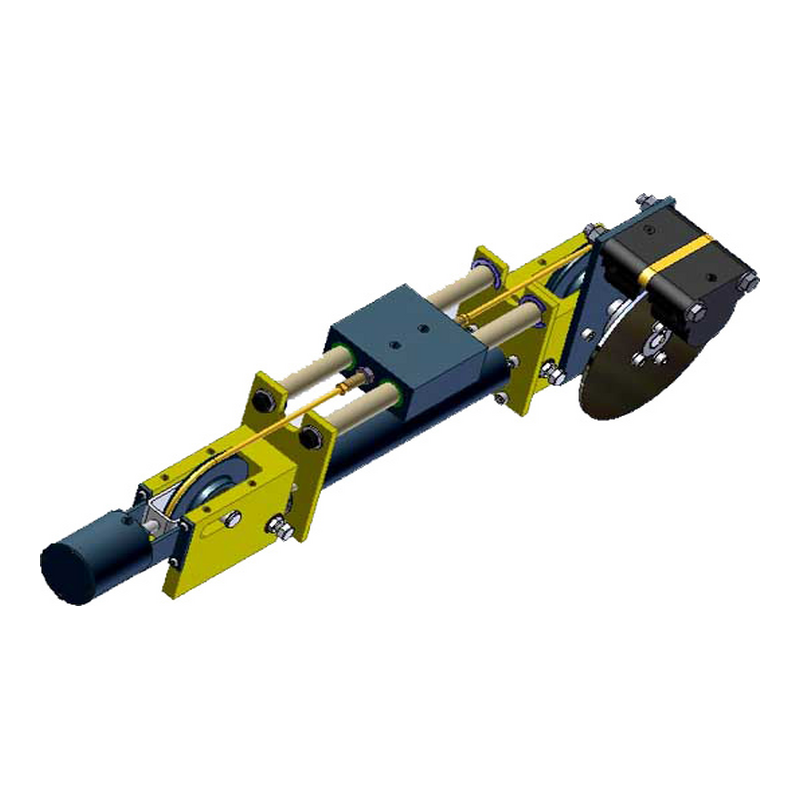

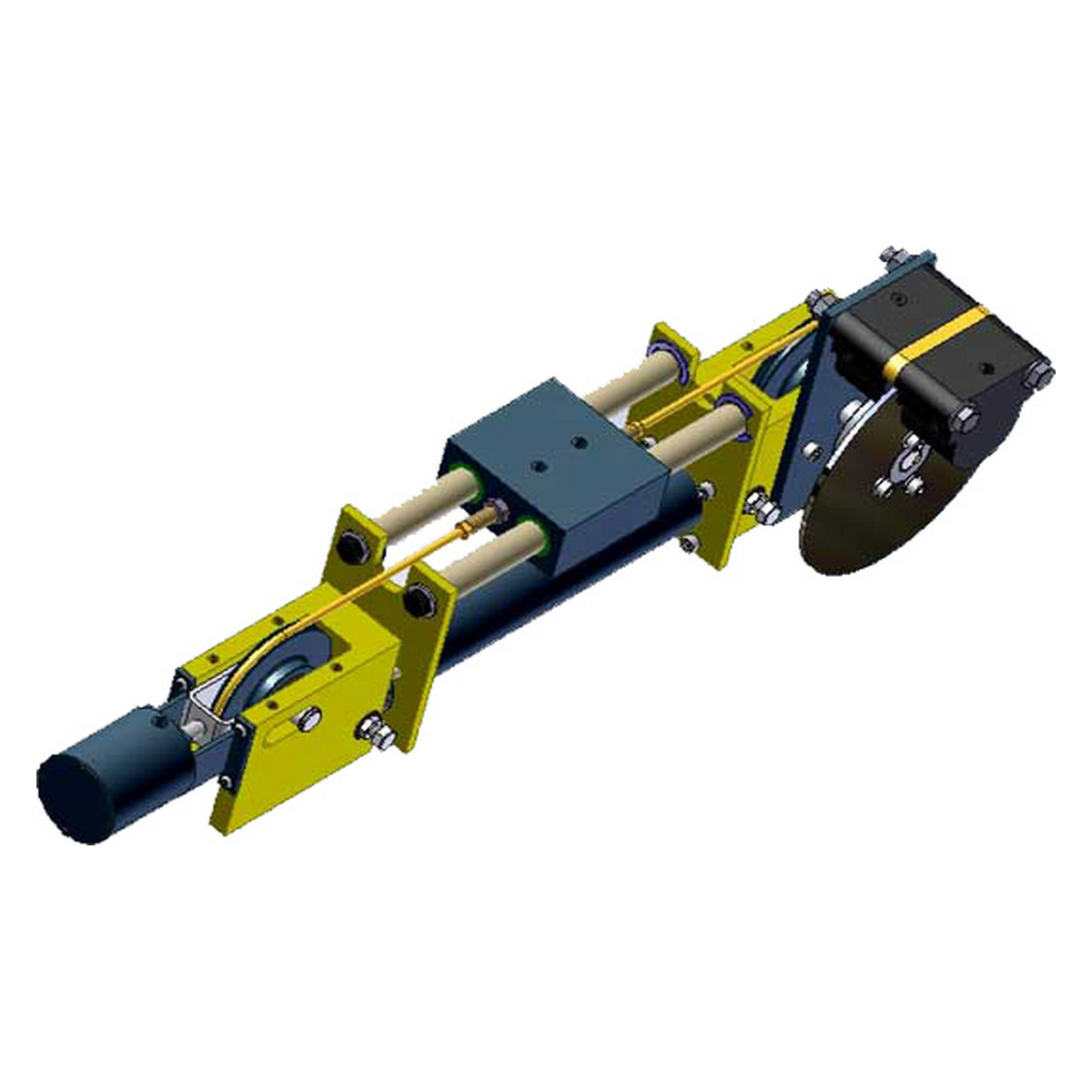

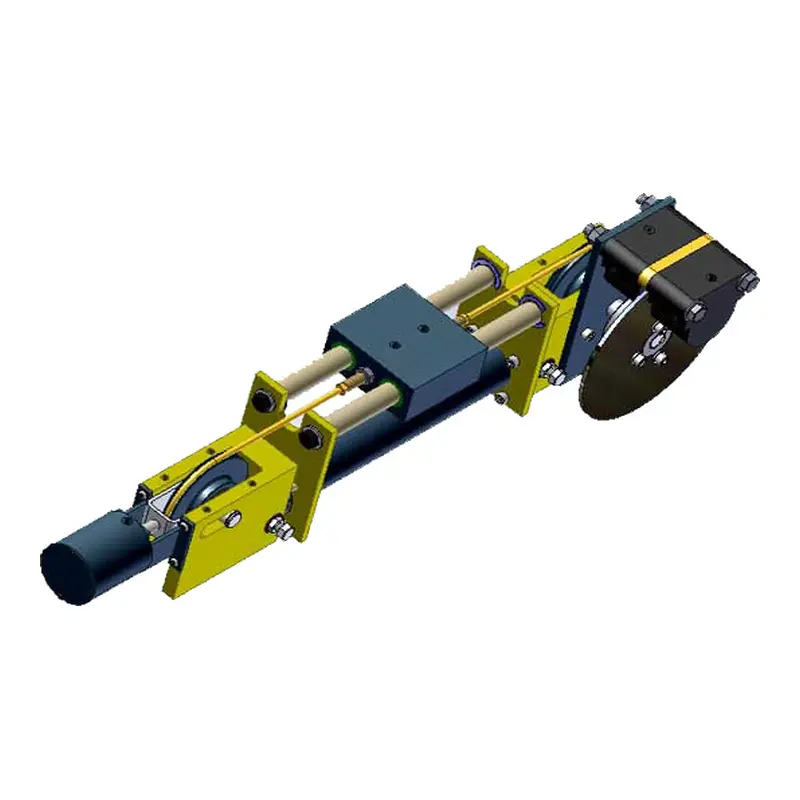

Guided Cable Cylinder, double acting with power stroke in both directions, 1.5 inch bore w/ automatic tensioner, caliper disc brake and (2) normally open reed switches.
- Maximum pressure: 100 PSI
- Operating temperature range: 20º to 140º F.
- Adjustable cushions
- 3/4 inch chrome plated guide rods
- Igus® guide bearings
|Option(s)||Tensioner, Brake, Switches|
|Force@100 PSI, lbs.||174|
|Eff. Area, in.2||1.74|
|Max. Stroke Length*, in.||100|
|Cable Wire Dia., in.||3/32|
|Cable Nylon O.D., in.||3/16|
|Strand Config||7 x 19|
|Tensile Strength, lbs.||920|
|20% Rule, lbs.||184|
