Guided Cable Cylinders Air Tensioner/Brake Models

Competitively priced with lower costs per inch of stroke. Journal guide bearings. Linear ball bearings optional.

GCC - Guided Cable Cylinders from W.C. Branham consist of a double acting cable cylinder and a pre-engineered/packaged guide and load bearing support system for self guiding and self supported loads. GCCs can be configured with reed switches, auto tensioners and caliper disc brake combinations for position holding.

W.C. Branham has been manufacturing cable cylinders since 1981.

Request a Quote
Click image to enlarge

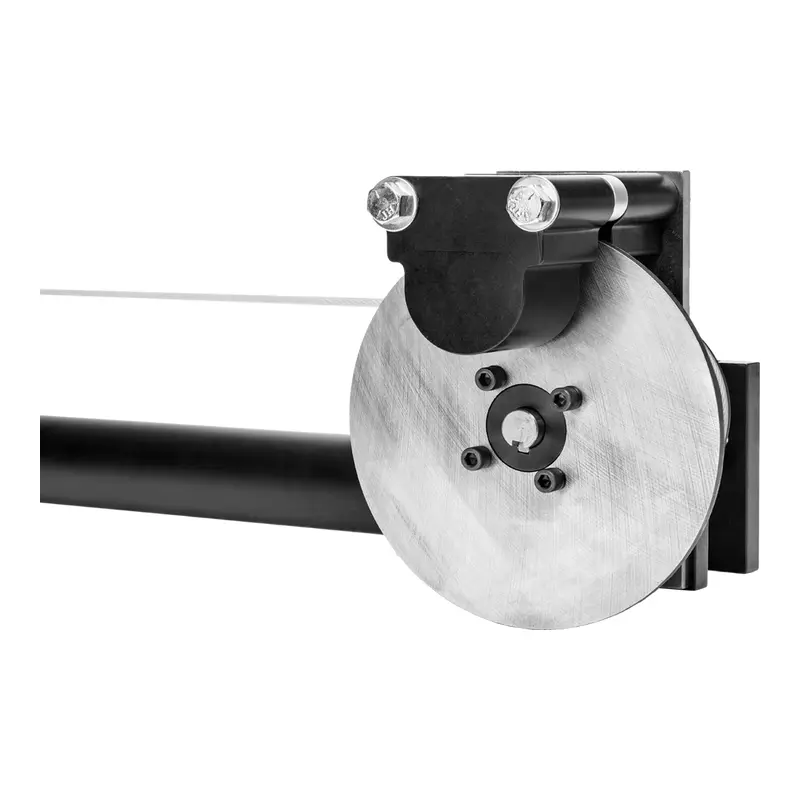

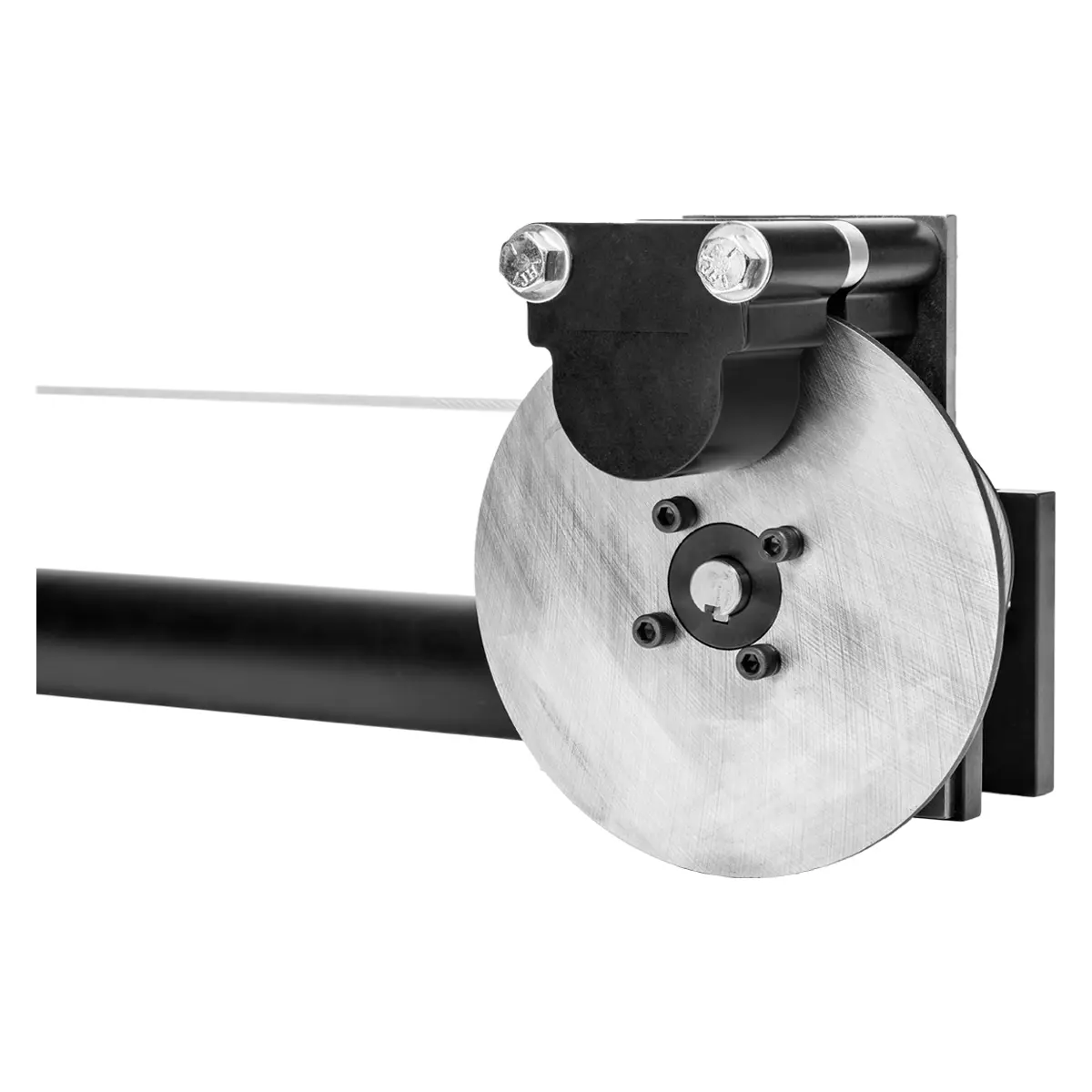

GCC1151TB | 1.5" Bore

Product # Model Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1151-0804 1.5 Tensioner, Brake, Switches 174 1.74
1151-0806 1.5 Tensioner, Brake 174 1.74
1151-0818 1.5 Tensioner, Brake, Magnet 174 1.74

GCC1203TB | 2.0" Bore

Product # Model Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1203-0803 2.0 Tensioner, Brake, Switches 309 3.09
1203-0806 2.0 Tensioner, Brake 309 3.09

GCC1206TB High Pressure | 2.0" Bore

Product # Model Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1206-0810 2.0 500, Tens., Brake, Switches 309 3.09
1206-0820 2.0 500 PSI, Tensioner, Brake 309 3.09

GCC1251TB | 2.5" Bore

Product # Model Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1251-0811 2.5 Tensioner, Brake 486 4.86
1251-0813 2.5 Tensioner, Brake, Switches 486 4.86

GCC1301TB | 3.0" Bore

Product # Model Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1301-0807 3.0 Tensioner, Brake 699 6.99
1301-0808 3.0 Tensioner, Brake 699 6.99
1301-0809 3.0 Tensioner, Brake, Switches 699 6.99

GCC1401TB | 4.0" Bore

Product # Model Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1401-0809 4.0 Tensioner, Brake 1249 12.49
1401-0810 4.0 Tensioner, Brake, Switches 1249 12.49
1401-0820 4.0 Tensioner, Brake 1249 12.49
