1151-0818

Model: GCC1151TBM

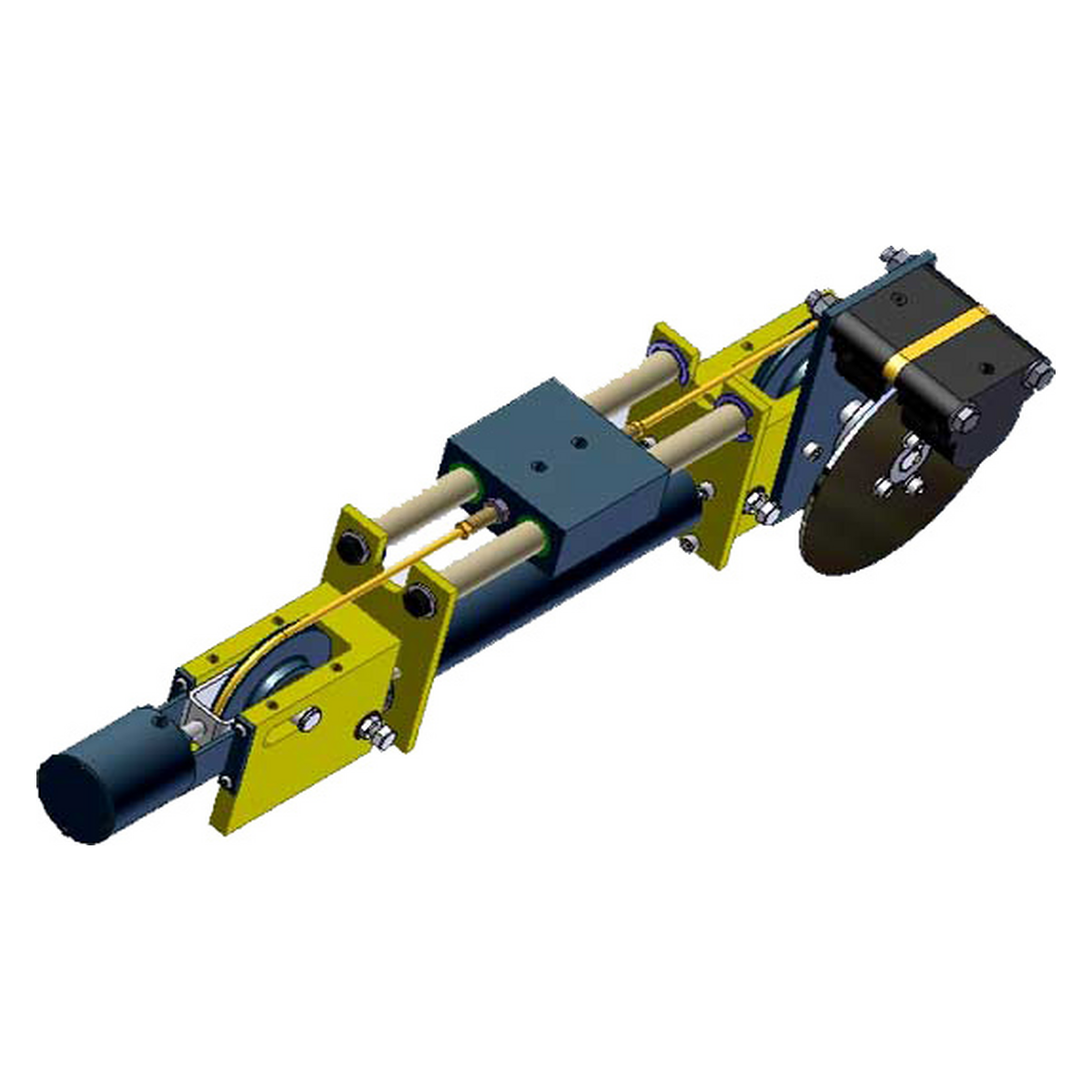

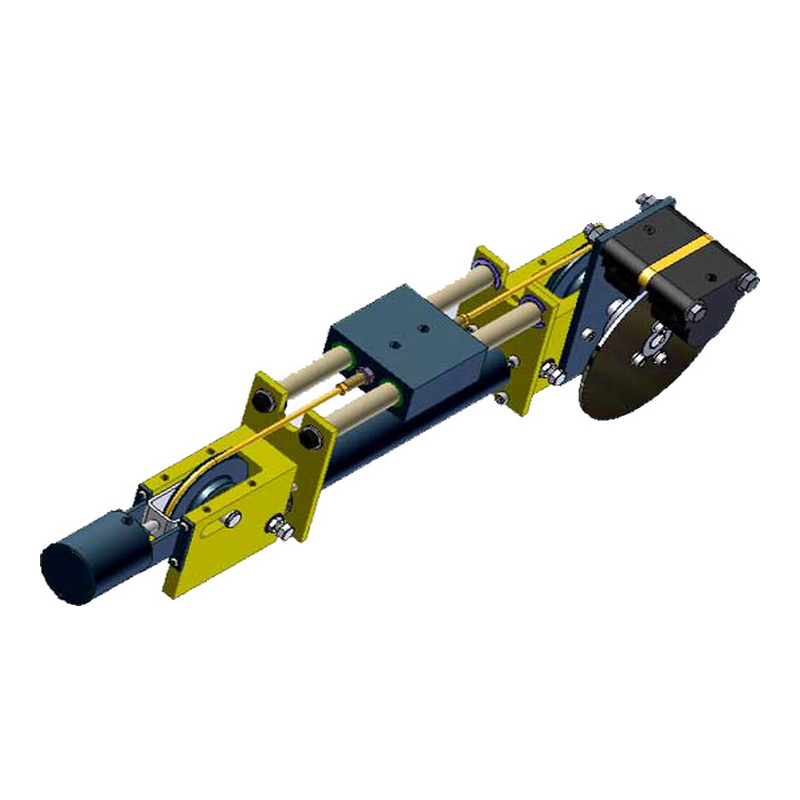

Guided Cable Cylinder, double acting with power stroke in both directions, 1.5 inch bore w/ automatic tensioner, caliper disc brake and piston magnet.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • 3/4 inch chrome plated guide rods
  • Igus® guide bearings

Attributes

Bore, in.1.5
Option(s)Tensioner, Brake, Magnet
Force@100 PSI, lbs.174
Eff. Area, in.21.74
Max. Stroke Length*, in.100
Cable Wire Dia., in.3/32
Cable Nylon O.D., in.3/16
Strand Config7 x 19
Tensile Strength, lbs.920
20% Rule, lbs.184
