1203-0806
Model: GCC1203TB

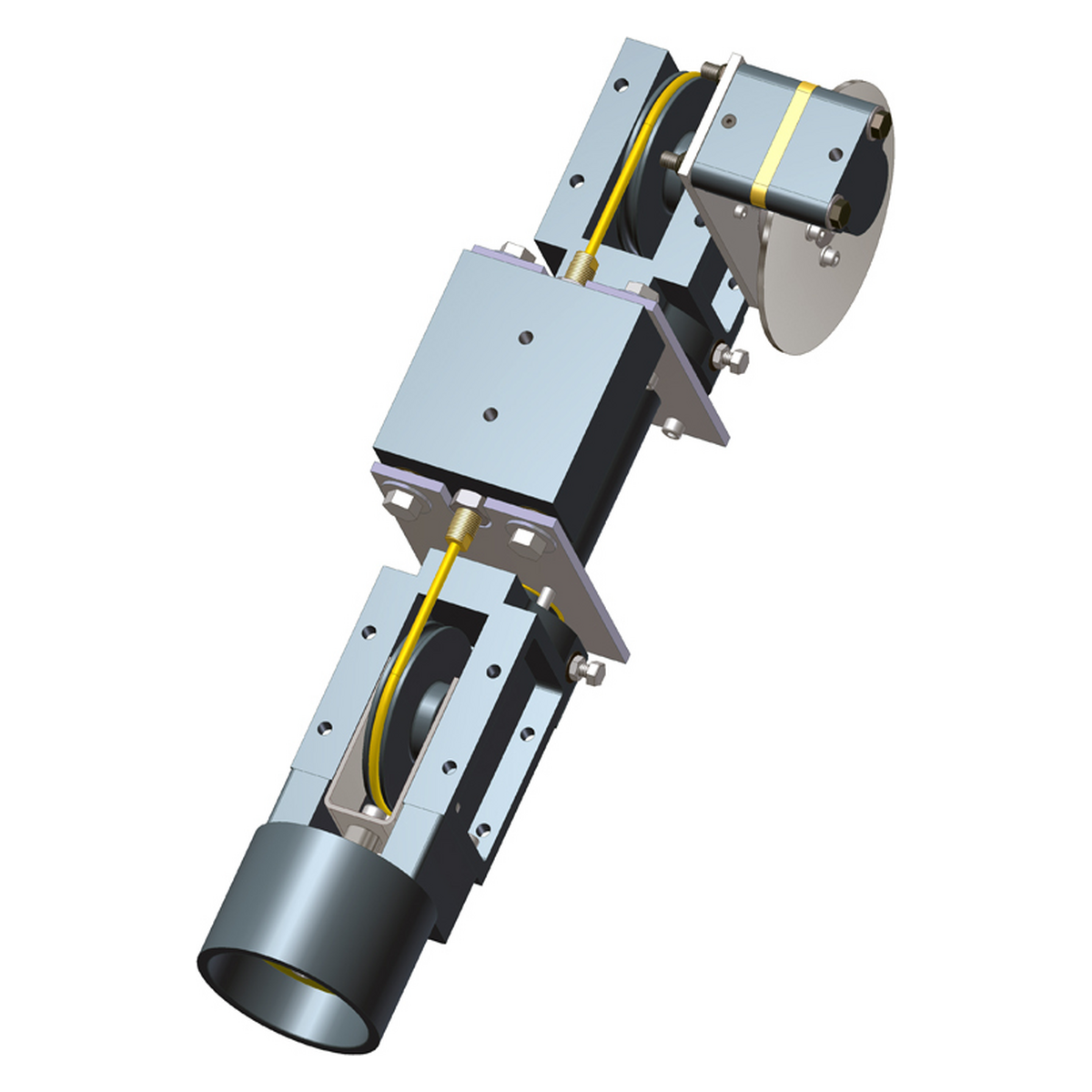

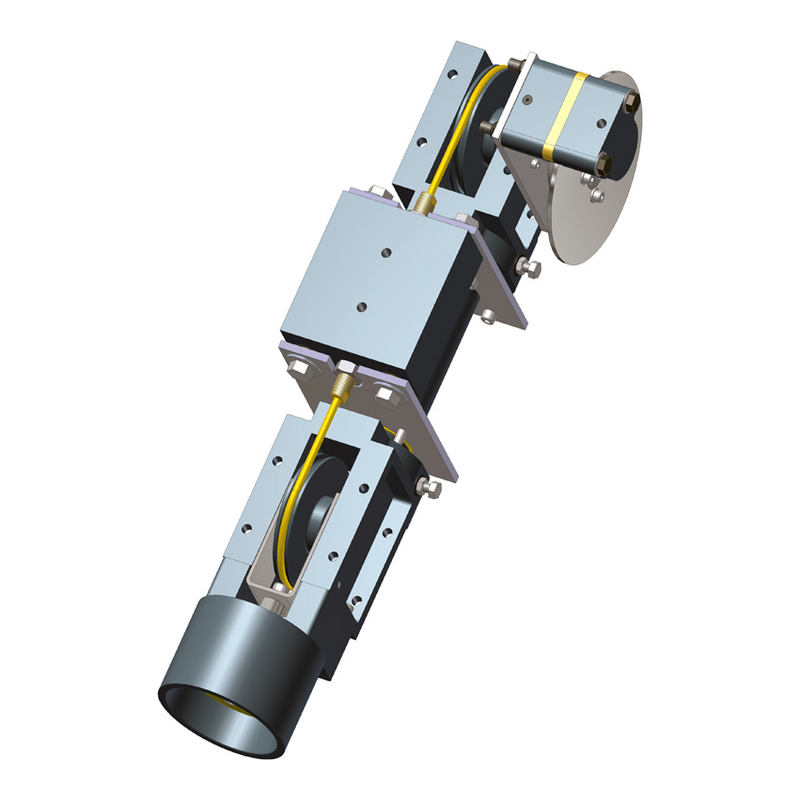

Guided Cable Cylinder, double acting with power stroke in both directions, 2.0 inch bore w/ automatic tensioner and caliper disc brake.
- Maximum pressure: 100 PSI
- Operating temperature range: 20º to 140º F.
- Adjustable cushions
- 7/8 inch chrome plated guide rods
- Igus® guide bearings
Attributes
| Model # | |
| 20% Rule, lbs. | 400 |
| Bore, in. | 2.0 |
| Cable Nylon O.D., in. | 1/4 |
| Cable Wire Dia., in. | 1/8 |
| Eff. Area, in.sq | 3.09 |
| Force@100 PSI, lbs. | 309 |
| Max. Stroke Length, in. | 100 |
| Option(s) | Tensioner, Brake |
| Strand Config | 7 x 19 |
| Tensile Strength, lbs. | 2000 |
