1206-0810
Model: GCC1206TBRS

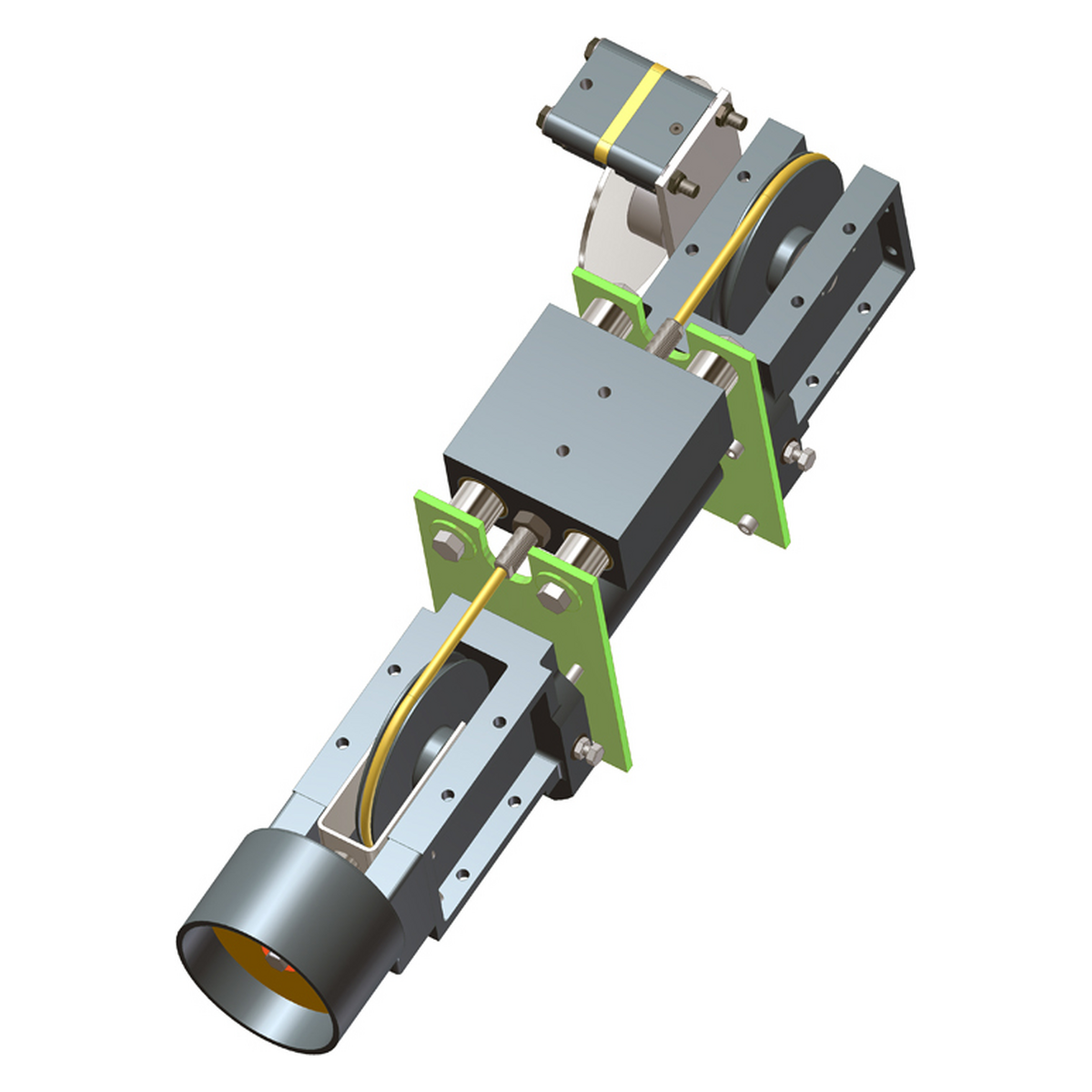

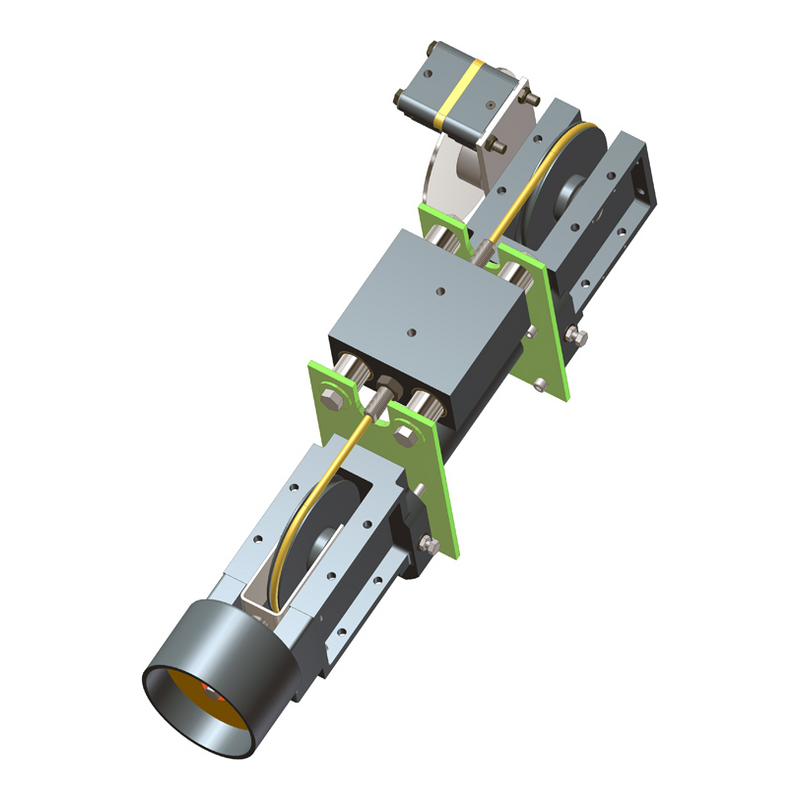

Guided Cable Cylinder, double acting with power stroke in both directions, 2.0 inch bore heavy duty w/ automatic tensioner, caliper disc brake and (2) normally open reed switches.
- Maximum pressure: 500 PSI
- Operating temperature range: 20º to 140º F.
- Adjustable cushions
- 1.25 inch chrome plated guide rods
- Igus® guide bearings
Attributes
Model # | |
20% Rule, lbs. | 840 |
Bore, in. | 2.0 |
Cable Nylon O.D., in. | 5/16 |
Cable Wire Dia., in. | 3/16 |
Eff. Area, in.sq | 3.09 |
Force@100 PSI, lbs. | 309 |
Max. Stroke Length, in. | 120 |
Option(s) | 500, Tens., Brake, Switches |
Strand Config | 7 x 19 |
Tensile Strength, lbs. | 4200 |
