1301-0809

Model: GCC1301TBRS

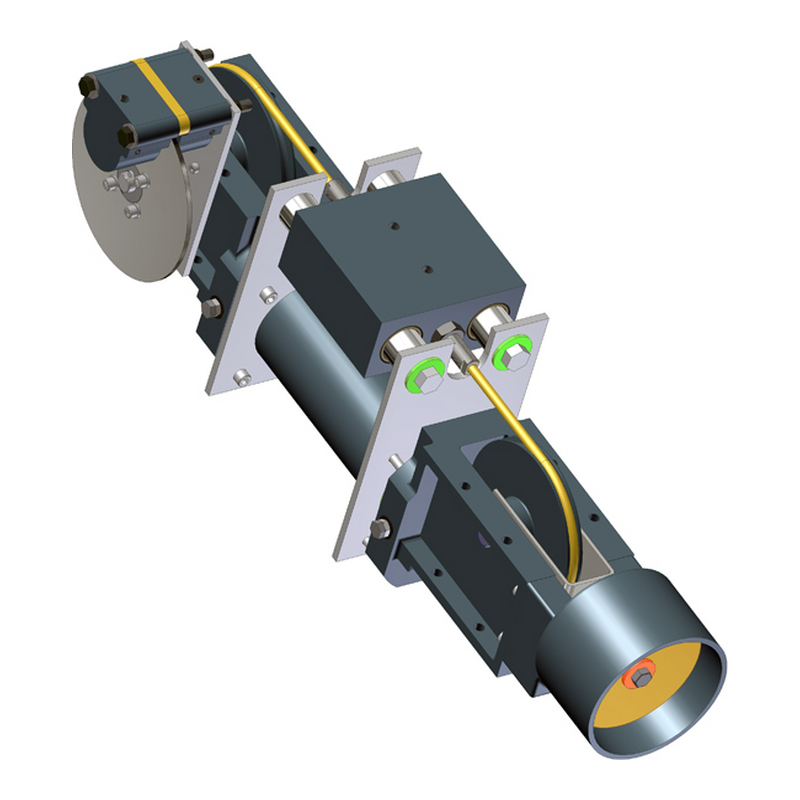

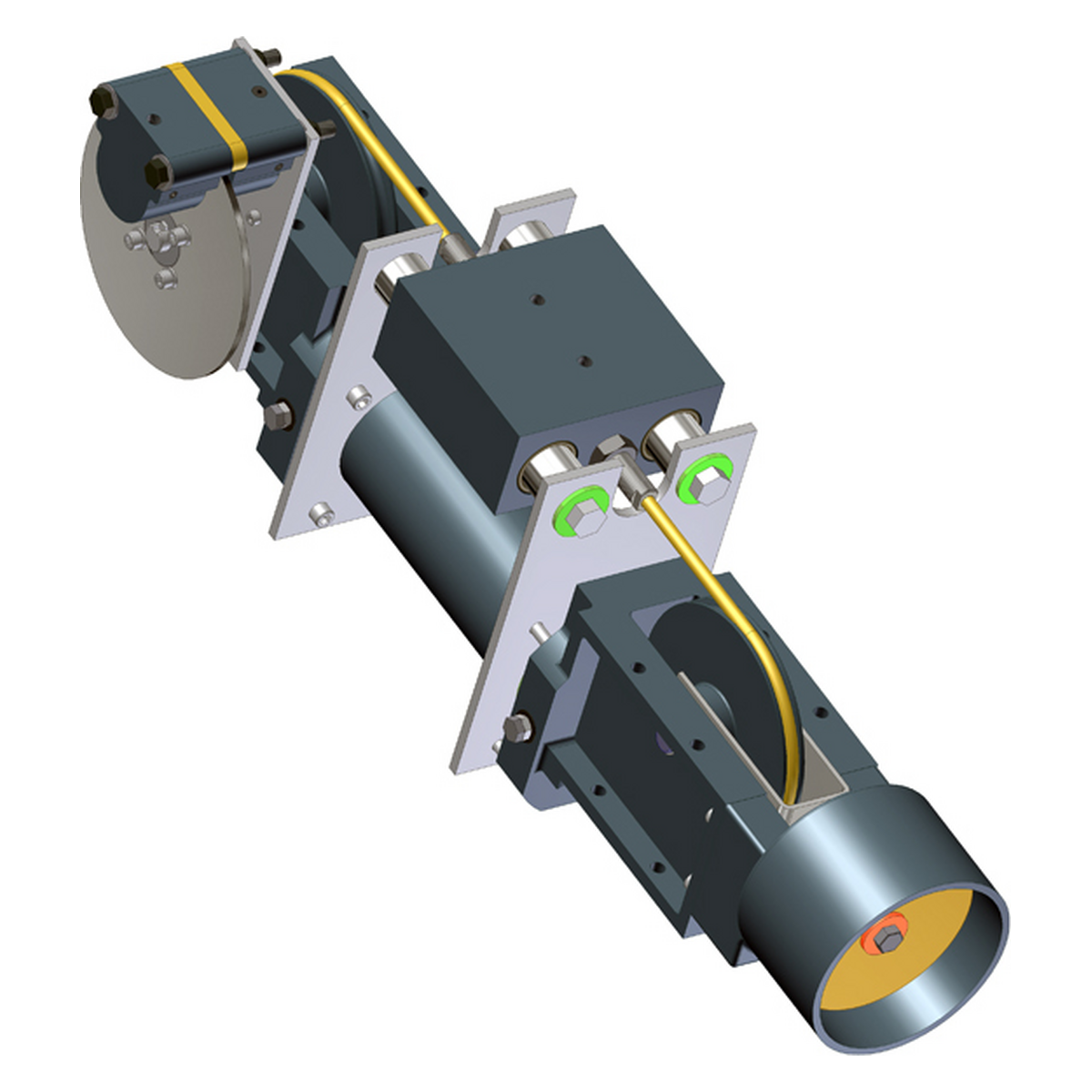

Guided Cable Cylinder, double acting with power stroke in both directions, 3.0 inch bore.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • 1.25 inch chrome plated guide rods
  • Igus® guide bearings

Attributes

Model #
20% Rule, lbs. 840
Bore, in. 3.0
Cable Nylon O.D., in. 5/16
Cable Wire Dia., in. 3/16
Eff. Area, in.sq 6.99
Force@100 PSI, lbs. 699
Max. Stroke Length, in. 120
Option(s) Tensioner, Brake, Switches
Strand Config 7 x 19
Tensile Strength, lbs. 4200
