1401-0810

Model: GCC1401TBRS

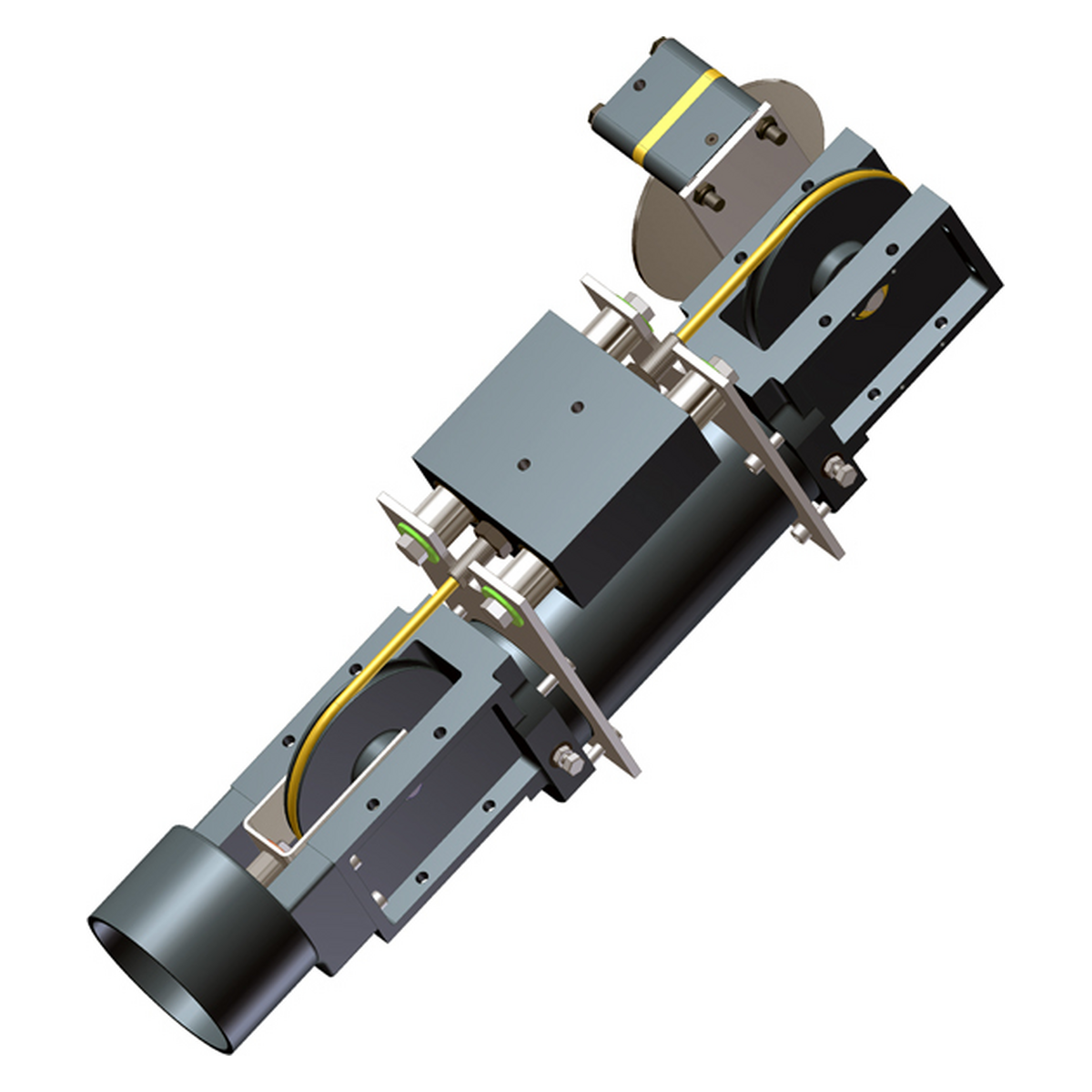

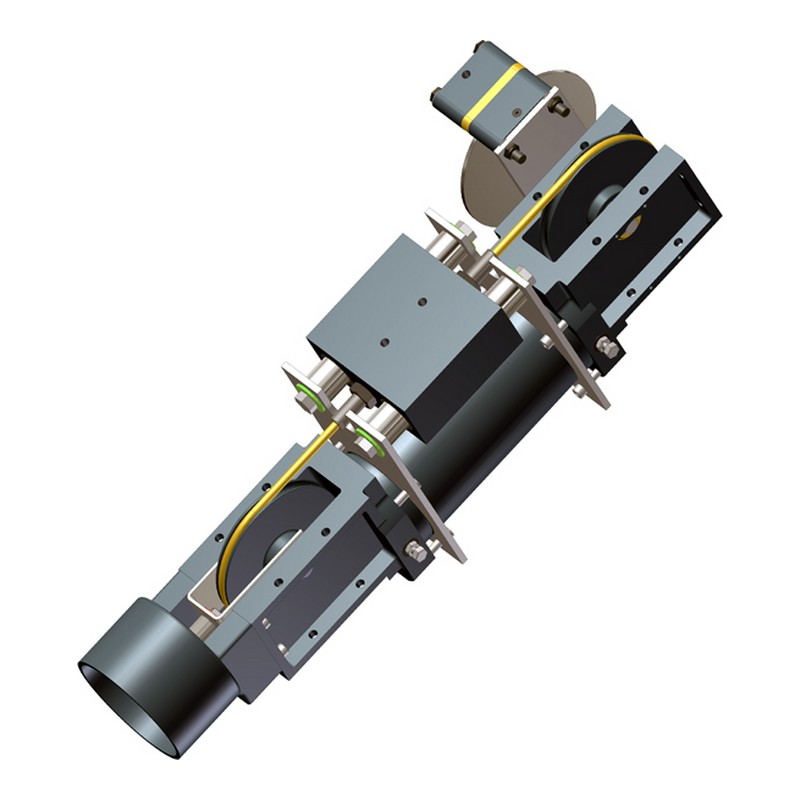

Guided Cable Cylinder, double acting with power stroke in both directions, 4.0 inch bore w/ automatic tensioner, caliper disc brake and (2) normally open reed switches.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • 1.25 inch chrome plated guide rods
  • Igus® guide bearings

Attributes

Bore, in.4.0
Option(s)Tensioner, Brake, Switches
Force@100 PSI, lbs.1249
Eff. Area, in.212.49
Max. Stroke Length*, in.120
Cable Wire Dia., in.3/16
Cable Nylon O.D., in.5/16
Strand Config7 x 19
Tensile Strength, lbs.4200
20% Rule, lbs.840
