1070-0852
Model: GCC1070RS

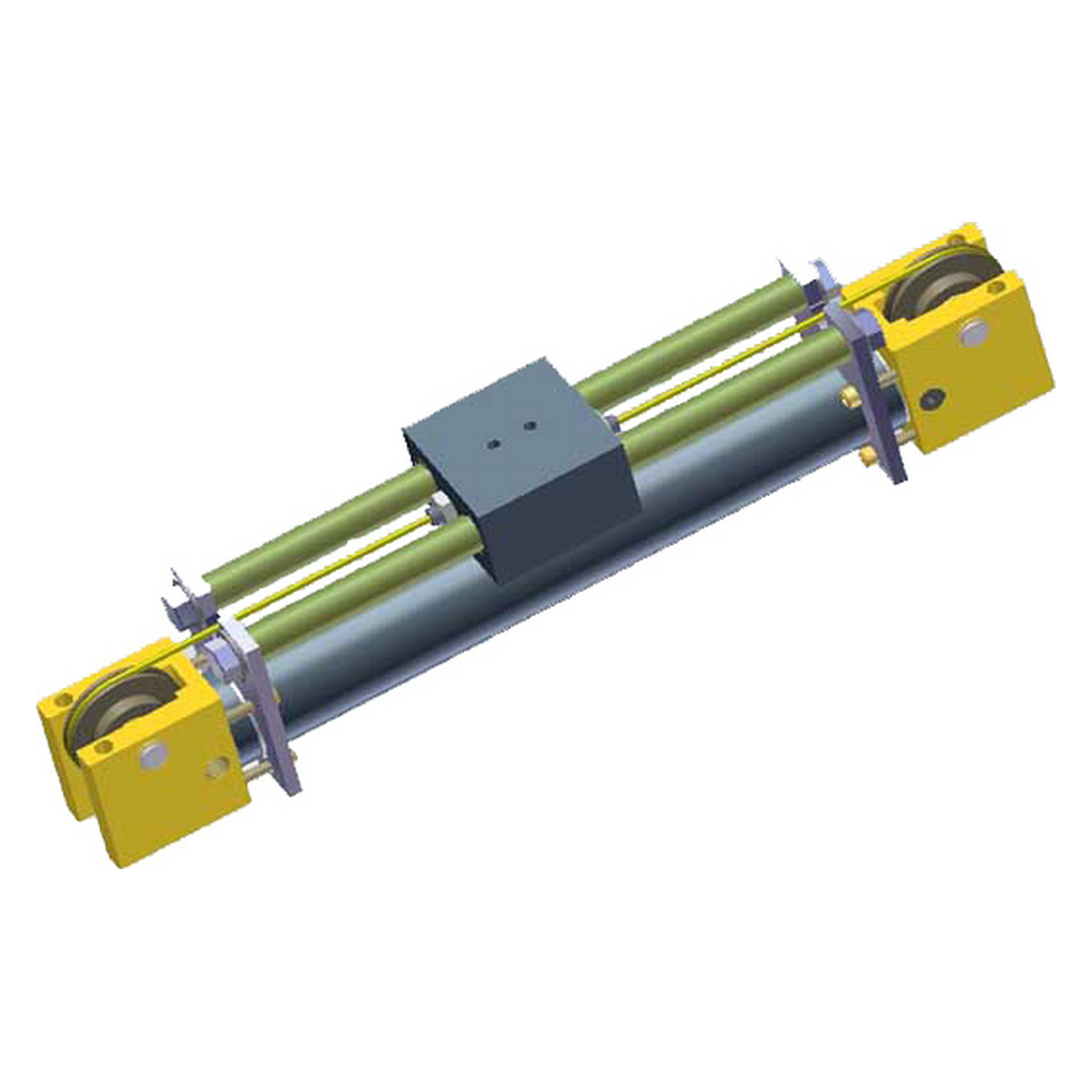

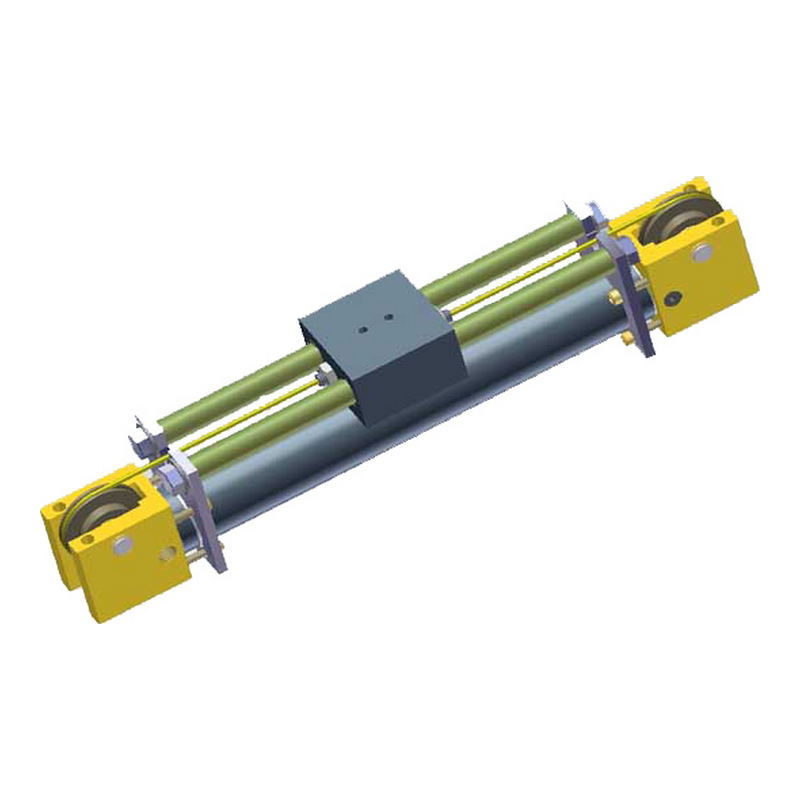

Guided Cable Cylinder, double acting with power stroke in both directions, 3/4 inch bore w/ (2) normally open reed switches.
- Maximum pressure: 100 PSI
- Operating temperature range: 20º to 140º F.
- Fixed orifice cushions
- 1/2 inch chrome plated guide rods
- Igus® guide bearings
Attributes
| Model | GCC1070RS |
| 20% Rule, lbs. | 54 |
| Bore, in. | 3/4 |
| Cable Nylon O.D., in. | 3/32 |
| Cable Wire Dia., in. | 3/64 |
| Eff. Area, in.sq | .44 |
| Force@100 PSI, lbs. | 44 |
| Max. Stroke Length, in. | 60 |
| Option(s) | Reed Switches |
| Strand Config | 7 x 7 |
| Tensile Strength, lbs. | 270 |
Click image to enlarge
