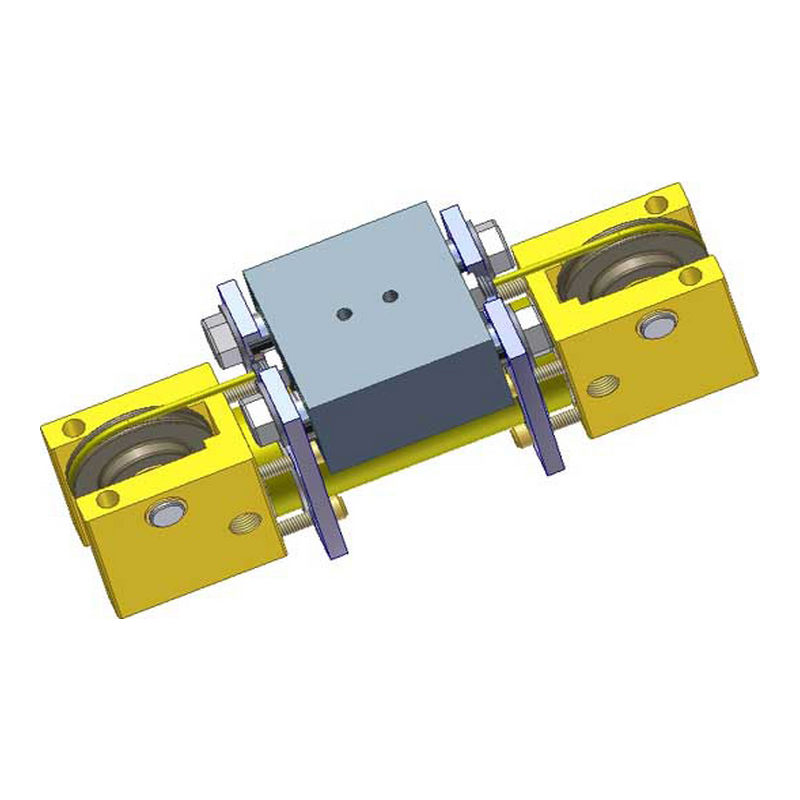

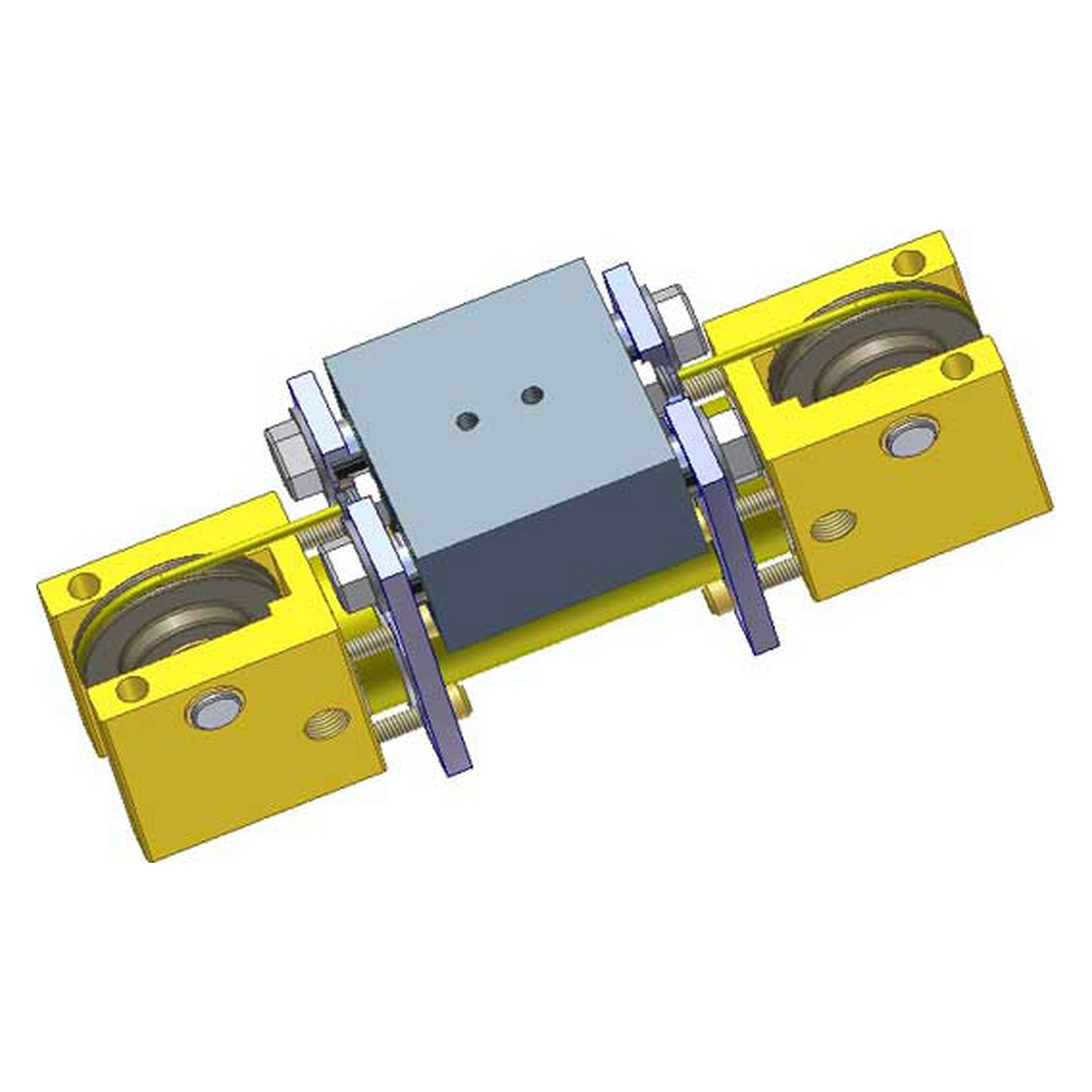

Model: GCC1101RS

Guided Cable Cylinder, double acting with power stroke in both directions, 1 inch bore w/ (2) normally open reed switches.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Fixed orifice cushions
  • 1/2 inch chrome plated guide rods
  • Igus® guide bearings


Model GCC1101RS
20% Rule, lbs. 54
Bore, in. 1.0
Cable Nylon O.D., in. 3/32
Cable Wire Dia., in. 3/64
Eff. Area, in.sq .78
Force@100 PSI, lbs. 78
Max. Stroke Length, in. 60
Option(s) Reed Switches
Strand Config 7 x 7
Tensile Strength, lbs. 270
