1151-0800

Model: GCC1151

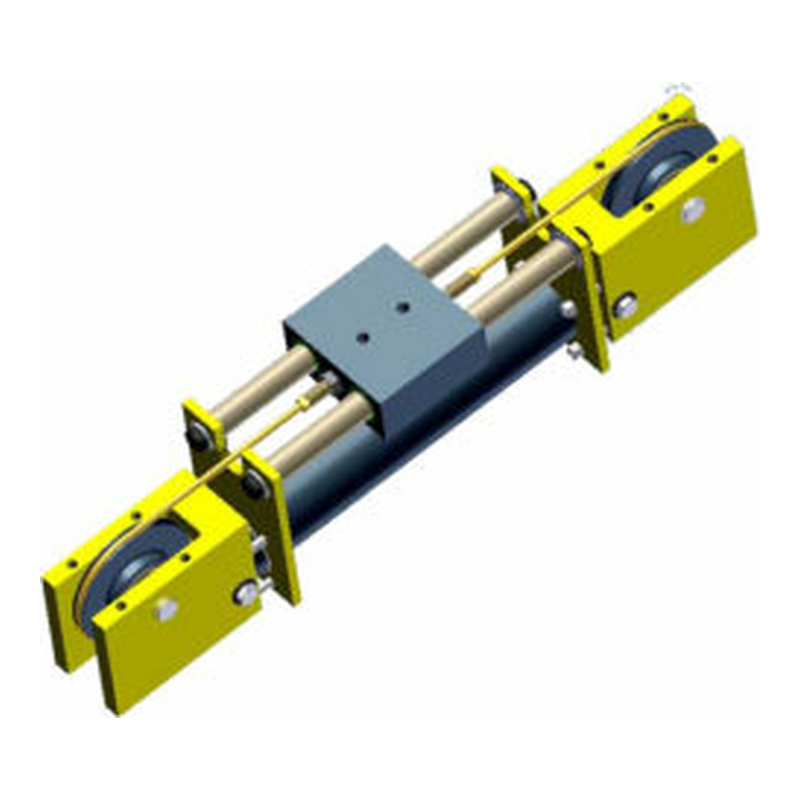

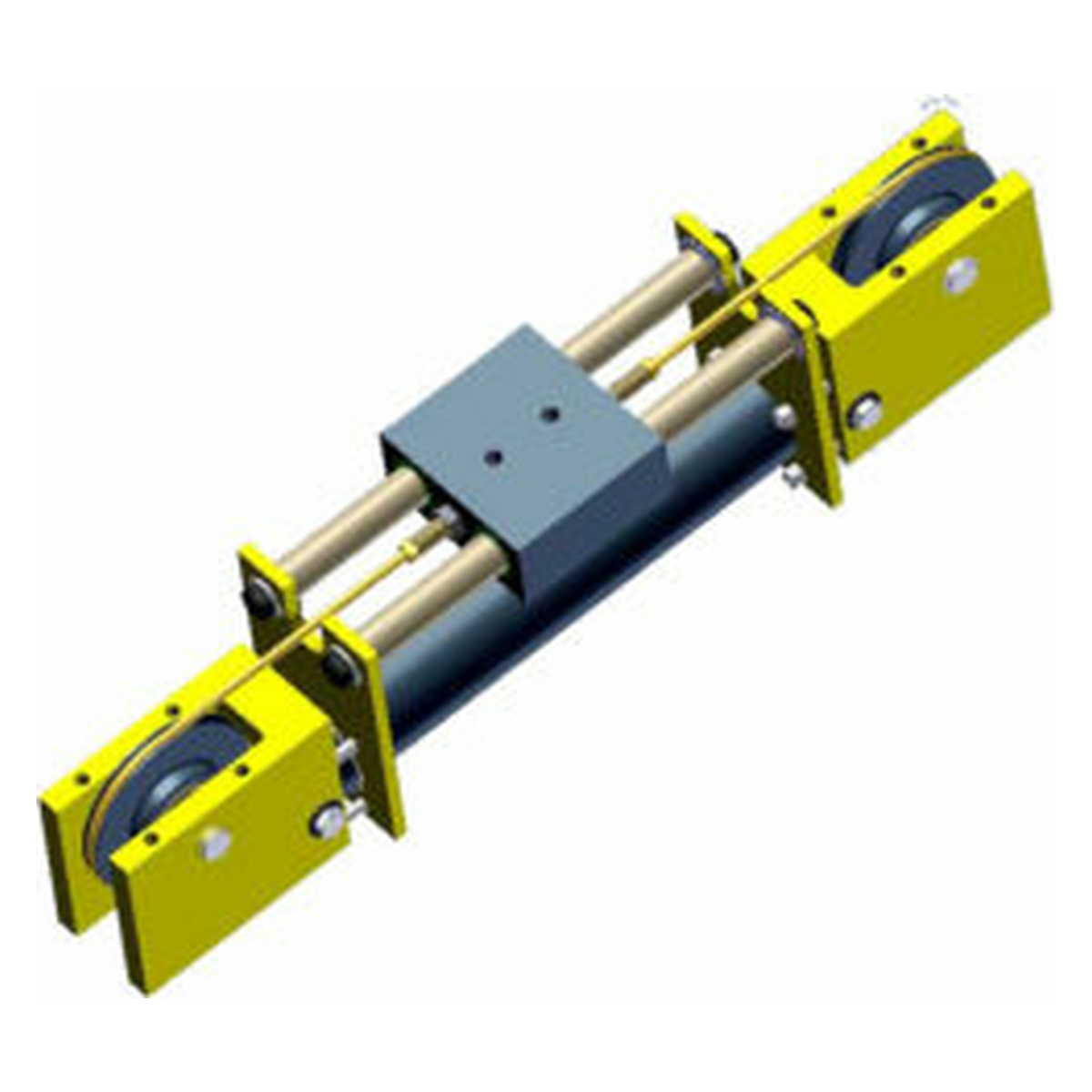

Guided Cable Cylinder, double acting with power stroke in both directions, 1.5 inch bore.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • 3/4 inch chrome plated guide rods
  • Igus® guide bearings

Attributes

Model GCC1151
20% Rule, lbs. 184
Bore, in. 1.5
Cable Nylon O.D., in. 3/16
Cable Wire Dia., in. 3/32
Eff. Area, in.sq 1.74
Force@100 PSI, lbs. 174
Max. Stroke Length, in. 100
Option(s) None
Strand Config 7 x 19
Tensile Strength, lbs. 920
Click image to enlarge
