1151-0801
Model: GCC1151RS

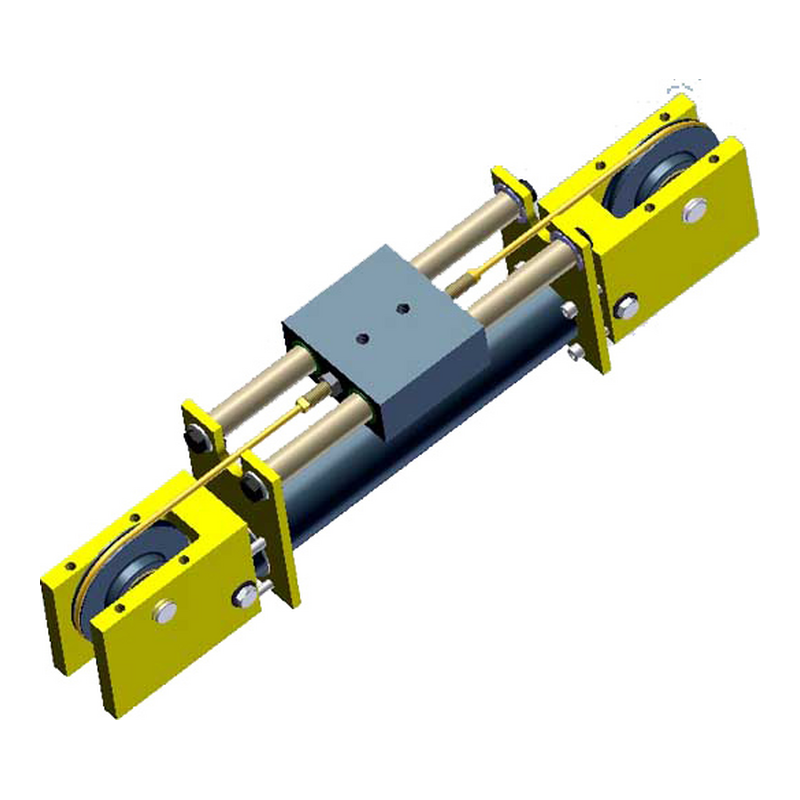

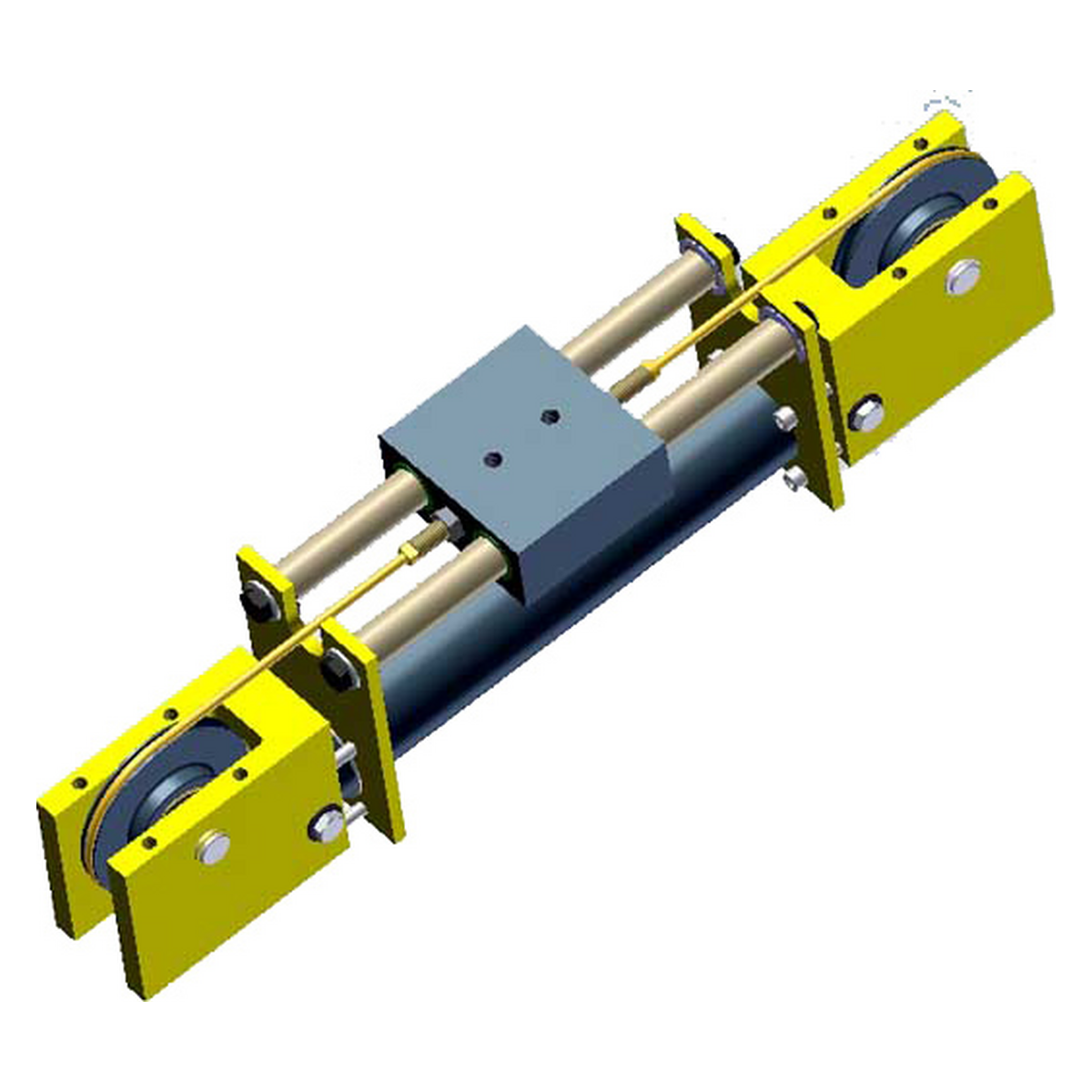

Guided Cable Cylinder, double acting with power stroke in both directions, 1.5 inch bore w/ (2) normally open reed switches.
- Maximum pressure: 100 PSI
- Operating temperature range: 20º to 140º F.
- Adjustable cushions
- 3/4 inch chrome plated guide rods
- Igus® guide bearings
Attributes
Model | GCC1151RS |
20% Rule, lbs. | 184 |
Bore, in. | 1.5 |
Cable Nylon O.D., in. | 3/16 |
Cable Wire Dia., in. | 3/32 |
Eff. Area, in.sq | 1.74 |
Force@100 PSI, lbs. | 174 |
Max. Stroke Length, in. | 100 |
Option(s) | Reed Switches |
Strand Config | 7 x 19 |
Tensile Strength, lbs. | 920 |
