1203-0804

Model: GCC1203RS

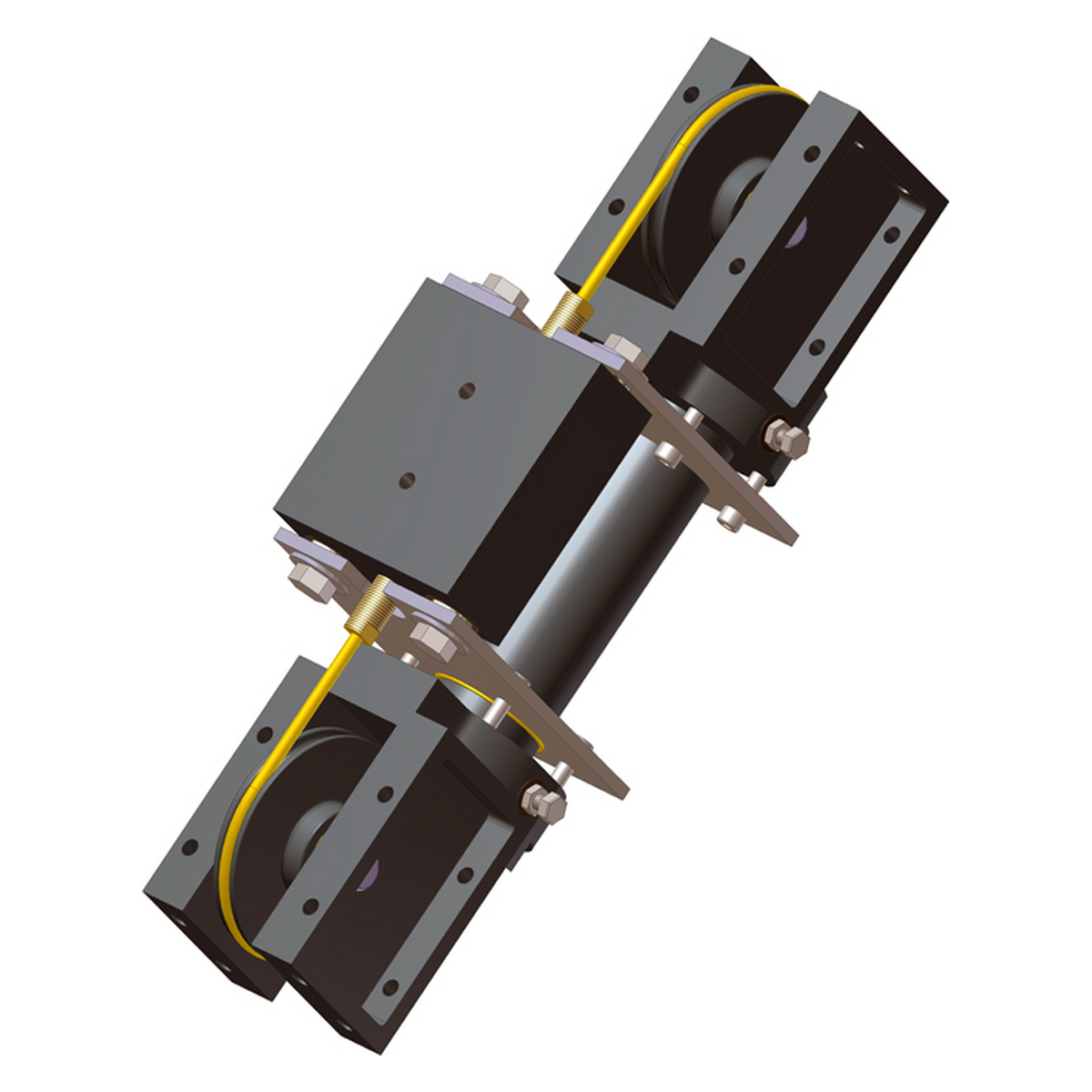

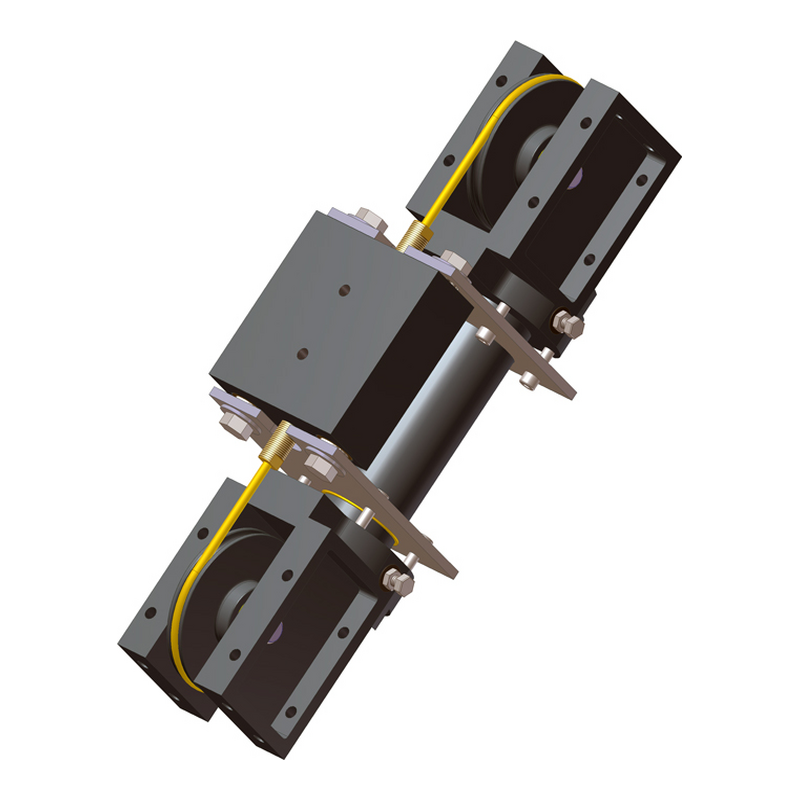

Guided Cable Cylinder, double acting with power stroke in both directions, 2.0 inch bore w/ (2) normally open reed switches.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • 7/8 inch chrome plated guide rods
  • Igus® guide bearings

Attributes

Model GCC1203RS
20% Rule, lbs. 400
Bore, in. 2.0
Cable Nylon O.D., in. 1/4
Cable Wire Dia., in. 1/8
Eff. Area, in.sq 3.09
Force@100 PSI, lbs. 309
Max. Stroke Length, in. 100
Option(s) Reed Switches
Strand Config 7 x 19
Tensile Strength, lbs. 2000
Click image to enlarge
