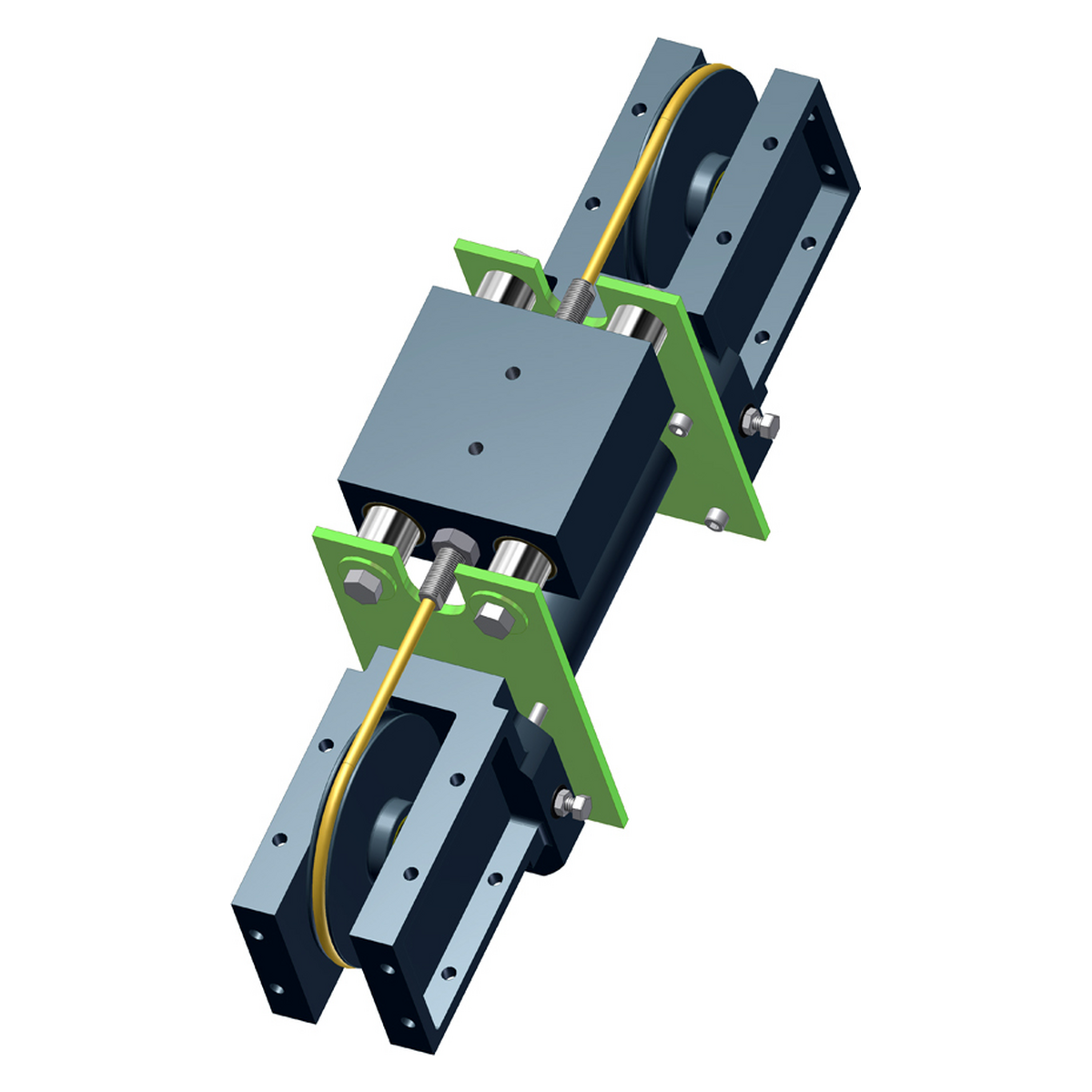

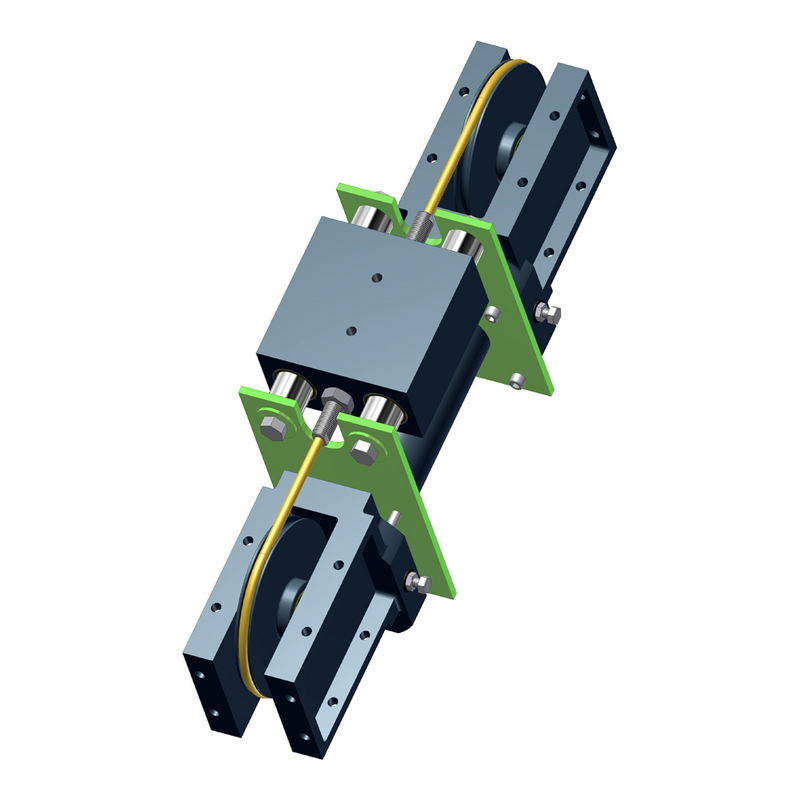

Guided Cable Cylinder, double acting with power stroke in both directions, 2.0 inch bore heavy duty.
- Maximum pressure: 500 PSI
- Operating temperature range: 20º to 140º F.
- Adjustable cushions
- 1.25 inch chrome plated guide rods
- Igus® guide bearings
|Option(s)||500 PSI, Heavy Duty|
|Force@100 PSI, lbs.||309|
|Eff. Area, in.2||3.09|
|Max. Stroke Length*, in.||120|
|Cable Wire Dia., in.||3/16|
|Cable Nylon O.D., in.||5/16|
|Strand Config||7 x 19|
|Tensile Strength, lbs.||4200|
|20% Rule, lbs.||840|
