1251-0812

Model: GCC1251M

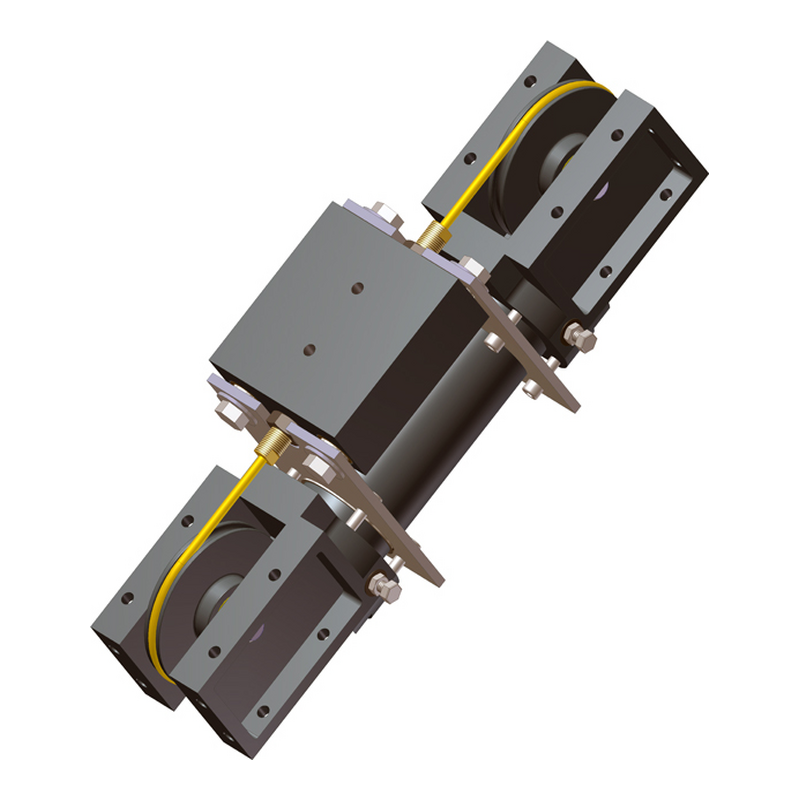

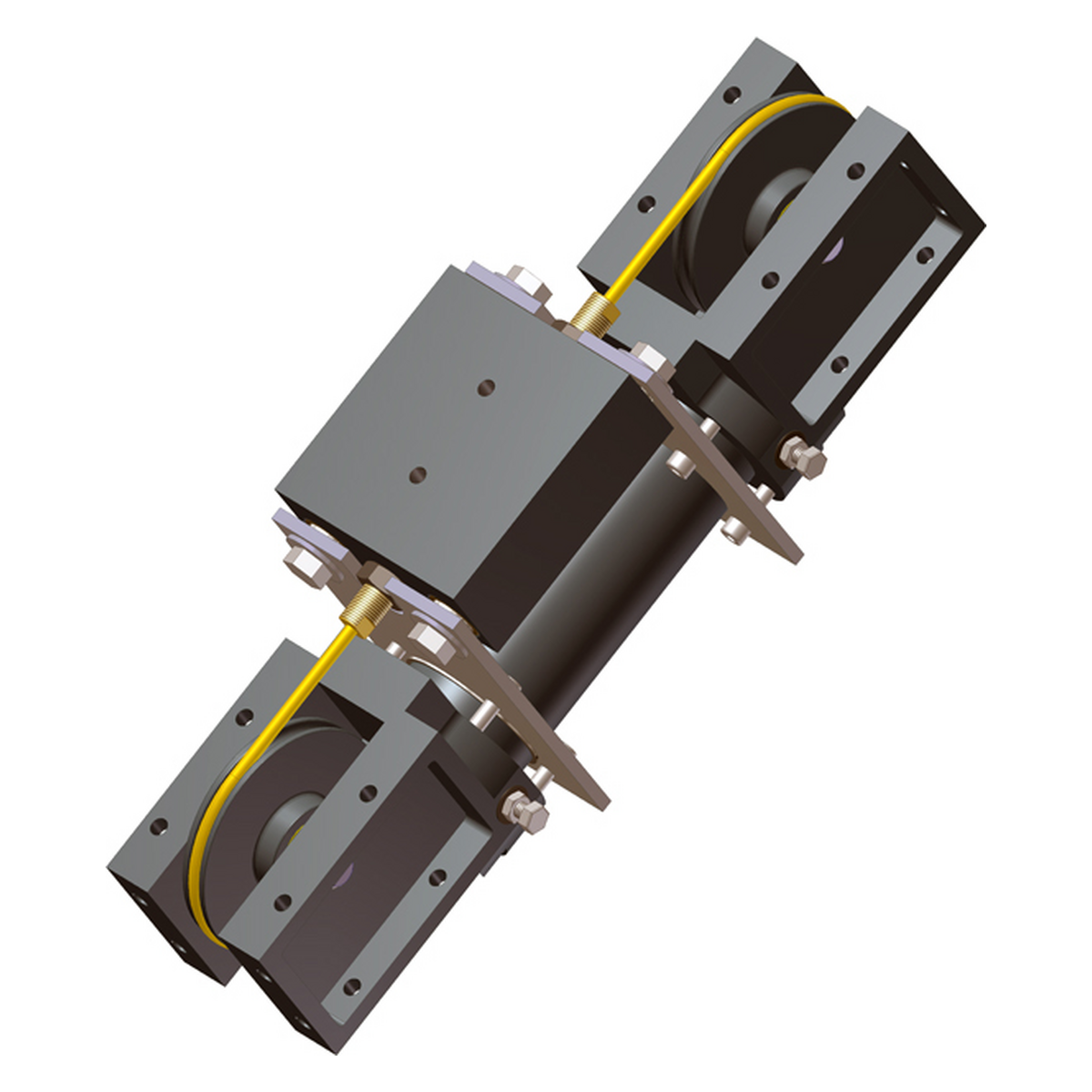

Guided Cable Cylinder, double acting with power stroke in both directions, 2.5 inch bore w/ piston magnet.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • 7/8 inch chrome plated guide rods
  • Igus® guide bearings

Attributes

Bore, in.2.5
Option(s)Piston Magnet
Force@100 PSI, lbs.486
Eff. Area, in.24.86
Max. Stroke Length*, in.100
Cable Wire Dia., in.1/8
Cable Nylon O.D., in.1/4
Strand Config7 x 19
Tensile Strength, lbs.2000
20% Rule, lbs.400
Click image to enlarge
