1301-0800

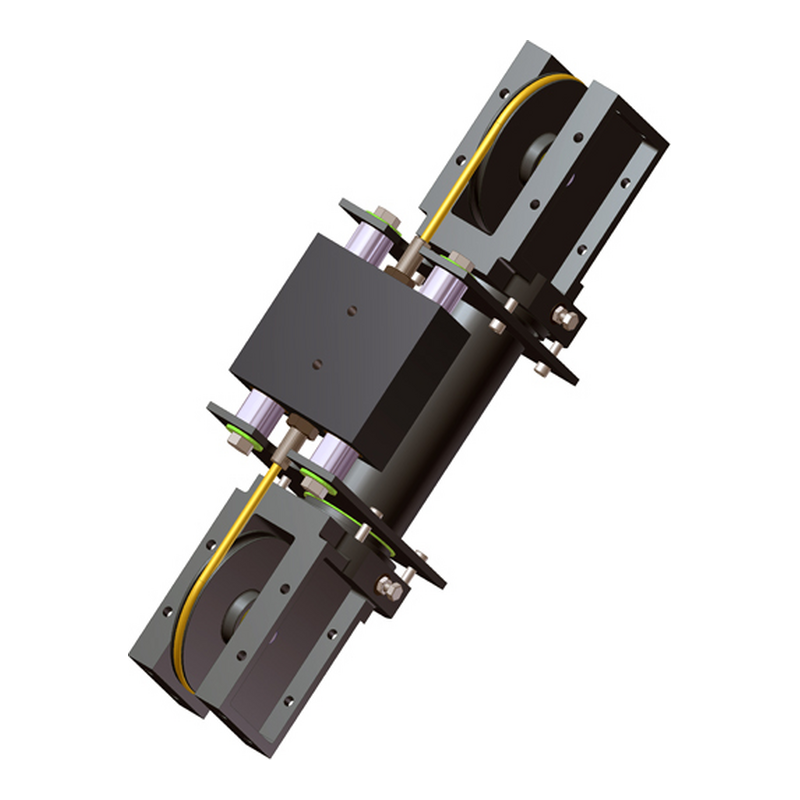

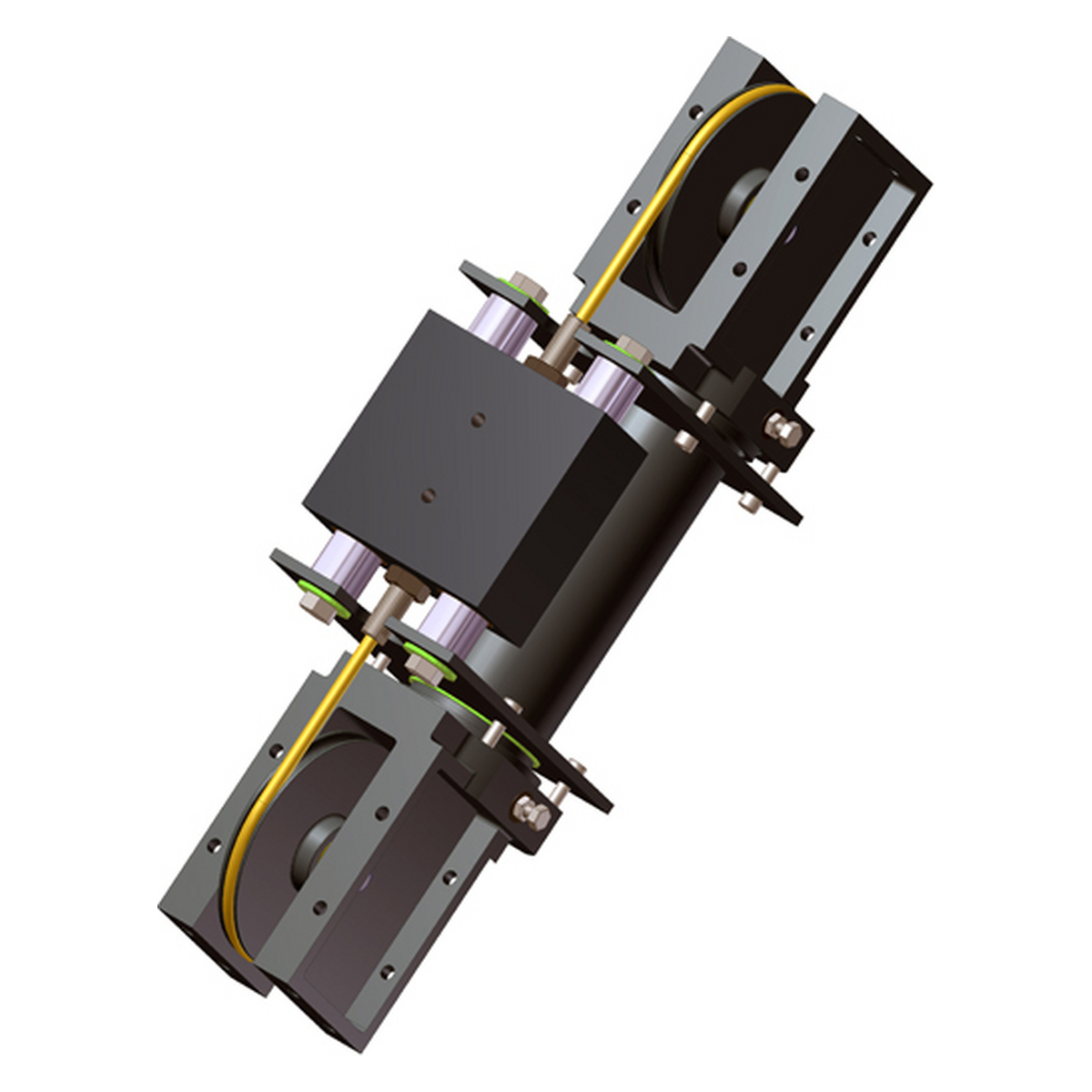

Model: GCC1301
Guided Cable Cylinder, double acting with power stroke in both directions, 3.0 inch bore.
- Maximum pressure: 100 PSI
- Operating temperature range: 20º to 140º F.
- Adjustable cushions
- 1.25 inch chrome plated guide rods
- Igus® guide bearings
Attributes
| Model | GCC1301 |
| 20% Rule, lbs. | 840 |
| Bore, in. | 3.0 |
| Cable Nylon O.D., in. | 5/16 |
| Cable Wire Dia., in. | 3/16 |
| Eff. Area, in.sq | 6.99 |
| Force@100 PSI, lbs. | 699 |
| Max. Stroke Length, in. | 120 |
| Option(s) | None |
| Strand Config | 7 x 19 |
| Tensile Strength, lbs. | 4200 |
Click image to enlarge
