1301-0803

GCC1301RS

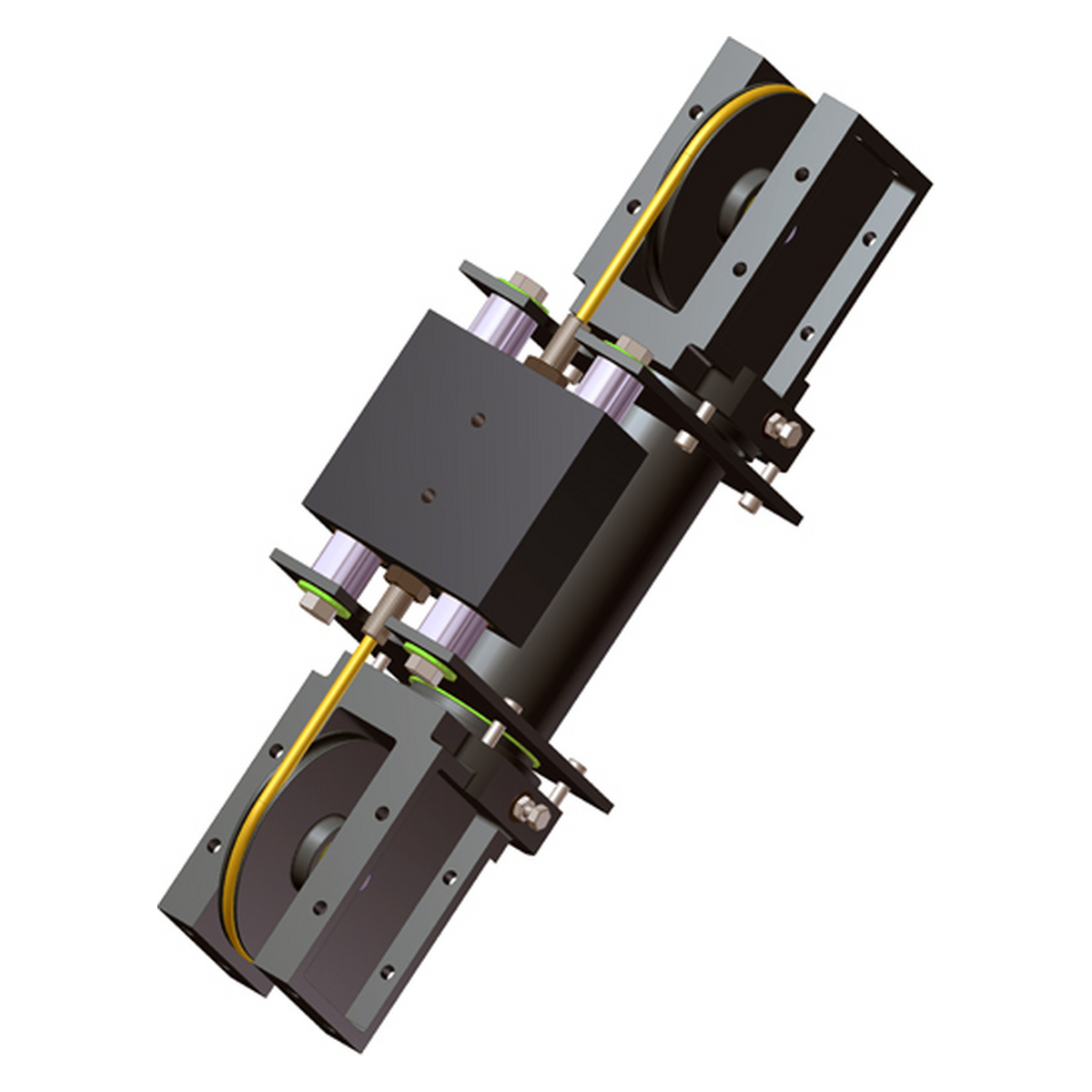

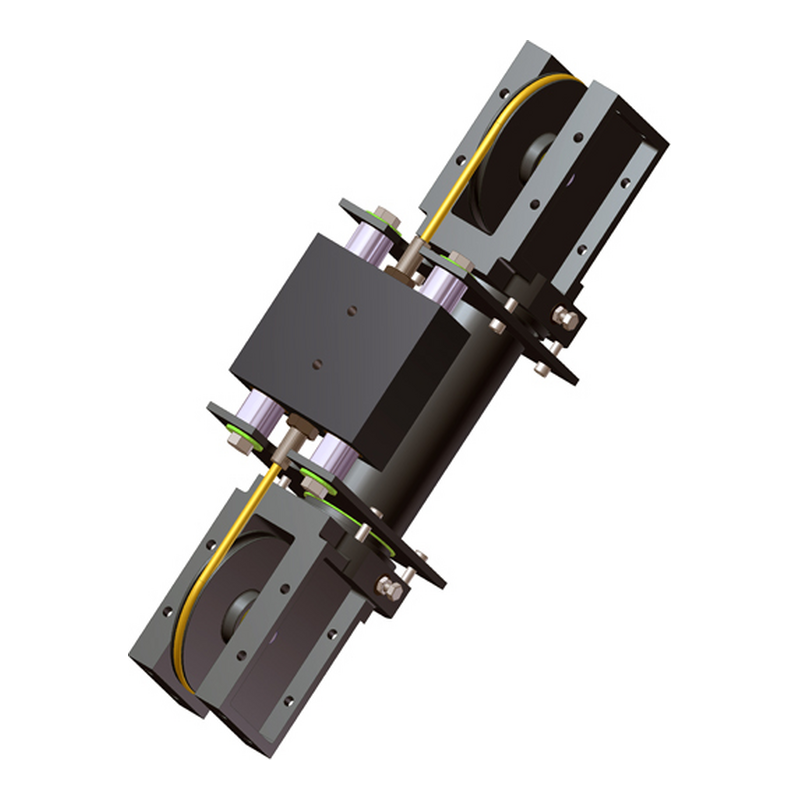

Guided Cable Cylinder, double acting with power stroke in both directions, 3.0 inch bore w/ (2) normally open reed switches.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • 1.25 inch chrome plated guide rods
  • Igus® guide bearings

Attributes

Bore, in.3.0
Option(s)Reed Switches
Force@100 PSI, lbs.699
Eff. Area, in.26.99
Max. Stroke Length*, in.120
Cable Wire Dia., in.3/16
Cable Nylon O.D., in.5/16
Strand Config7 x 19
Tensile Strength, lbs.4200
20% Rule, lbs.840
