2025-00AB-04.00
Model: OVP25MS

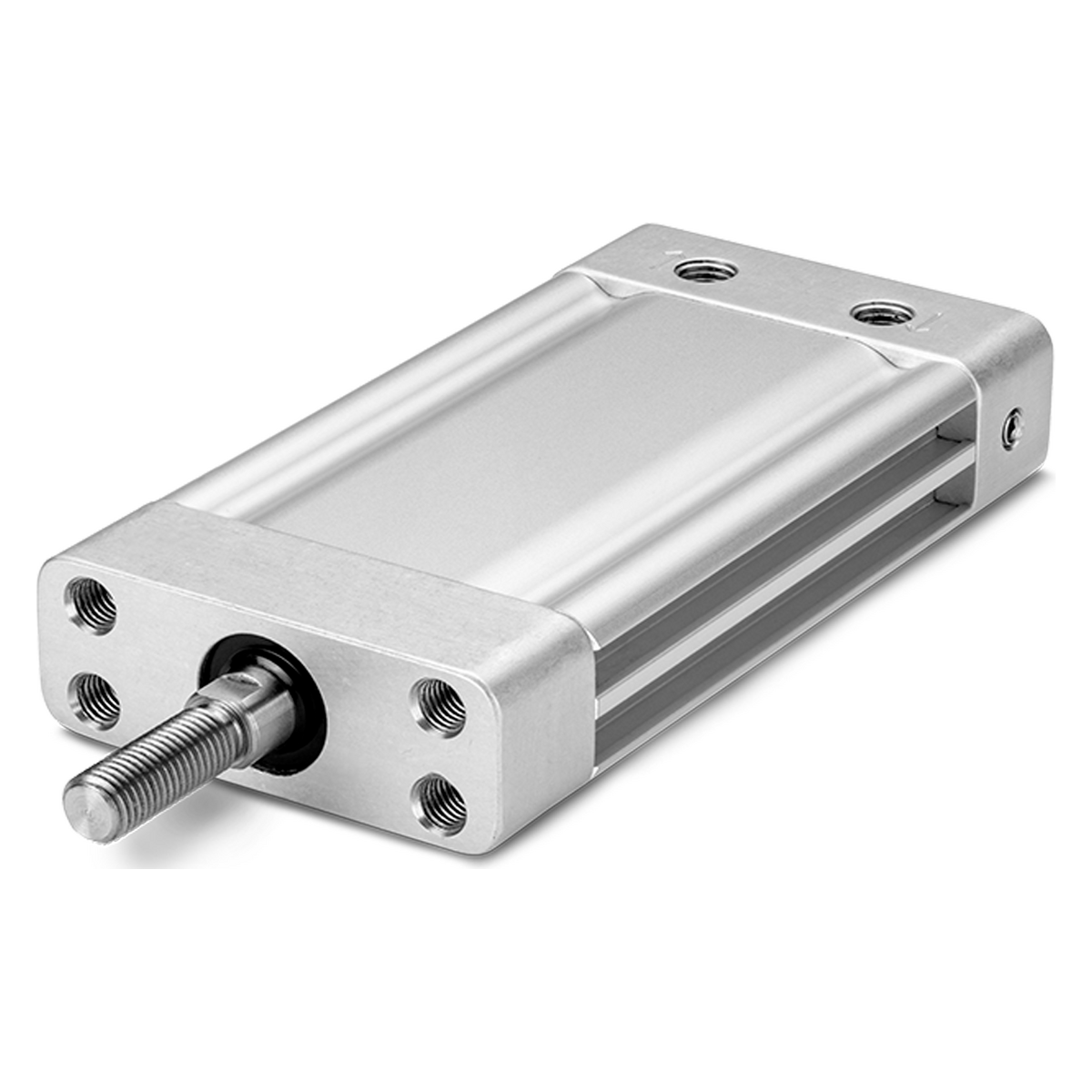

OVLPRO® Low Profile Rod Cylinder, 25mm bore, Male Threaded Rod, Side Ported, 4.00 in. Stroke
Estimated Lead-Time: 5-7 business days ARO @ Qty < 4 pcs.
| Cylinder Type | Rod |
| Cylinder Style | Oval Low Profile |
| Actuation | Double |
| Bore Diameter (mm) | 25 |
| Stroke Length (in) | 4 |
| Body Construction | Anodized Aluminum |
| Rod Diameter (in) | 0.375 |
| Rod Type | Imperial Single |
| Rod Thread | Male Fine |
| Rod Thread | 5/16-24 UNF-2A |
| Rod Material | Hard Chrome Plated Steel |
| Rod Anti-Rotation | Yes |
| Mounting Style | Multi |
| Seal Material | Buna-N |
| Rod Seal | Molythane® w/Wiper |
| Rod Bearing | Bronze Oil Filled |
| Port Thread | Imperial |
| Port location | Side, Single End |
| Sensor Magnet | Yes |
| Brand | OVLPRO |
| Cushions | Fixed |
| Made in USA | Yes |
| Port Size | 1/16-27 NPTF |
| Pressure Maximum (psi) | 200 |
