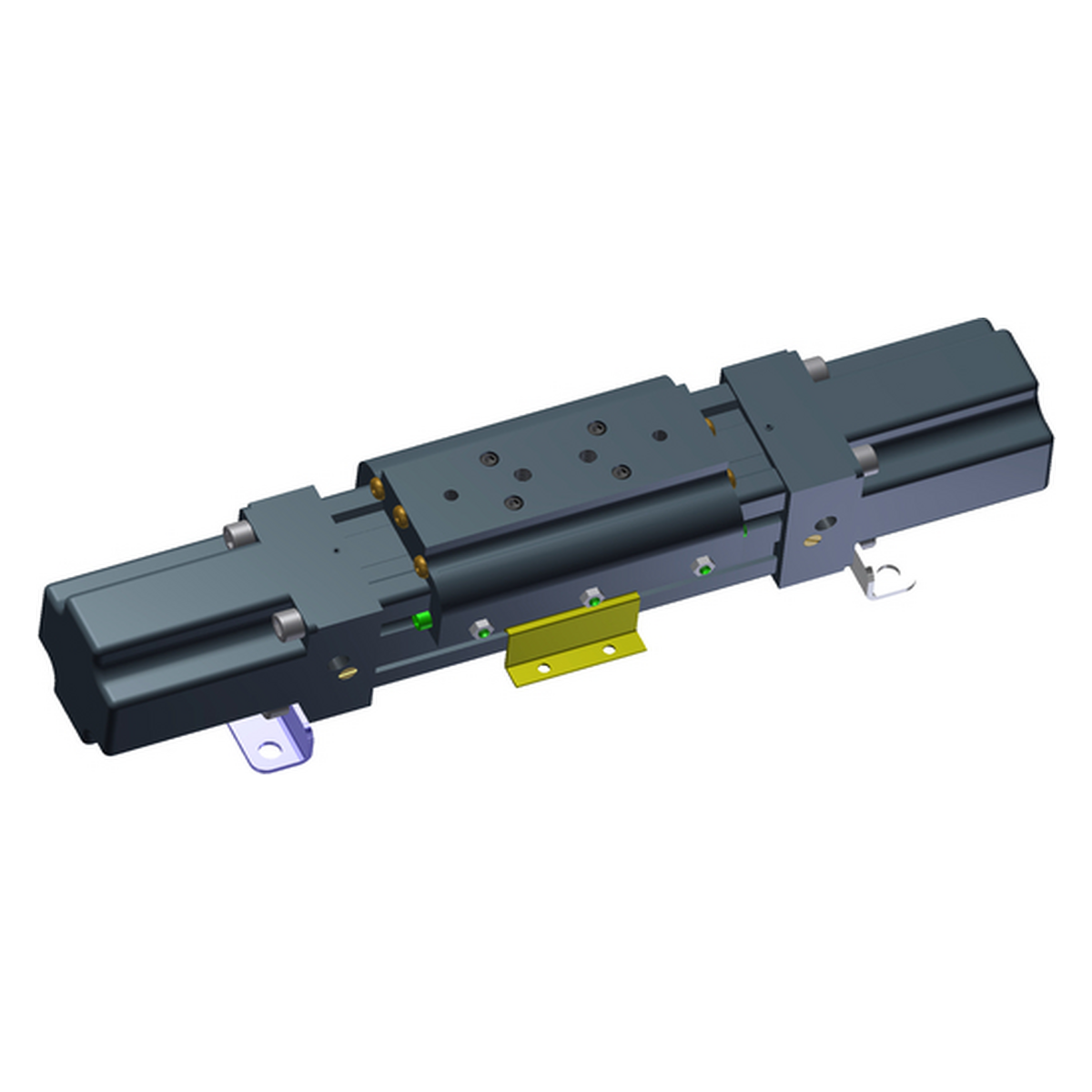

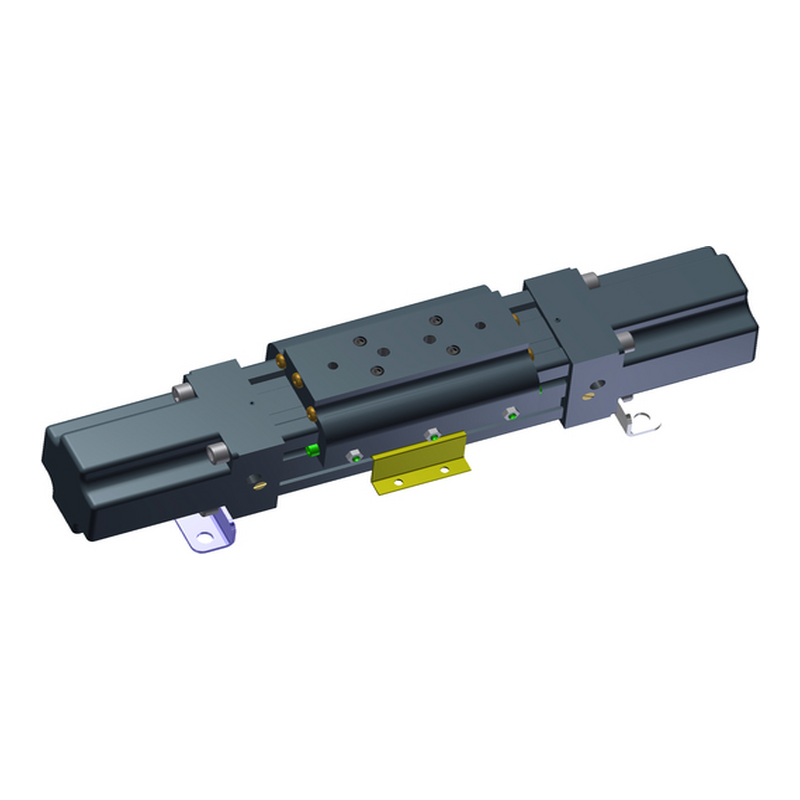

pneU-SA® Rodless Cylinders, double acting with power stroke in both directions, 1.25 in. (32mm) bore.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • Foot mounts
  • Nylatron® GS guide bearings - ideal for improved load bearing capability


Bore, in.1.25
Option(s)Switches N.O., Tube Supports
Force@100 PSI, lbs.126
Eff. Area, in.21.26
Max. Stroke Length*, in.158
Load, lbs.120
Ms Radial Load, in. lbs.75
M Long. Load, in. lbs.290
Mv Axial Load, in. lbs.130
Approx. WeightBase 6 lbs. + .35 lbs./in./Stk
